JUMO GmbH & Co. KG 701055

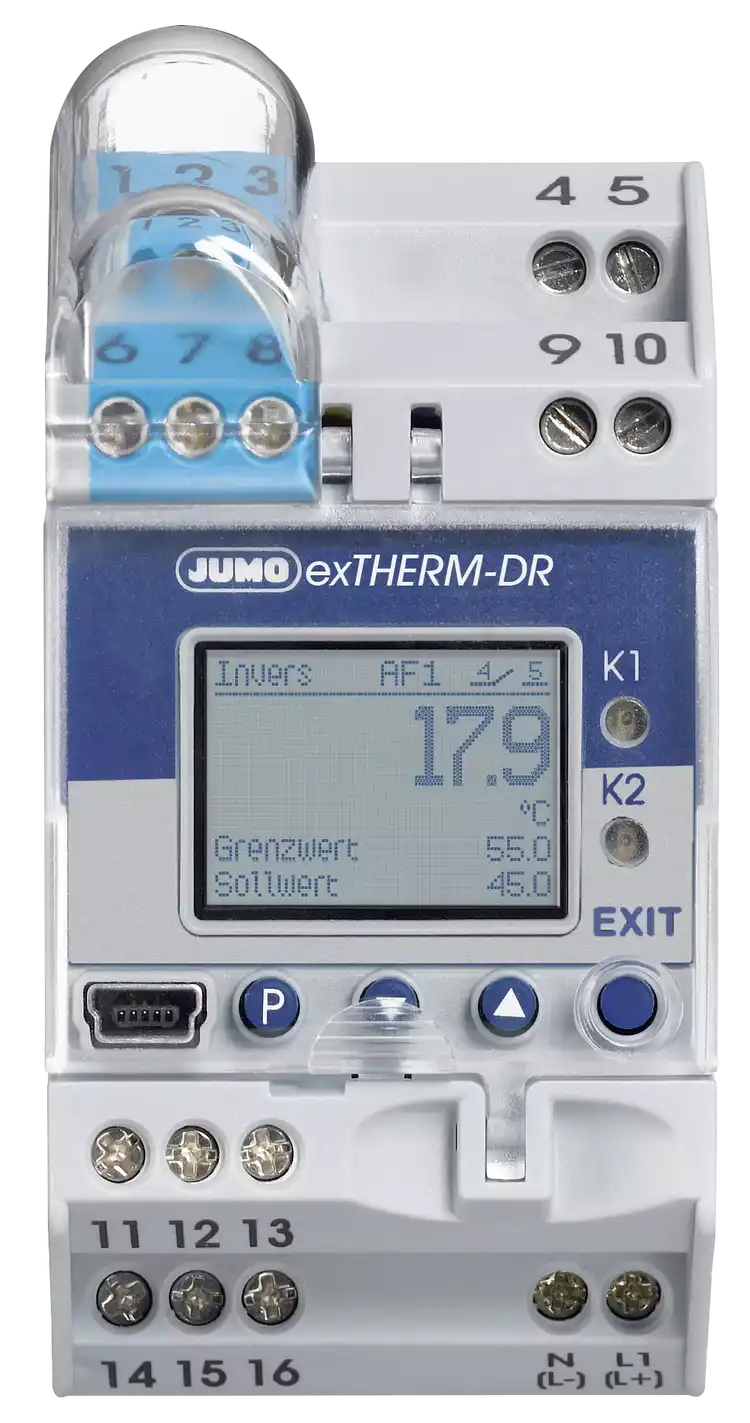

JUMO exTHERM-DR
Технические характеристики
| Measuring inputs | 1 universal analog input for RTD temperature probe; thermocouple or current 4 to 20 mA; 1 digital input for potential-free contact |
|---|---|
| Outputs | 1 analog output can be configured as actual value output, setpoint value output, or logic output 0/10 V; 1 relay output limit value changeover contact; 1 relay output controller; changeover contact, with fuse cut-out |
| Alarms | Limit value output (relay) for alarm indication |
| Display | Black and white LCD display with backlight |
| Protection type | IP20 |
| Mounting | Mounting rail |
| Напряжение питания | AC/DC 20 to 30 V, 48 to 63 Hz; AC 110 to 240 V +10/-15 %, 48 to 63 Hz |
| Format | 87.5 mm × 45 mm × 104.8 mm |
| Connections | Screw terminals |
| Approvals | ATEX; IECEx |
