JUMO GmbH & Co. KG 701060

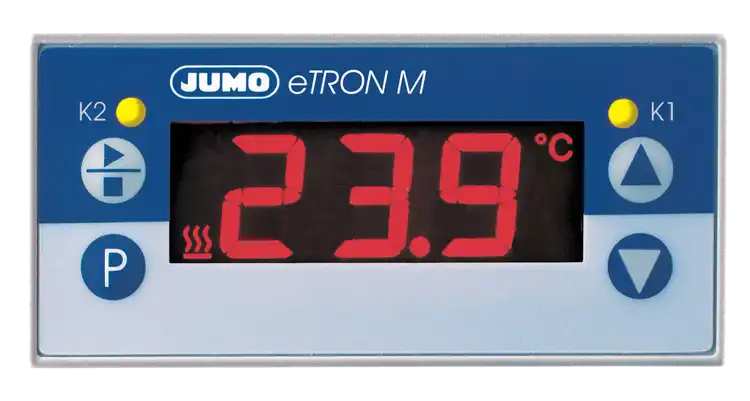

JUMO eTRON M
Технические характеристики
| Measuring inputs | 1 analog input for: Pt100, Pt1000, or KTY2x-6 in two-wire circuit (configurable) or Fe-CuNi (J, L) and NiCr-Ni (K) thermocouples (configurable) or current 0(4) to 20 mA (configurable) or voltage 0 to 10 V |
|---|---|
| Display | Three-digit backlit LCD display with 13 mm digit height and special characters for °C, °F, h, min, s; switching position indicators for defrosting or heating phase |
| Alarms | Messages in the display or via the second relay output: lower/upper alarm limit temperature; service interval; timer message |
| Mounting | Panel mounting |
| Format | 76 mm × 36 mm × 56 mm |
| Connections | Screw terminals |
| Outputs | 1 changeover contact 10 A/250 V or 2 normally open contacts 5 A/250 V |
| Protection type | At the front IP65; at the rear IP20 |
| Напряжение питания | AC 230 V +10/-15 %, 48 to 63 Hz; AC 115 V +10/-15 %, 48 to 63 Hz; DC 12 to 24 V +15/-15 %, AC 24 V +15/-15 %, 48 to 63 Hz |
| Special features | Integrated defrosting function; operating hours counter; setup program |
| Approvals | Metrological certificate; cULus |
