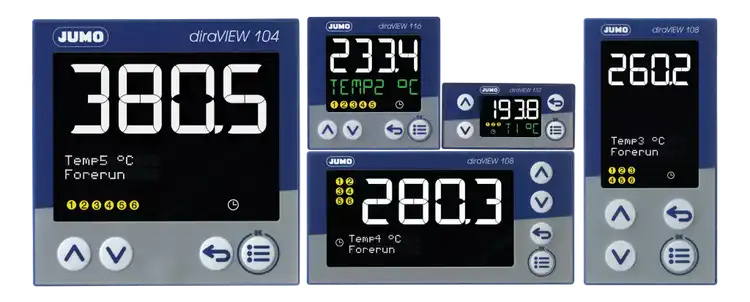

JUMO diraVIEW 104/108/116/132
Технические характеристики
| Display | 18-segment LCD display, display elements for switch position of the outputs and timer, pixel matrix LCD display (only type diraVIEW 108 and diraVIEW 104) |
|---|---|
| Inputs | 1 user configurable analog input for RTD temperature probes, thermocouples, current 0(4) to 20 mA, voltage 0(2) to 10 V, resistance transmitters, resistance/potentiometers |
| Outputs | 701510: 1 relay 3 A/230 V AC (normally open contact), 1 logic output 0/14 V (alternatively to digital input 1); 701511: 2 relay 3 A/230 V AC (normally open contact), 1 logic output 0/14 V (alternatively to digital input 1); optionally: analog output, relay; 2 relay 3 A/230 V AC (normally open contact), 1 logic output 0/14 V (alternatively to digital input 1); optionally: analog output, relay, PhotoMOS® relay |
| Digital inputs | 2 digital inputs for potential-free contacts (digital input 1 alternative to logic output) |
| Calibration accuracy | 0.1 %; 0.25 % |
| Galvanic isolation | 3000 V (measurement input for supply) |
| Special features | Math and logic functions, ST code programming, min/max value memory and display, hold function, service and operating hours counter, tare function for weighing applications |
| Formats | 132: 48 × 24 mm; 116: 48 × 48 mm; 108H: 48 × 96 mm; 108Q: 96 × 48 mm; 104: 96 × 96 mm |
| Installation | Panel cut-out or DIN rail adapter |
| Interfaces | Setup interface (USB powered), RS485 interface (optional) |
| Рабочая температура | -10 to +55 °C |
| Alarms | 4 × limit value monitoring function |
| Connections | Spring-cage terminals, PUSH IN terminal technology |
| Protection type | IP65 |
| Напряжение питания | AC/DC 20 to 30 V, AC 110 to 240 V |
