JUMO GmbH & Co. KG 701540

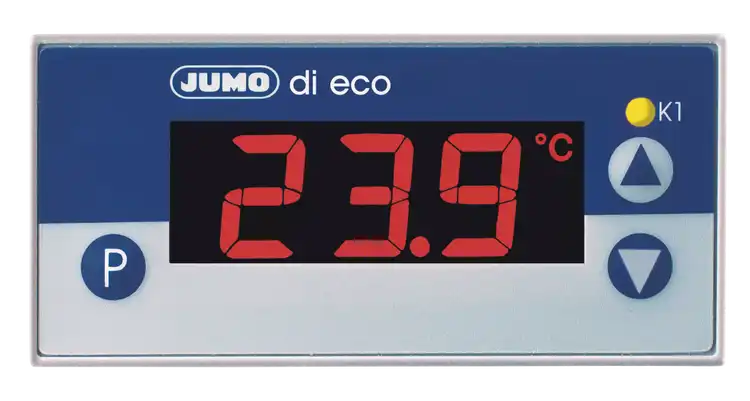

JUMO di eco
Технические характеристики
| Display | Three-figure segment display (red, figure height 13 mm) |
|---|---|
| Measurement input | Pt100/Pt1000/KTY2X-6; thermocouples "J", "L", "K"; 0(4) to 20 mA; 0 to 10 V |
| Output | Relay (10 A/250 V) |
| Calibration accuracy | 0.1 %; 0.4 % |
| Galvanic isolation | None |
| Special features | Switch-on delay and alarm suppression are user configurable, sensor-related hardware version |
| Configuration | Via PC interface or keys on the front |
| Approval | cULus |
| Protection type | At the front IP65, at the rear IP20 |
| Напряжение питания | DC 24 V, AC 110 V/230 V |
| Рабочая температура | 0 to 55 °C |
| Installation | In the panel cut-out 76 × 36 mm |
