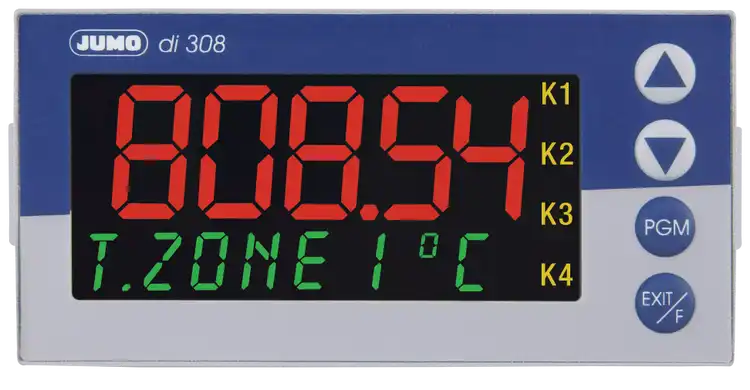

JUMO GmbH & Co. KG 701550
JUMO di 308
Технические характеристики
| Display | Five-figure LCD display (two-line, figure height 18/7 mm), text display as ticker with color change |
|---|---|
| Inputs | Up to 2 channels with multifunction input: RTD temperature probe, thermocouple, standard signal, 0 to 20 mA/0 to 10 V |
| Outputs | 2 relays (can be expanded by optional boards) |
| Special features | Can be optionally expanded with analog output, RS485, PROFIBUS, math, up to 4 limit values |
| Configuration | Via PC interface or keys on the front |
| Approval | cULus |
| Protection type | At the front IP65, at the rear IP20 |
| Напряжение питания | AC/DC 20 to 30 V, AC 110 to 240 V |
| Рабочая температура | 0 to 55 °C |
| Installation | In the panel cut-out 96 × 48 mm |
