JUMO GmbH & Co. KG 703590

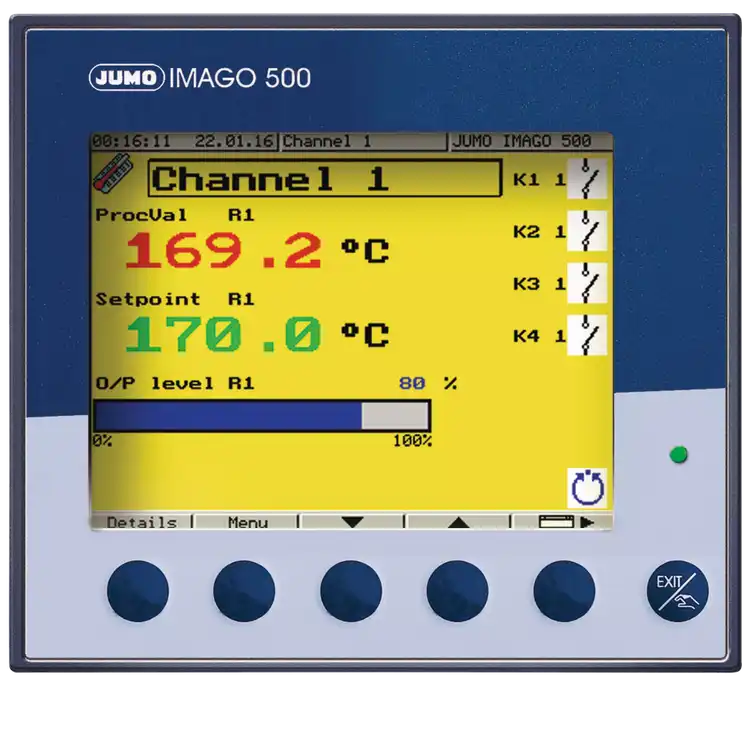

JUMO IMAGO 500
Технические характеристики
| Measuring inputs | Up to 8 user configurable analog inputs for: RTD temperature probes; resistance transmitters; thermocouples; current 0(4) to 20 mA; voltage 0(2) to 10 V; heater current, C-level control; customer-specific linearization possible |
|---|---|
| Digital inputs | 6 digital inputs for potential-free contacts |
| Outputs | Max. 6 slots for the following plug-in cards: 2 relays (normally open contact); 1 relay (changeover contact); 2 logic outputs 0/5 V; 1 logic output 0/22 V; 1 solid state relay; 1 analog output; 1 voltage supply for two-wire transmitter via 22 V logic output |
| Additional contacts | Up to 2 external relay modules with 8 changeover contacts or 8 logic outputs 0/12 V |
| Interfaces/protocols | 1 × RS422/485 (Modbus); 1 × PROFIBUS DP or RS422/485 (Modbus); setup interface |
| Number of control channels | Up to 8 independent and user configurable control channels |
| Controller structure | P; I; PD; PI; PID (2 sets of control parameters per channel) |
| Controller type | Two-state controller; three-state controller; modulating controller; continuous controller; continuous controller with integrated position controller |
| Program controller | 50 programs each with up to 100 sections; max. total of 1000 sections, 16 control tracks |
| Alarms | 16 limit value monitoring functions, each with 8 selectable alarm functions with timer and confirmation functions |
| Display | 5-inch TFT color screen (320 × 420 pixels, 27 colors); plain text display available in English, German, French, and other languages; process-specific texts and screens individually configured; bar graph display |
| Mounting | Panel mounting |
| Protection type | At the front IP65; at the rear IP20 |
| Напряжение питания | AC 110 to 240 V +10/-15 %, 48 to 63 Hz; AC/DC 20 to 30 V, 48 to 63 Hz |
| Format | 144 mm × 130 mm × 170 mm, installation dimensions 92 × 92 mm |
| Special features | Modular structure with plug-in cards that can be retrofitted individually; easy-to-use PC setup program including startup software; recording function with evaluation software; min. sampling rate 50 ms; autotuning procedure for determining the controller parameters; programmable operating level; math and logic functions; programmable function keys and individually configured process screen for plant visualization; teleservice and email notification (via external modem) |
| Approvals | cULus |
