JUMO GmbH & Co. KG 705060

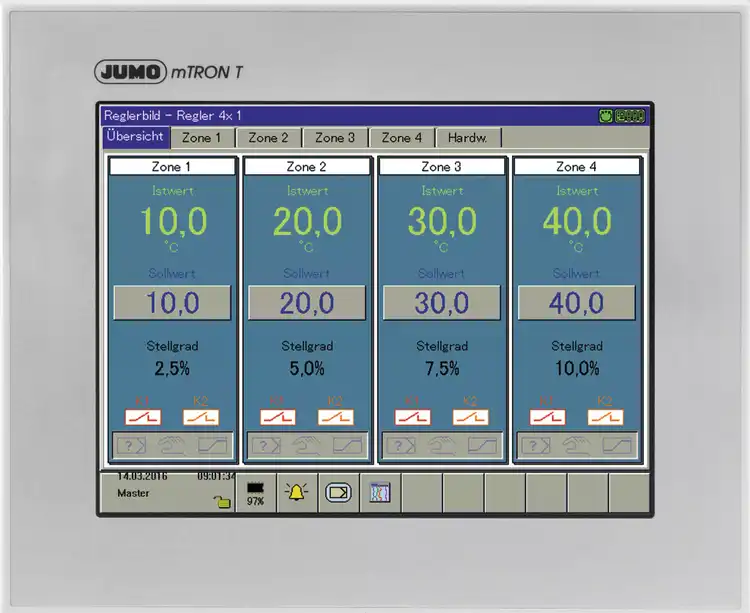

JUMO mTRON T
Технические характеристики
| Operation | 21.3-cm (8.4") TFT touchscreen with a resolution of 640 × 480 pixels and 256 colors |
|---|---|
| Interfaces | Ethernet, 1 USB device, 2 USB hots, 2 RJ45 system bus connections (1 × Bus In, 1 × Bus Out), 2 serial interfaces (option) as RS232 or RS422/485 for barcode scanner and Modbus RTU master/slave |
| Special features | Predefined screen masks for the controller, program generator, and recording function, customer-specific process screens, user management, configuration access to the overall system, recording function (option), integrated web server |
| Approvals | UL, DNV |
| Housing | Robust metal case |
| Protection type | IP67 (front side), IP20 (rear side) |
| Рабочая температура | -20 to +55 °C |
| Напряжение питания | DC 24 V +25/-20 % SELV |
| Dimensions (W × H × D) | 235 mm x 195 mm x 58 mm (without connection elements) |
