JUMO GmbH & Co. KG 705065

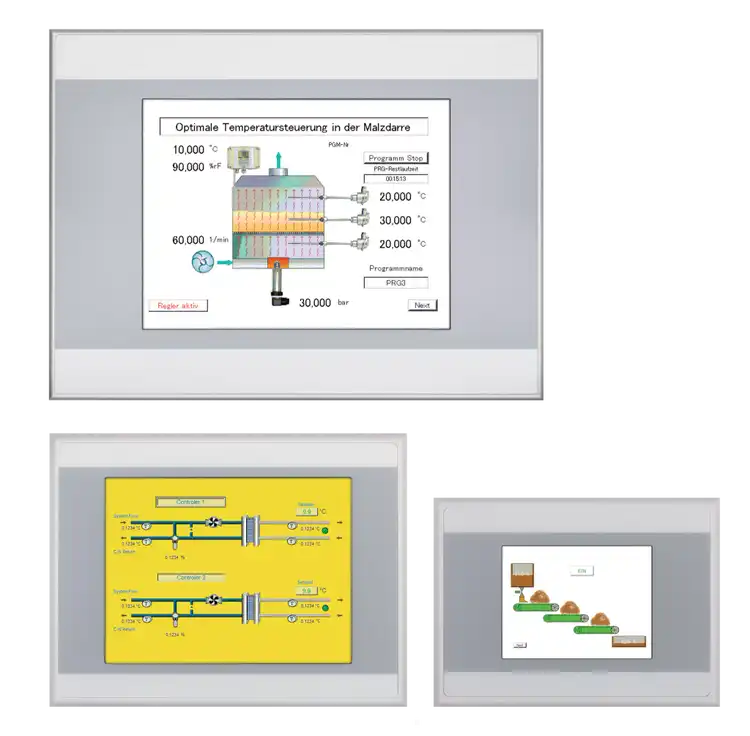

JUMO mTRON T
Технические характеристики
| Operation | TFT color screen (3.5", 5.7", and 10.4", at least 64k colors) with resistive/capacitive touch technology |
|---|---|
| Housing | Metal or plastic |
| Protection type | IP67 (front side), IP20 (rear side) |
| Рабочая температура | -20 to +55 °C |
| Напряжение питания | DC 24 V +25/-20 % SELV |
| Interfaces | Ethernet (RJ45) for connection to the system |
| Special features | Up to 4 operating panels per central processing unit (PLC option required), operation of the system via specific process screens, direct access to the PLC variables |
| Screen size | 8.9 cm (3.5"), 14.5 cm (5.7"), and 26.4 cm (10.4") |
| Screen resolutions | 320 × 240 pixels and 640 × 480 pixels |
