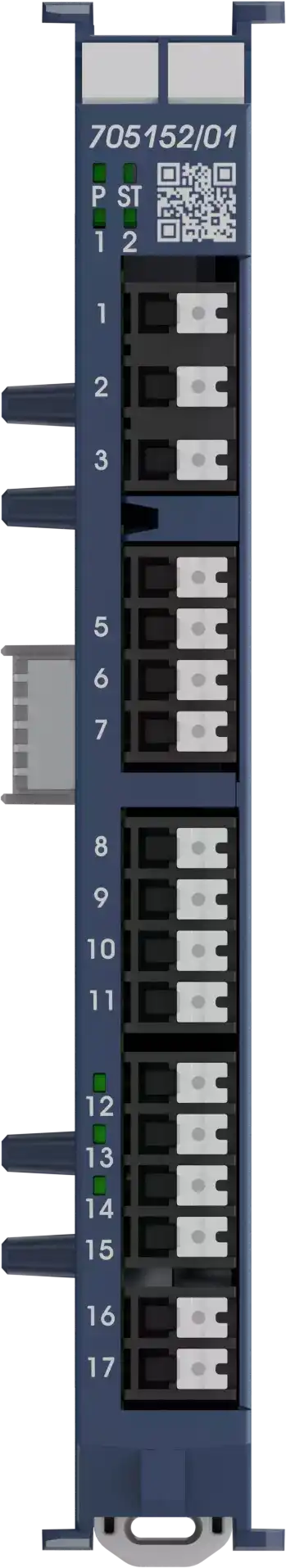

JUMO GmbH & Co. KG 705152
JUMO I/O system controller module
Технические характеристики
| Inputs | 2 universal analog inputs for RTD temperature probes (two-wire, three-wire, or four-wire), thermocouples, and standard signals (0(4) to 20 mA, 0 to 1 V, or 0 to 10 V)), 3 digital inputs (12.5 kHz) |
|---|---|
| Outputs | 1 analog output (0(4) to 20 mA, 0 to 10 V) and either 2 relay or 3 digital outputs |
| Connection | Terminal strips with PUSH IN technology on the front |
| Control channels | 2 |
| Control types | Two-point, three-point, three-point stepping, continuous controller with integrated position controller or continuous controller |
| Special features | Autotuning with oscillation and step response method; control loop and output level monitoring; quick cycle time for switching relay outputs; actual value switching and control parameter change via ST code; “Independent controller” operating mode configurable; quick wiring of operating voltage and system bus by simply plugging the modules together; space-saving design; operation with JUMO variTRON and in combination with earlier JUMO I/O modules (7050xx) possible; switching states are visualized by LEDs |
| Напряжение питания | DC 24 V +25/-20 %, supply via central processing unit with system module 705171 (JUMO variTRON 500) or communication module 3-channel 705163 (JUMO variTRON 300, JUMO variTRON 500 touch) |
| Housing | Plastic housing for DIN-rail mounting in the control cabinet |
| Protection type | IP20 |
| Approvals | DIN 14597; DNV; UL; AMS2750, and CQI-9 compliant |
| Рабочая температура | -20 to +55 °C |
| Dimensions (W × H × D) | 12 x 106.7 x 101 mm (without connection elements) |
