JUMO GmbH & Co. KG 706520

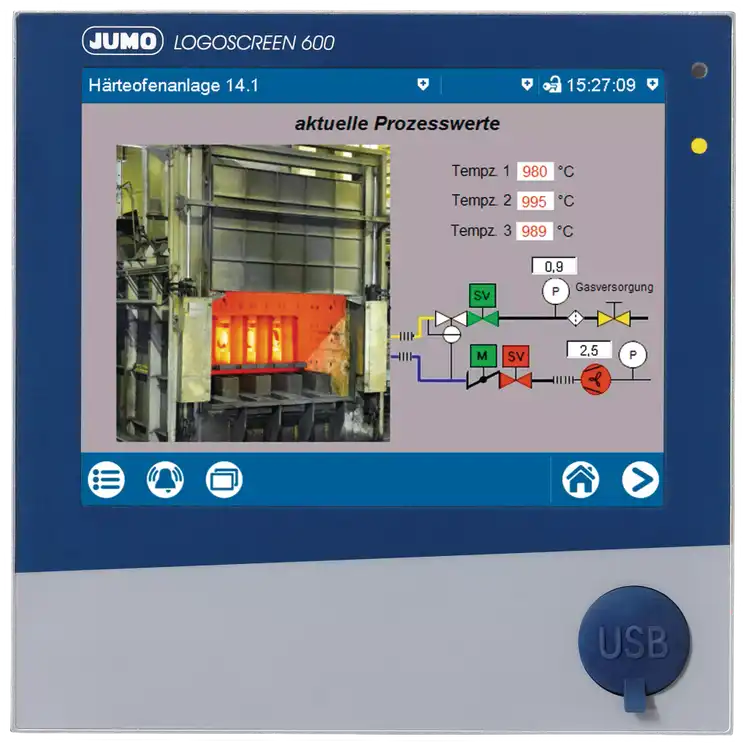

JUMO LOGOSCREEN 600
Технические характеристики
| Measurement inputs | 0/3/6 user configurable analog inputs for RTD temperature probes, thermocouples, current 0(4) to 20 mA, voltage -10 to +10 V, support of up to 24 external channels respectively (analog and digital) |
|---|---|
| Digital inputs (solid) | 0/3/6 digital inputs (8 Hz) |
| Digital inputs/outputs (switchable) | 12 digital inputs/outputs (optional), including 1 counter input (12.5 kHz) |
| Analog outputs | 0/1/2 analog outputs, voltage 0 to 10 V or current 0(4) to 20 mA |
| Interfaces | RS232/485 for barcode reader, Ethernet, USB (host/device), Modbus master/slave (RS485/TCP) |
| Relay (changeover contact) | 1 (standard) |
| Display | 5.7 inch TFT color screen |
| Operation | Touchscreen |
| Internal memory | 1 GB |
| External storage media | USB flash drive |
| Memory cycle | 125 ms to 32000 s |
| Front panel | Zinc die-cast with decor foil (144 × 144 mm format) |
| Approvals | cULus, FDA compliant according to 21 CFR Part 11 (available with extra code 888 as an optional extra) |
| Special features | Lifecycle data management, web server function with visualization as on the device, integrator/counter, math/logic functions (optional), SNTP time synchronization, 1 batch report, up to 6 customer-specific editable process screens, intuitive icon-based operation and visualization concept, mounting depth < 119 mm, up to 5/50 users, display of the process values on smartphones and tablets via app, manipulation detection with digital certificate (extra code 887) |
| Protection type on the front | IP65 |
| Напряжение питания | AC 110 to 240 V +10/-15 %, 48 to 63 Hz or AC/DC 20 to 30 V, 48 to 63 Hz |
