JUMO GmbH & Co. KG 707030

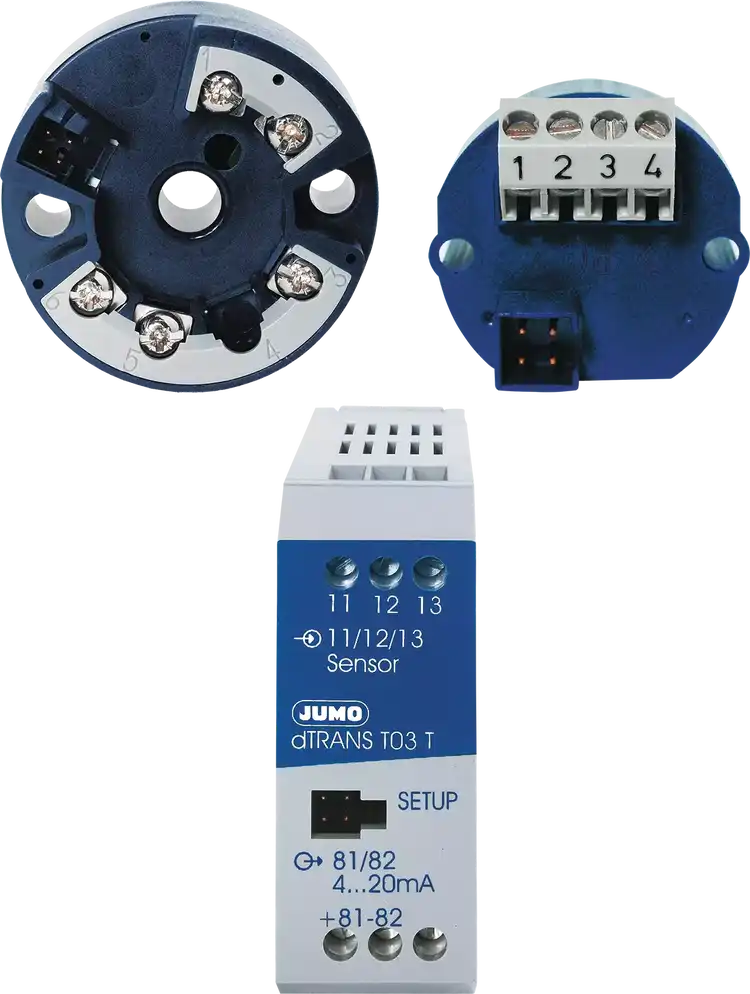

JUMO dTRANS T03
Технические характеристики
| RTD temperature probe input | Pt100, two-wire/three-wire circuit |
|---|---|
| Special features | Analog signal path, can be digitally adjusted/configured |
| NAMUR compliant | NE21 |
| Calibration accuracy | ± 0.2 % |
| Configuration | Via PC interface |
| Installation | In terminal head type B/type J or on mounting rail/DIN rail 35 × 7.5 mm |
| Напряжение питания | DC 15 to 35 V (two-wire/three-wire transmitter) |
| Output | 4 to 20 mA, 0 to 10 V |
| Рабочая температура | -25 to +70 °C |
