JUMO GmbH & Co. KG 707040

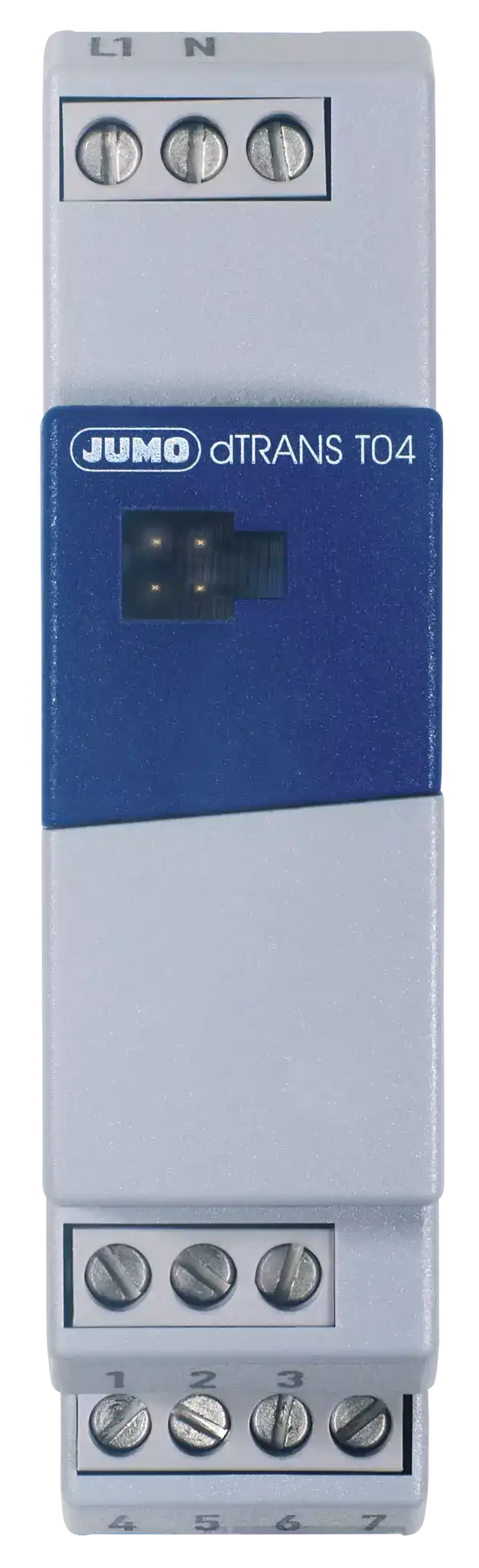

JUMO dTRANS T04
Технические характеристики
| Рабочая температура | -25 to +55 °C |
|---|---|
| Configuration | Via PC interface or DIP switch |
| NAMUR compliant | NE21 |
| Calibration accuracy | ± 0.3 % |
| RTD temperature probe input | Pt100, Pt1000, potentiometer |
| Напряжение питания | AC 110 to 240 V, AC/DC 20 to 53 V (four-wire transmitter) |
| Special features | Measuring ranges and current or voltage output can also be configured via the DIP switch, sensor-related hardware version |
| Output | 4 to 20 mA, 0 to 10 V |
| Installation | On mounting rail/DIN rail 35 × 7.5 mm |
| Galvanic isolation | Up to 3.7 kV (against voltage supply) |
