JUMO GmbH & Co. KG 707050

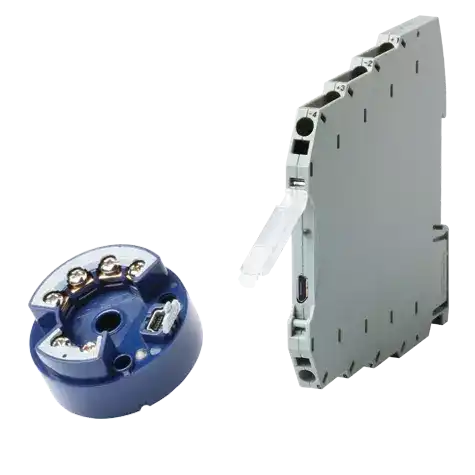

JUMO dTRANS T05
Технические характеристики
| Galvanic isolation | 3.75 kV, 1.875 kV |
|---|---|
| Рабочая температура | -40 to +85 °C, -10 to +70 °C (DIN rail version) |
| Installation | In terminal head type B; on mounting rail/DIN rail 35 × 7.5 mm |
| RTD temperature probe input | Pt100, Pt500, Pt1000, resistance transmitter, two-wire/three-wire/four-wire circuit |
| Thermocouple input | R, S, B, J, T, E, K, N ,L, U, A1, C, D, -100 to +1100 mV |
| Calibration accuracy | ± 0.05 % |
| Output | 4 to 20 mA (invertible) |
| NAMUR compliant | NE21 (head transmitter); NE43 (DIN rail device) |
| Configuration | Via standard USB cable without auxiliary energy |
| Special features | USB interface, customer-specific linearization, control LED (red/green), storage min./max., sensor temperature via drag indicator function |
| Напряжение питания | DC 1 to 35 V (two-wire/three-wire transmitter) |
