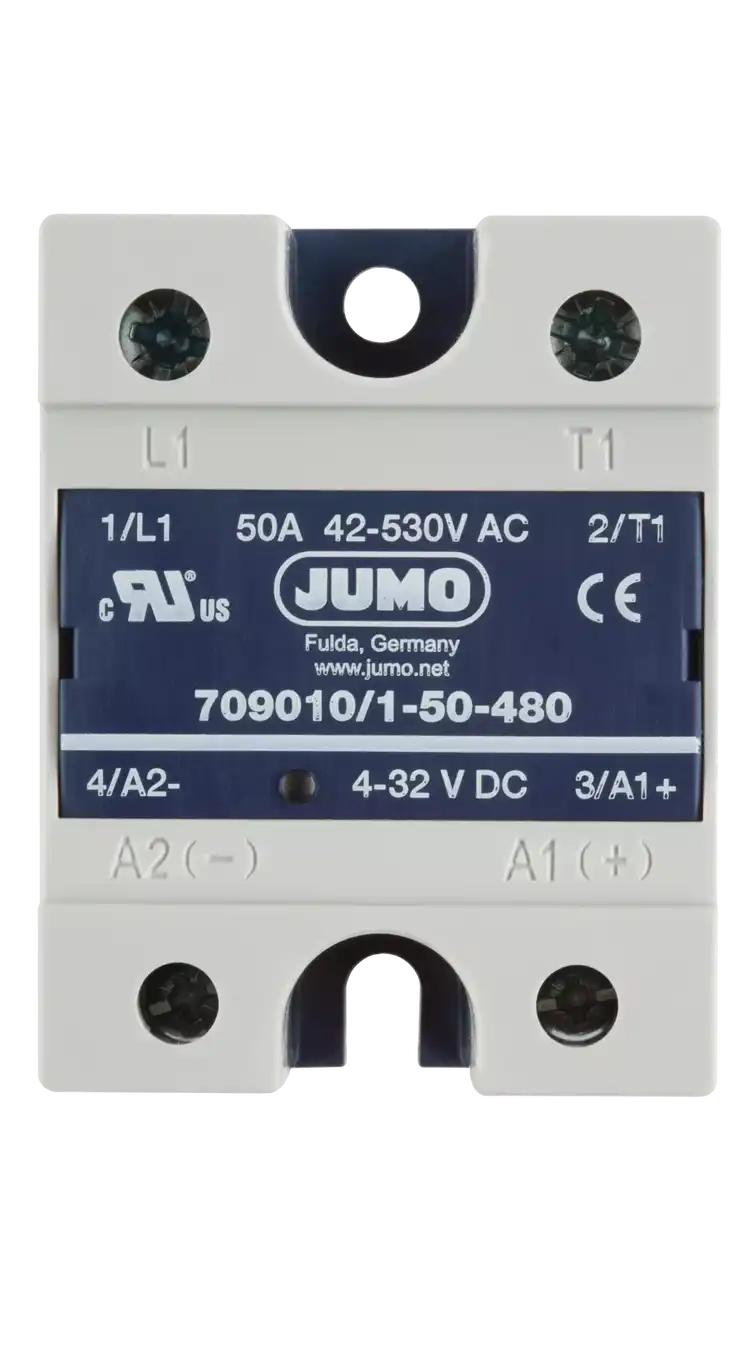

JUMO GmbH & Co. KG 709010
JUMO TYA 432
Технические характеристики
| Напряжение питания | ≥ 650 Vp; ≥ 1400 Vp |
|---|---|
| Масса | 60 g |
| Рабочая температура | -20 to +70 °C |
| Galvanic isolation | Between the control and power section through optocouplers; insulation voltage 4 kV |
| Load type | 1-phase |
| Special features | Overvoltage protection by integrated varistor, LED display for control input |
| Electrical connection | Screw terminals |
| Load current (max.) | 50 A |
| Operating mode | Zero-voltage switching |
| Load current (min.) | 150 mA AC; 250 mA AC |
| Approvals | cULus/CSA |
| Protection type | IP20 |
| Dimensions | 45 × 58.2 × 29 mm |
| Напряжение питания | 24 to 265 V AC; 42 to 660 V AC |
| Напряжение питания | 3 to 32 V DC; 4 to 32 V DC |
