JUMO GmbH & Co. KG 901250

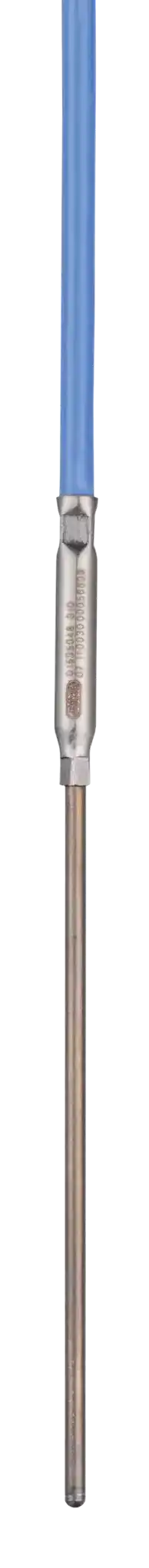

Mineral-insulated thermocouples
Технические характеристики
| Connection | Ferrules according to DIN 46228, multi-pole plug connector |
|---|---|
| Compensating cable | Silicone, PTFE, metal braiding |
| Process connection | Screw connection G 1/2, screw connection G 3/8 |
| Protection tube | Stainless steel 1.4541, Inconel 2.4816 (Inconel 600) |
| Measuring insert | J, K, L |
| Option | Application-specific insertion length, protection tube diameter from 0.5 mm |
| Application areas | chemical plants, power plants, pipes, engine manufacturing, test benches, stationary fuel cells (temperature measurement, flame monitoring) |
| Special features | Flexible sheath cable with vibration-resistant measuring insert, fast response time |
