JUMO GmbH & Co. KG 902150

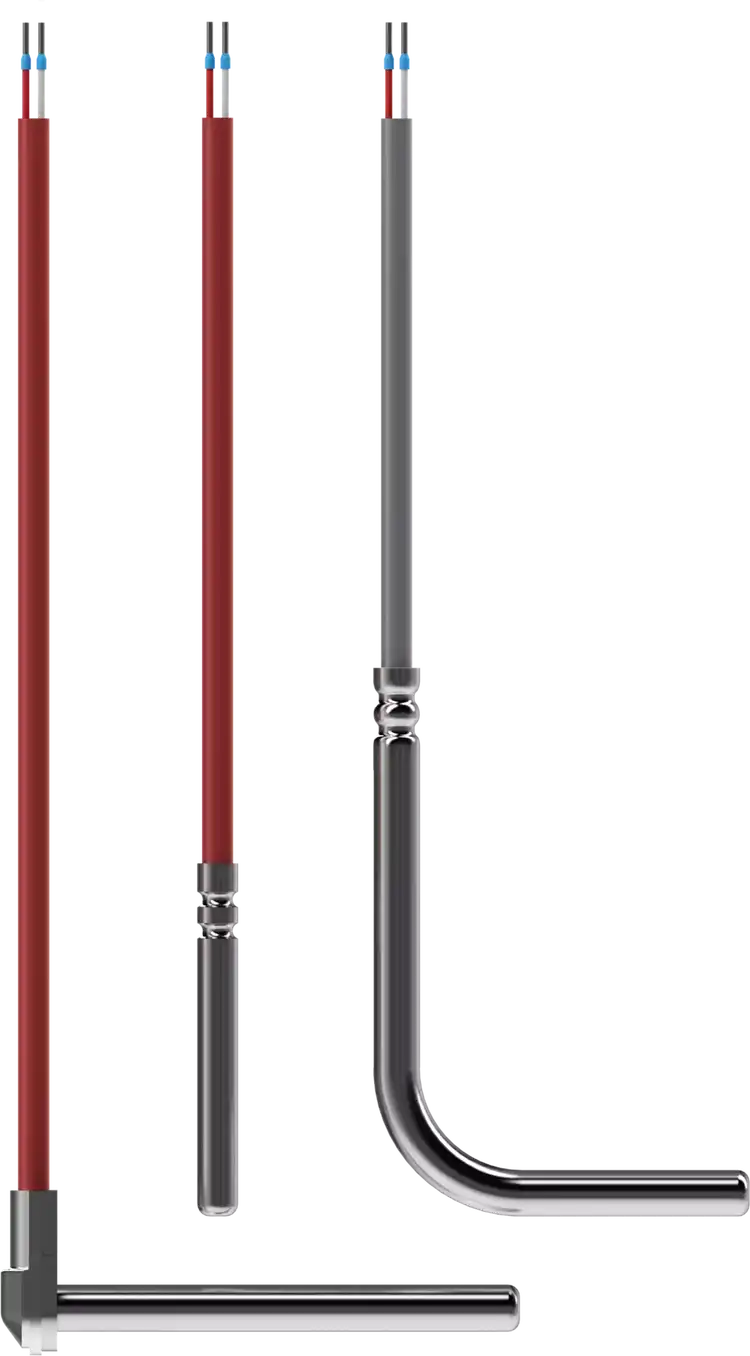

Push-in RTD temperature probe
Технические характеристики
| Areas of application | Heat pumps, thermostat baths, packing machine industry, heating and drying cabinets, hydraulic systems, solar units, and much more |
|---|---|
| Special features | Shielded cable, bend protection (optional), straight and angled variants, strain-relieved |
| Operating temperature | -50 to +400 °C |
| Measuring circuits | 1/2 |
| Sensor | Pt100 or Pt1000 |
| Connection | Cable, connector (optional) |
| Protection fitting | Stainless steel |
| Connecting cable | PVC, silicone, PTFE, metal braiding, glass fiber |
| Accuracy | Tolerance class: class B (standard), class A, class AA |
| Option | With straight protection tube, with right-angled connection line, with right-angled protection tube |
| Approvals | SIL, PL, DNV, UL/UL(listed) |
