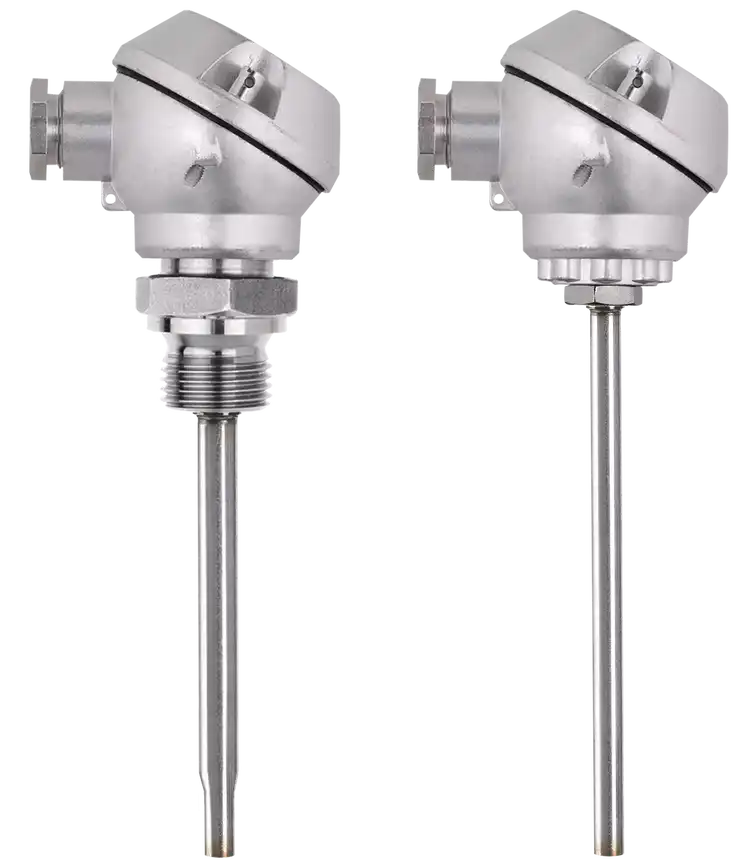

JUMO GmbH & Co. KG 902437
JUMO HEATtemp
Технические характеристики
| Minimum immersion depth | 25 mm |
|---|---|
| Areas of application | Heat and cold meters |
| Insertion length | 85 to 400 mm |
| Process connection | Thread G 1/2, stainless steel |
| Operating temperature | 0 to 180 °C |
| Temperature difference | 3 to 180 K |
| Terminal head | Type J |
| Features | Paired according to European MID directive and/or German law on weights and measures (MessEG) including declaration of conformity (conformity and additional metrology marking). Production certified according to module D of the MID and German ordinance on weights and measures (MessEV). |
| Protection fitting | Stainless steel 6 mm |
| Approvals | MID and domestic type examination certificates for temperature probes for heat meters, cold meters, and combined cold/heat meters; fulfills the requirements of DIN EN 1434, AGFW FW 202 FW 212, TR K8, and TR K11 |
| Temperature sensor | Pt100, Pt500, Pt1000 |
| Option | Two-wire or four-wire circuit, terminal head, type B |
