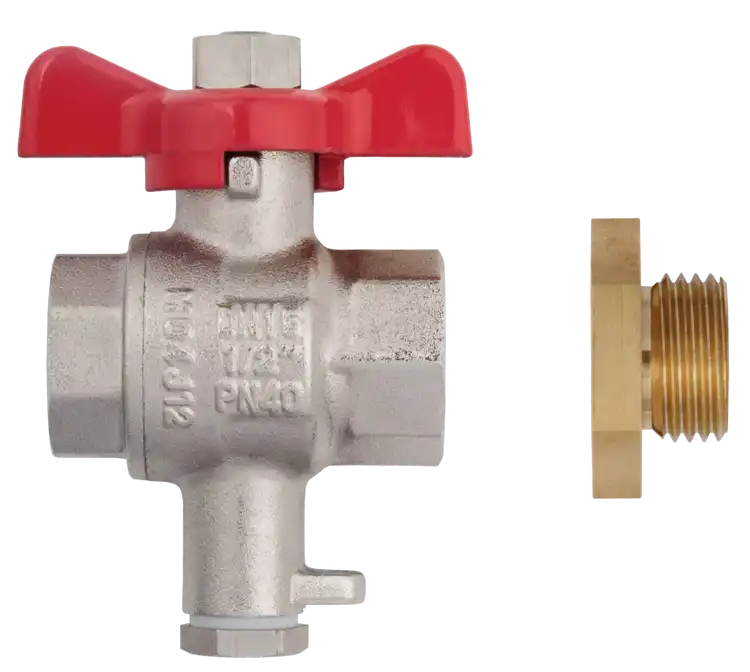

JUMO GmbH & Co. KG 902442
Installation locations and accessories
Технические характеристики
| Option | Ball valves, T-pieces, thermowells, adapter screw fittings, installation accessories |
|---|---|
| Accessories for installation locations | Set for identifying and sealing thermowells, sealing set, PBT sealing set, extension socket for temperature probe pairs |
| Ball valve process connections | Thread G 1/2, 3/4, 1, 1 1/4, 1 1/2, 2 for both process connections |
| Материал | Brass, nickel-plated |
| T-piece process connection | Thread G 1/2, 3/4, 1 |
| T-piece measuring socket | Thread G 1/4, M10 × 1 (according to DIN EN 1434) |
| Материал | Brass |
| Adapter screw fitting process connection | Thread M10 × 1 (according to DIN EN 1434); G 3/4, 1/2, 3/8, 1/4 (with measuring socket thread M10 × 1) |
| Adapter screw fitting measuring socket | Thread G 1/4, M10 × 1 (according to DIN EN 1434) |
| Материал | Brass, stainless steel (with measuring socket thread G 1/4) |
| Installation accessories | Screw connection, screw connection set, double nipple, welded socket |
| Installation accessories process connection | Thread G 2, 1 1/4, 1, 3/4, 1/2, 1/4 (with internal diameter 6.3 mm) |
| Installation accessories insertion length | 105 mm (with thread G 1), 110 mm (with thread G 3/4), 130 mm (with thread G 1), 135 mm (with thread G 1 1/4), 150 mm (with thread G 2), 190 mm (with thread G 1), 260 mm (with thread G 1 1/4), 300 mm (with thread G 2) |
| Материал | Steel, brass, plastic |
