JUMO GmbH & Co. KG 902454

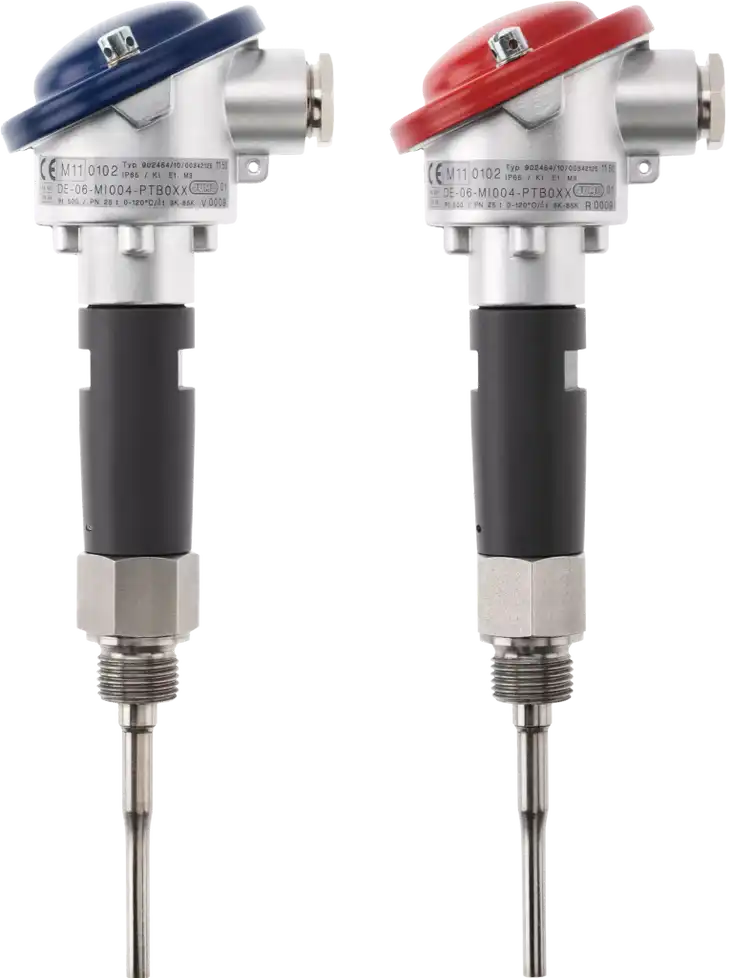

JUMO HEATtemp
Технические характеристики
| Terminal head | Form B |
|---|---|
| Process connection | Thread G 1/2, stainless steel |
| Protection tube | Stainless steel |
| Temperature sensor | Pt100, Pt500, or Pt1000 |
| Minimum immersion depth | 25 mm |
| Insertion length | 85 to 280 mm |
| Protection type | IP65 |
| Option | Two-wire or four-wire circuit |
| Special features | Type examination certificate for heat meter MID and domestic approval for combined cold/heat meters as exchangeable temperature probes; fulfils the requirements of DIN EN 1434; AGFW FW 202, and FW 211; pairing and declaration of conformity according to the German Weights and Measures Act (MessEG) and MID; production certified according to module D (MID) (CE and metrology identification marking) |
