JUMO GmbH & Co. KG 902722

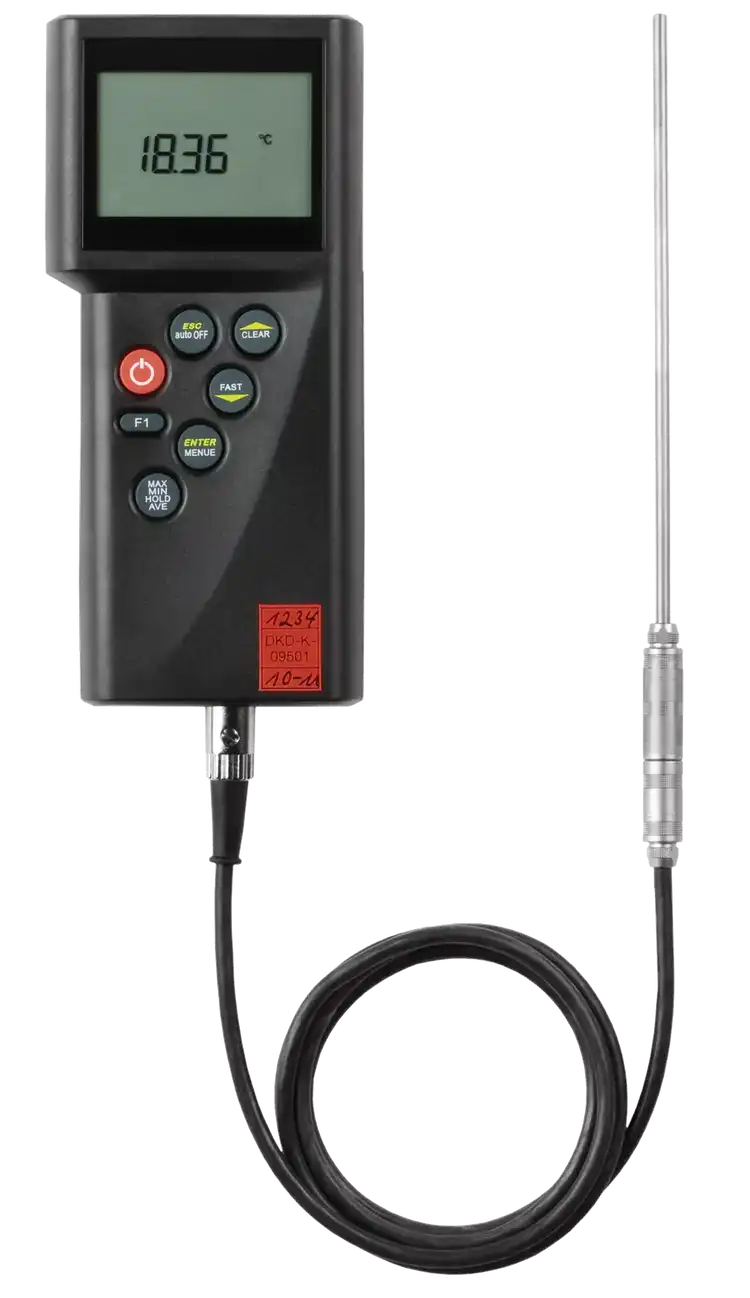

Precision indicating device
Технические характеристики
| Special features | Test equipment calibrated by DAkkS (DKD – German calibration service), integrated calibration function for easy compensation of probe tolerances |
|---|---|
| Features | 1-point, 2-point, or 3-point calibration; saving of MAX, MIN, HOLD, and average values; switch between °C/°F; measuring channels configurable; mains operation possible |
| Interface | USB |
| Accessories | Windows® evaluation software "DE-Graph" is available as an accessory |
| Display | Two-line LCD |
| Connection | Pt100 input in four-wire technology, thermocouple inputs according to DIN EN 60584 |
| Option | 2-channel devices with differential temperature display, Pt100, or thermocouple |
| Housing | ABS plastic |
| Dimensions (L × W × H) | 200 mm × 93 mm × 44 mm |
| Admissible operating temperature | 0 to 40 °C |
| Масса | Approx. 350 g |
| Temperature probe insertion length | 200 to 400 mm |
