JUMO GmbH & Co. KG 902815

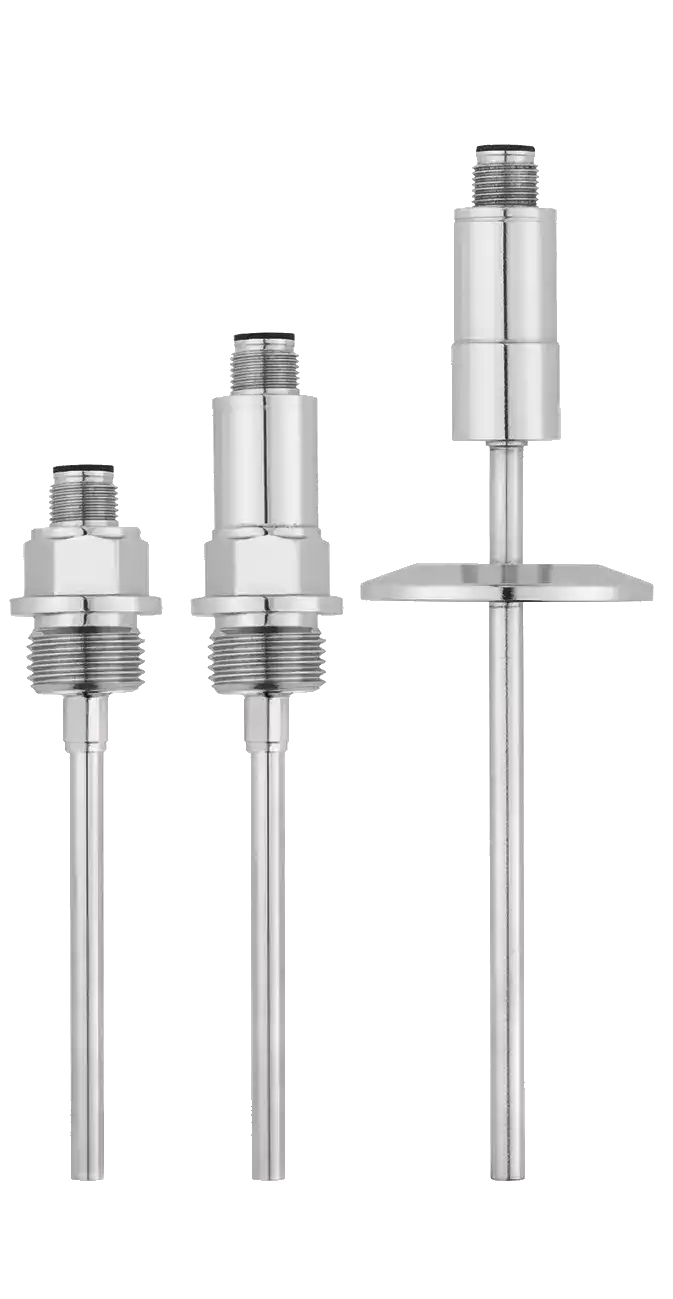

JUMO dTRANS T100
Технические характеристики
| Areas of application | Food and pharmaceutical applications, CIP and SIP plants, mechanical and plant engineering, refrigeration and air-conditioning engineering |
|---|---|
| Accuracy | Tolerance class: class B (class A or AA as optional extra) |
| Measuring circuits | 1 |
| Output | Pt100/Pt1000 passive; 1 × programmable transmitter output 4 to 20 mA |
| Operating temperature | -50 to +260 °C |
| Sensor | Pt100, Pt1000 |
| Declaration of conformity | EC 1935/2004 material confirmation |
| Features | EHEDG certification |
| Process connection | Thread, hygienic connections, screw connections, JUMO PEKA, CIP-compliant process connections, including electropolished Ra< 0.8 µm, hygienic thermowells |
| Approvals | EHEDG, SIL, PL, ATEX/IECEx upon request |
| Protection fitting | Stainless steel 316L |
| Protection type | IP67 |
| Connection | M12 connector |
| Option | Transmitter |
