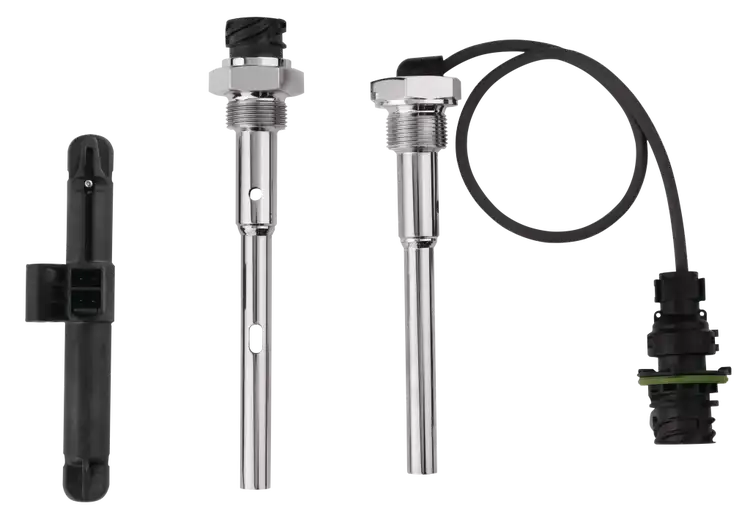

JUMO GmbH & Co. KG 902880
Level and temperature probes
Технические характеристики
| Protection tube | Stainless steel, zinc-plated steel (heavy-duty plastics upon request) |
|---|---|
| Areas of application | Commercial vehicle/construction/agricultural machinery industry, engine manufacturing, gearbox construction |
| Process connection | Screw connection M 24 × 1.5 |
| Connecting cable | Cable made of polyester, cross-linked |
| Temperature sensor | Pt1000 |
| Connection | Cable ends stripped bare, plug connector DIN 72585 (bayonet connector) |
| Measuring circuits | 1/2 |
| Operating temperature | -40 to +140 °C |
| Features | Highly vibration-resistant |
| Measuring path | 50 mm or 62 mm |
| Option | Pt100, Pt500, NTC, or semiconductor sensors, corrugated hose, (process) connection according to customer request |
| Special features | Installation position: suspended or standing |
| Level sensor | Hot-wire principle, ±3 mm tolerance |
