JUMO GmbH & Co. KG 902915

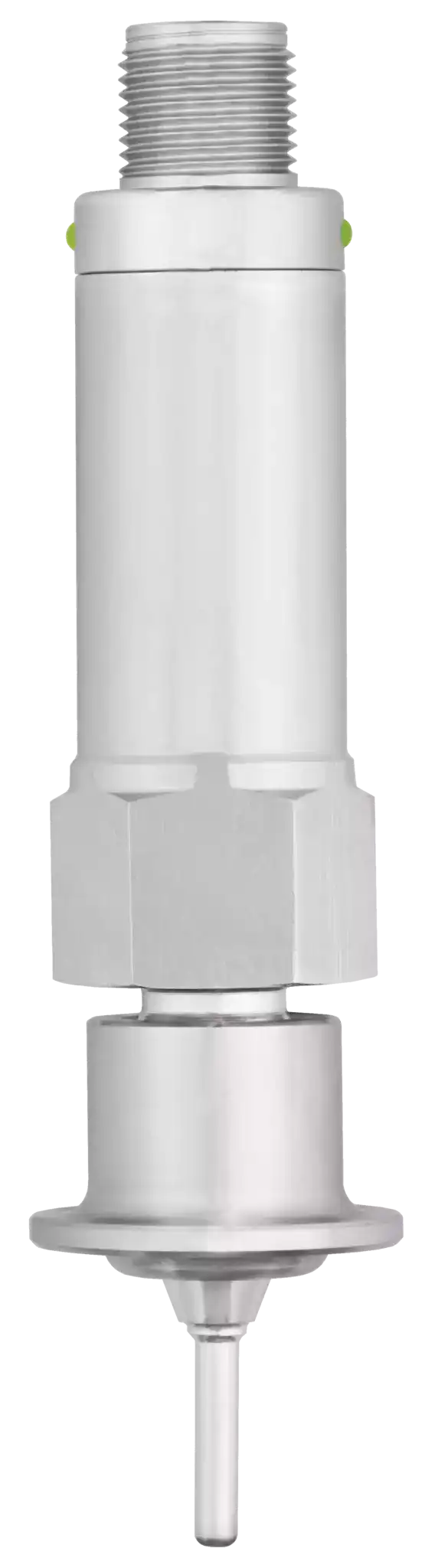

JUMO dTRANS T1000
Технические характеристики
| Sensor | Pt1000 |
|---|---|
| Temperature range | -50 to +150 or +260 °C |
| Connection type | 4-wire resistance measurement |
| Input filter | Digital filter, 2nd order; filter time constant can be adjusted |
| Interface | IO-Link |
| Number of outputs | 1 output for IO-Link operation, 2 outputs for switch operation |
| Protection tube | Stainless steel 1.4404 |
| Process connection | Screw connection G 3/8, G 1/2 (also with CIP-compliant conical seal), M12 × 1.5 with CIP-compliant conical seal, aseptic screw connection, taper socket with union nut (dairy pipe fitting), clamping socket (clamp), ball welding socket with threaded fitting, welding socket with CIP-compliant conical seal, VARIVENT® and BioControl® connections |
| Approval | cULus |
| Special features | Stainless steel, fully welded, different process connections, hygienic connections, easy startup, easy sensor replacement, usual accuracy, connection via IO-Link master, LED status display |
