JUMO GmbH & Co. KG 906123

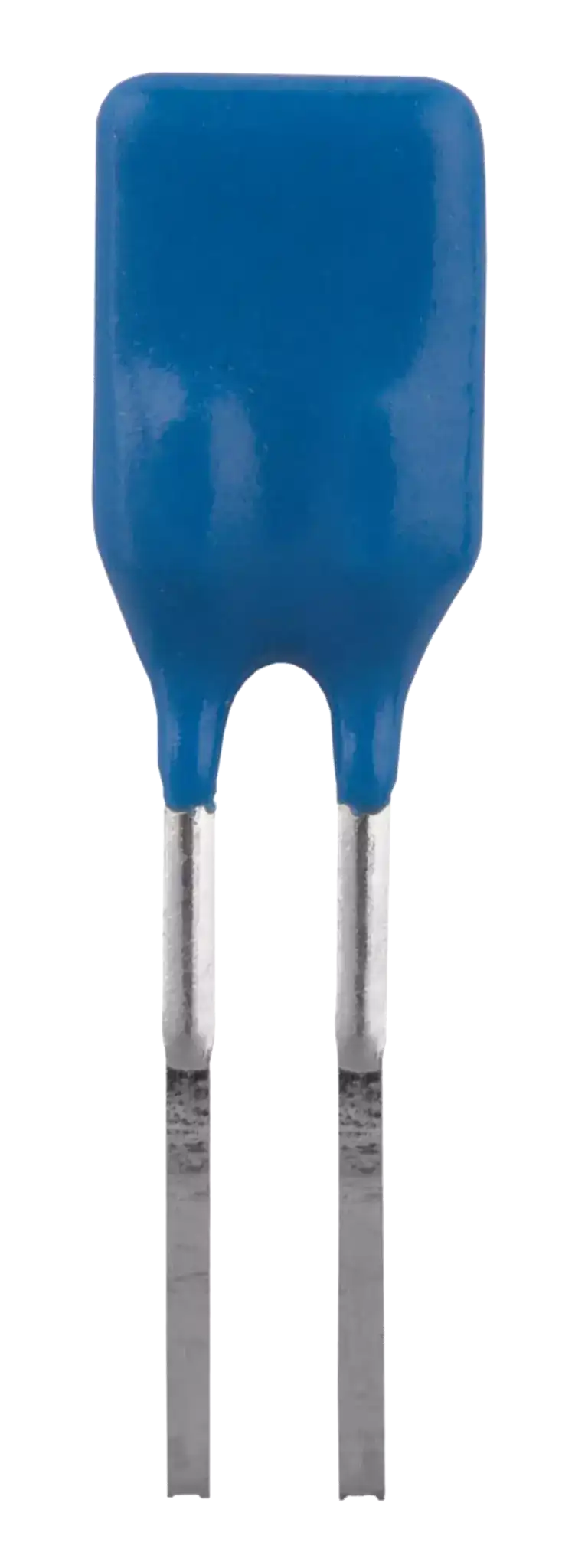

Platinum-chip temperature sensors
Технические характеристики
| Temperature range | -30 to +105 °C |
|---|---|
| Standard | DIN EN 60751 |
| Temperature coefficient | α = 3.850 × 10-3 °C-1 (between 0 and 100 °C) |
| Sensor | Pt 100, Pt1000 |
| Features | Protection against moisture and condensation. Not to be used in corrosive atmospheres |
| Insulating varnish | Epoxy varnish, blue (UL-compliant: UL 94/V0) |
| Connection | Especially rigid terminal clamps that have been soldered on |
| Measuring point | 2 mm from the open end of the wire |
| Design type | PCKL |
| Areas of application | Heating, ventilation, and air-conditioning |
| Special features | Protection against moisture and condensation, can be used openly positioned in air flow with nothing surrounding it, high long-term stability, good reproducibility |
