JUMO GmbH & Co. KG 906125

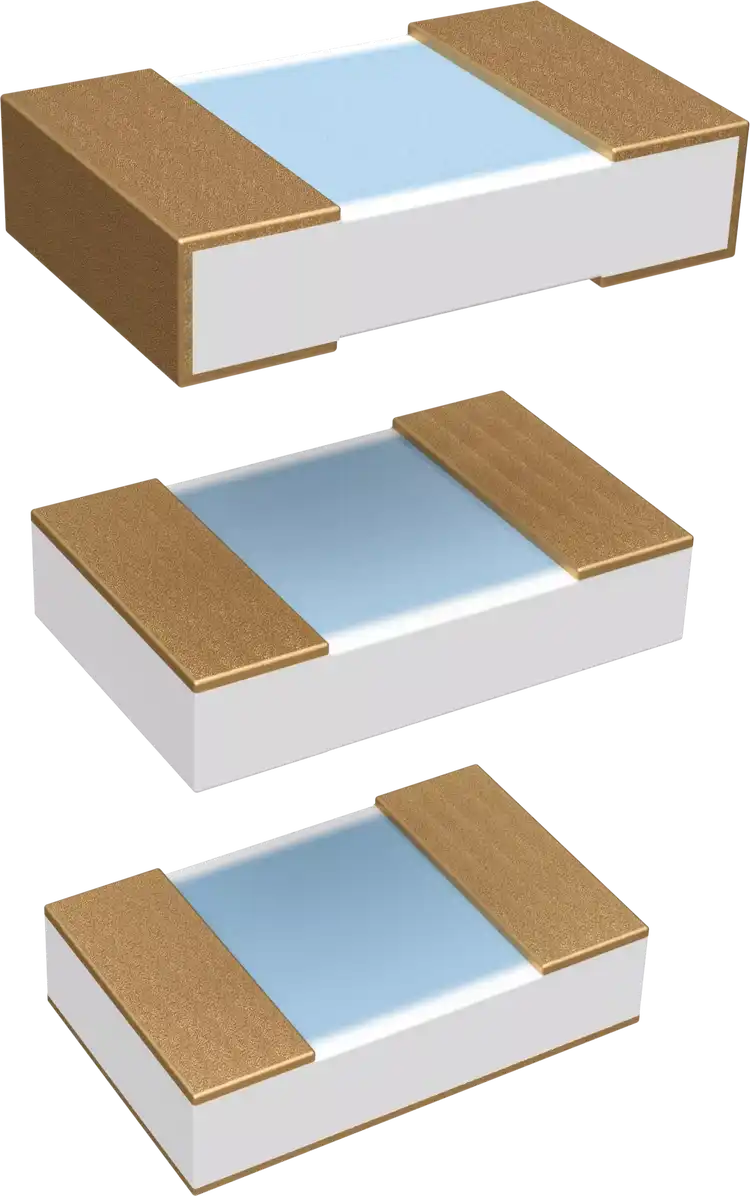

Platinum-chip temperature sensors
Технические характеристики
| Temperature range | -50 to +150 °C, expanded temperature range -70 to +250 °C |
|---|---|
| Standard | DIN EN 60751:2009-05 |
| Temperature coefficient | α = 3.850 × 10-3 °C-1 (between 0 and 100 °C) |
| Sensor | Pt100, Pt500, or Pt1000 |
| Connection | Gold-plated nickel solder contact, thickness of nickel layer ≥ 1 µm, gold ≥ 40 nm, solderability according to IEC / DIN EN 60068-2-58 |
| Features | Not to be used unprotected in humid ambient conditions or in corrosive atmospheres |
| Tolerance classes | F0.1, F0.15, F0.3 (standard), and F0.6 |
| Design type | SMD design type 1206 (3216M) and 0805 (2012M) |
| Packaging | Belt packaging according to DIN IEC 60286-3 |
| Special features | High load capacity, linear characteristic curve, wide temperature measuring range, high measuring accuracy, unparalleled long-term stability |
| Areas of application | Surface and ambient temperature measurements on circuit boards (e.g. in temperature probes, temperature monitoring or compensation circuits) |
