JUMO GmbH & Co. KG 906141

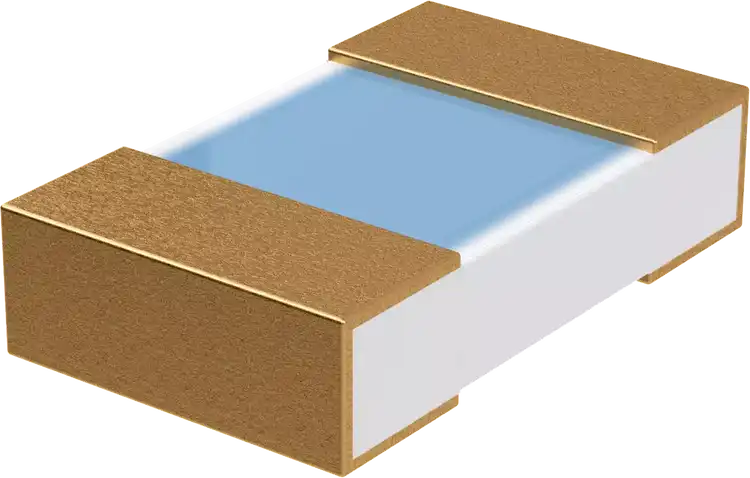

Platinum-chip temperature sensors SMD-L-AuNi
Технические характеристики
| Design type | SMD-L-AuNi |
|---|---|
| Standard | DIN EN IEC 60751 |
| Temperature range | -70 to +250 °C |
| Temperature coefficient | α = 3.850 × 10-3 °C-1 (between 0 and 100 °C) |
| Connection | Gold-plated nickel solder contact, thickness of nickel layer ≥ 1 µm, gold ≥ 40 nm, solderability according to IEC / DIN EN 60068-2-58 |
| Processing | Reflow soldering |
| Advantages | For automatic placement, SMD sizes 0805 and 1206, AEC-Q200 for selected sensors, high-purity and even contact layer layer for better solder connection, high measuring accuracy, high long-term stability, standardized nominal values and tolerances, fast response behavior |
| Areas of application | Surface and ambient temperature measurements on circuit boards (e.g. in temperature probes, temperature monitoring or compensation circuits) |
