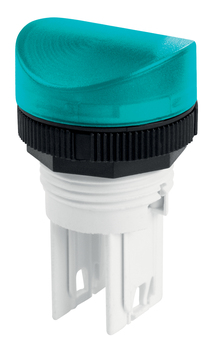

K.A. Schmersal GmbH & Co. KG AMLGN
AMLGN
Технические характеристики
| Article number (order number) | 101031182 |
|---|---|
| EAN (European Article Number) | 4030661606835 |
| Standards | EN IEC 60947-1 EN IEC 60947-5-1 |
| Versions | Front plate mounting Indicator lights |
| Design | Flat dome High calotte Round |
| Installation conditions (mechanical) | arbitrarily |
| Материал | Plastic |
| Материал | Plastic |
| Colour of the dome | Green |
| Colour of the front ring | Black |
| Масса | 25 g |
| Illuminable | Yes |
| Fully insulated | Yes |
| Mounting | central nut |
| Tightening torque of the screw | 1 Nm |
| Height | 10.5 mm |
| Note (Mounting height) | Height in front of the front panel. |
| Diameter total | 29 mm |
| Height of the dome | 10.3 mm |
| Diameter of the dome | 29 mm |
| Diameter of the front ring | 29 mm |
| Mounting diameter | 22.3 mm |
| Thickness, of the front panel, minimum | 1 mm |
| Thickness of the front panel, maximum | 6 mm |
| Spacing | 50 x 50 mm |
| IP Degree of protection | IP65 |
| Рабочая температура | -25 ... +40 °C |
| Restistance to shock | 50 g |
