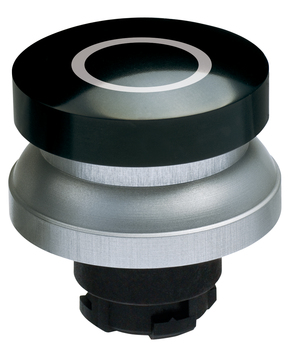

K.A. Schmersal GmbH & Co. KG RDP40SW/504L
RDP40SW/504L
Категории:
Технические характеристики
| Article number (order number) | 103006542 |
|---|---|
| EAN (European Article Number) | 4030661440927 |
| eCl@ss number, version 12.0 | 27-37-12-12 |
| eCl@ss number, version 11.0 | 27-37-12-12 |
| eCl@ss number, version 9.0 | 27-37-12-12 |
| ETIM number, version 7.0 | EC001038 |
| ETIM number, version 6.0 | EC001038 |
| Standards | EN IEC 60947-1 EN IEC 60947-5-1 |
| Versions | Latched pushbutton - Front plate mounting |
| Design | Round |
| Installation conditions (mechanical) | arbitrarily |
| Sealing type | Form seals Lip gaskets Membrane |
| Материал | Aluminium |
| Материал | Aluminium |
| Colour of the operating element | Black |
| Colour of the front ring | Silver |
| Масса | 50 g |
| With symbol labeling | Yes |
| Front plate mounting | Yes |
| Mounting flange | Yes |
| Probing possible | Yes |
| Fully insulated | Yes |
| Unlocking | without |
| Mechanical lifetime, minimum | 1,000,000 Operations |
| Mounting | Mounting flange EFM |
| Tightening torque of the screw | 0.6 Nm |
| Symbol labeling number | 504 |
| Typical actuating force of the push button | 2 N |
| Actuating stroke, minimum | 4 mm |
| Actuating stroke, maximum | 5 mm |
| Height | 37.5 mm |
| Note (Mounting depth) | Depth behind front panel including one contact element |
| Diameter total | 39.5 mm |
| diameters for the actuating heads | 37 mm |
| Diameter of the front ring | 39.5 mm |
| Mounting diameter | 22.3 mm |
| Thickness, of the front panel, minimum | 1 mm |
| Thickness of the front panel, maximum | 6 mm |
| Spacing | 40 x 50 mm |
| IP Degree of protection | IP65 |
| Рабочая температура | -25 ... +75 °C |
| Restistance to shock | 30 g / 18 ms |
| Switching frequency of the command device, maximum | 1,000 /h |
