K.A. Schmersal GmbH & Co. KG TESF/S/ST24.2/180

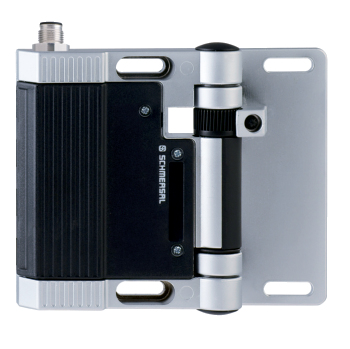

TESF/S/ST24.2/180
Технические характеристики
| Article number (order number) | 101182739 |
|---|---|
| eCl@ss number, version 12.0 | 27-27-06-09 |
| eCl@ss number, version 11.0 | 27-27-06-09 |
| eCl@ss number, version 9.0 | 27-27-06-09 |
| ETIM number, version 7.0 | EC002591 |
| ETIM number, version 6.0 | EC002591 |
| Сертификация | CCC |
| Standards | BG-GS-ET-15 EN IEC 60947-5-1 |
| Материал | Metal, zinc die-cast |
| Colour of the housing | Black |
| Масса | 616 g |
| Mounting inside | Yes |
| Number of auxiliary contacts | 2 |
| Number of safety contacts | 2 |
| Safety classification - Standards | EN ISO 13849-1 |
| Mission time | 20 Year(s) |
| B 10D Normally-closed contact (NC) | 2,000,000 Operations |
| B 10D Normally open contact (NO) | 1,000,000 Operations |
| Mechanical lifetime, minimum | 1,000,000 Operations |
| Positive break angle | 10 ° |
| Opening angle | 180° |
| Termination | Plug-in connection, top |
| Length of sensor | 21.5 mm |
| Width of sensor | 141 mm |
| Height of sensor | 115 mm |
| IP Degree of protection | IP65 |
| Рабочая температура | -25 ... +65 °C |
| Напряжение питания | 250 VAC |
| Напряжение питания | 0.8 kV |
| Thermal test current | 2.5 A |
| Utilisation category AC-15 | 230 VAC |
| Electrical data - Utilisation category AC-15 | 2 A |
| Utilisation category DC-13 | 24 VDC |
| Electrical data - Utilisation category DC-13 | 1 A |
| Switching element | NO contact, NC contact |
| Switching principle | Slow action |
| Maximum switching frequency | 1,200 /h |
| Материал | Silver-nickel alloy 10 |
| Note (General) | Caution! According to EN 60204-1, the versions with connector must only be used in PELV circuits. |
