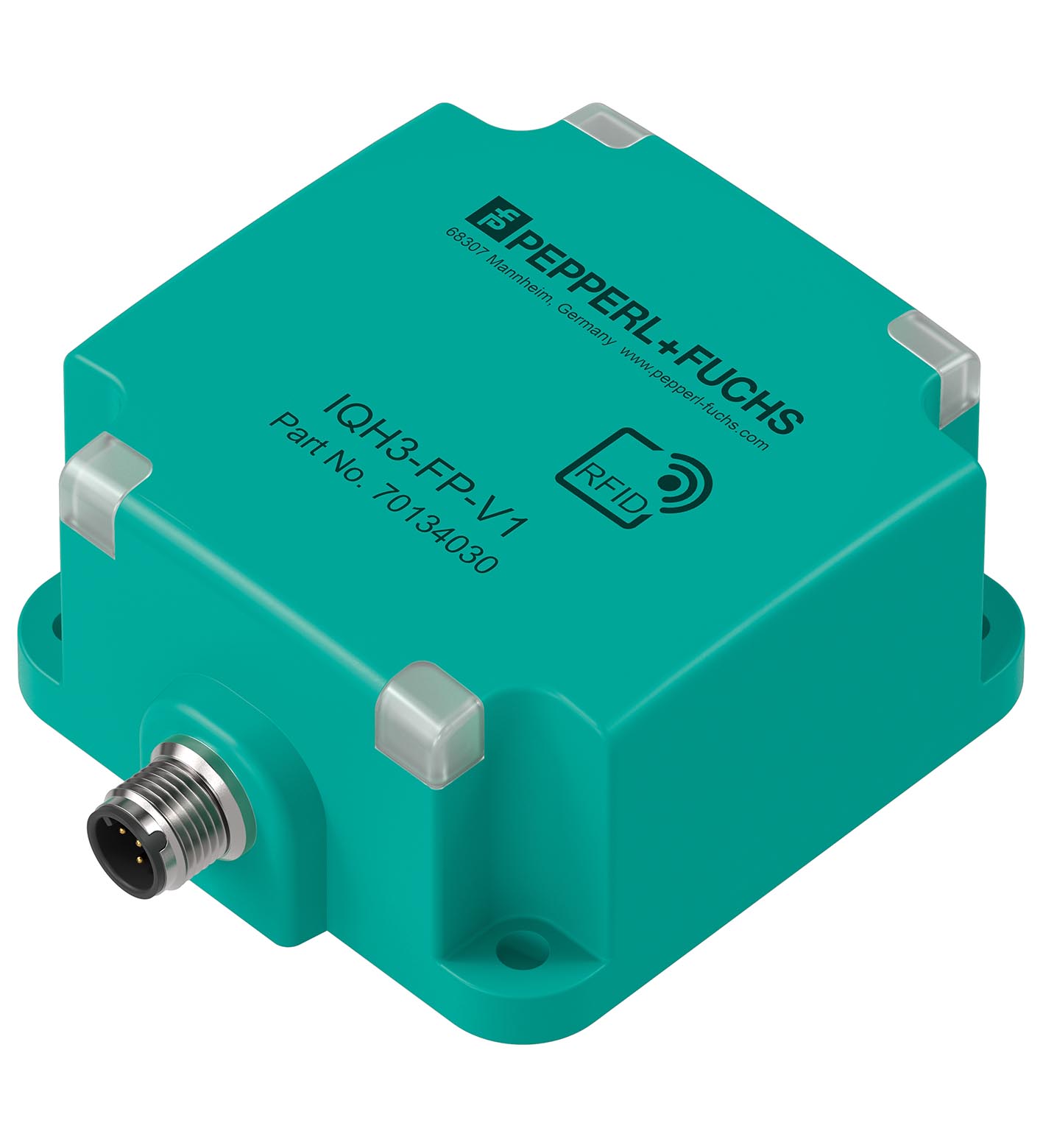

Pepperl+Fuchs SE IQH3-FP-V1
RFID read/write device
Технические характеристики
| Operating frequency | 13.56 MHz |
|---|---|
| Transfer rate | 26 kBit/s |
| Sensing range - Read distance | 0 ... 300 mm (see manual) |
| Sensing range - Write distance | 0 ... 300 mm (see manual) |
| Sensing range - Width | max. 300 mm |
| MTBF | 97 a (Operation at +40 °C) |
| LED green | Power on |
| LED yellow | Read/write operation successful |
| LED red | status display |
| LED blue | Transmission mode |
| Current consumption | ≤ 700 mA |
| Supply | from the IDENTControl |
| Radio equipment - Directive 2014/53/EU | EN 301489-1EN 301489-3EN 300330EN 62368-1EN 50364 |
| RoHS - Directive 2011/65/EU (RoHS) | IEC/EN 63000 |
| Degree of protection | IP67 |
| RFID | ISO/IEC 15693-2ISO/IEC 15693-3ISO/IEC 18000-3 |
| UL approval | E468231cULus Listed, Class 2 Power Source, Type 1 enclosure |
| FCC approval | This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and(2) This device must accept any interference received, including interference that may cause undesired operation.Caution:Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. |
| IC approval | This device complies with Industry Canada licence-exempt RSS standard(s) and with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause interference, and(2) this device must accept any interference, including interference that may cause undesired operation of the device.Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :(1) l'appareil ne doit pas produire de brouillage, et(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. |
| KCC approval | R-R-PF1-IQH3-FP-V1 |
| MIC approval | AC-25117 |
| ACMA approval | CERT-7285 |
| WPC approval | ETA-SD-20230807834 |
| Radio approval | USA: Contains FCC ID IREIQR3FPCanada: Contains IC 7037A-IQR3FP |
| Рабочая температура | -25 ... 70 °C (-13 ... 158 °F) (Operation with nontransmission periods, adjustable)-25 ... 55 °C (-13 ... 131 °F) (Continuous transmission mode) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Connection | connector M12 x 1 |
| Материал | PA 6.6 |
| Материал | WEVO 403FL/300 |
| Installation - Distance between two heads | Multiplex on: ≥ 100 mmMultiplex off: ≥ 750 mm |
| Mass | 385 g |
| Dimensions - Height | 40 mm |
| Dimensions - Width | 80 mm |
| Dimensions - Length | 80 mm |
