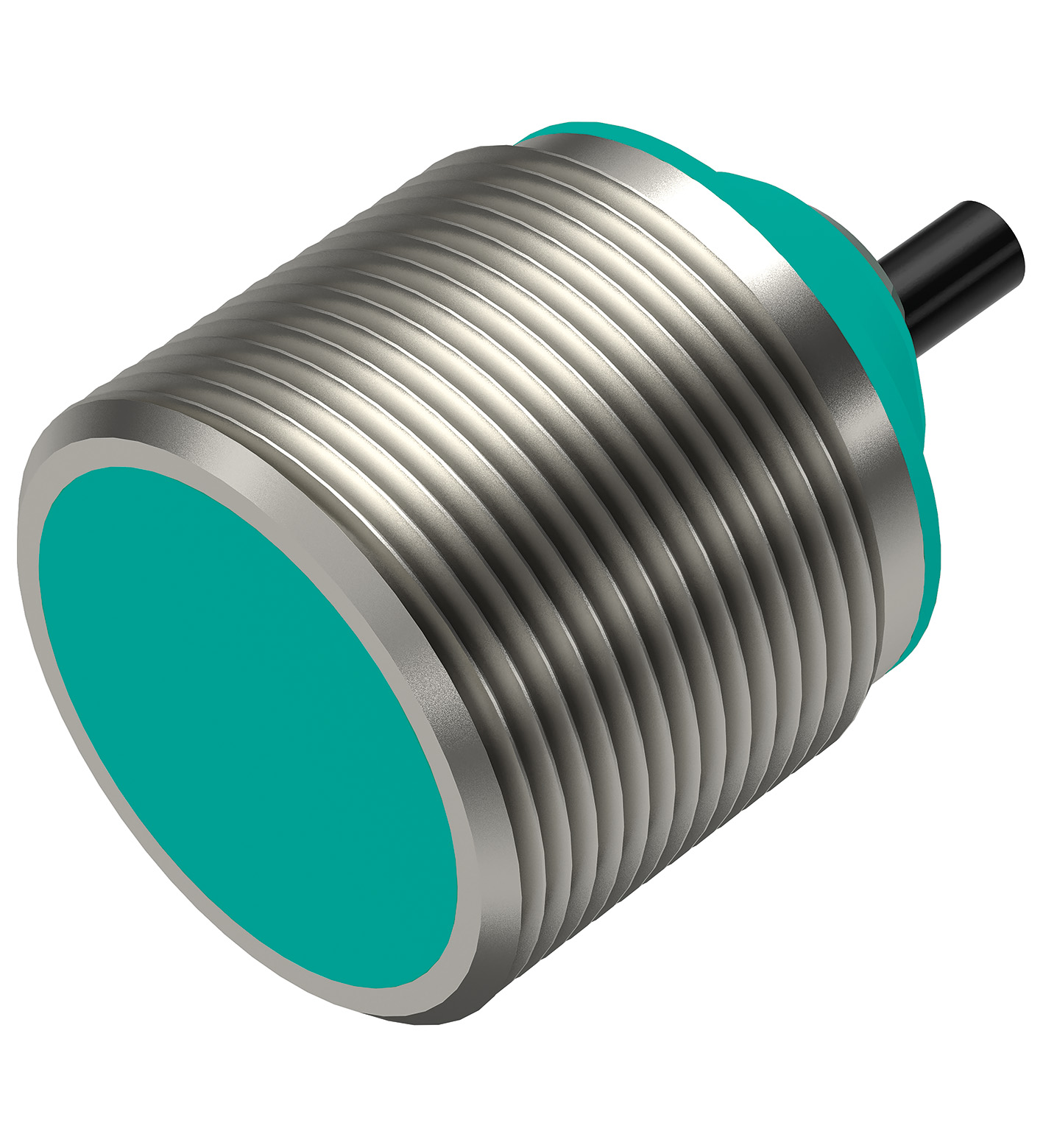

Pepperl+Fuchs SE NBB15-30GM25-E1
Inductive sensor
Категории:
Технические характеристики
| Switching function | Normally closed (NC) |
|---|---|
| Output type | NPN |
| Rated operating distance | 15 mm |
| Installation | flush |
| Output polarity | DC |
| Assured operating distance | 0 ... 12.15 mm |
| Actuating element | mild steel, e. g. 1.0037, SR235JR (formerly St37-2)45 mm x 45 mm x 1 mm |
| Reduction factor rAl | 0.45 |
| Reduction factor rCu | 0.43 |
| Reduction factor r304 | 0.73 |
| Reduction factor rBrass | 0.53 |
| Напряжение питания | 6 ... 36 V |
| Switching frequency | 0 ... 550 Hz |
| Hysteresis | typ. 5 % |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Напряжение питания | ≤ 1 V |
| Operating current | 0 ... 200 mA |
| Off-state current | max. 150 µA |
| No-load supply current | ≤ 10 mA |
| Time delay before availability | ≤ 10 ms |
| Switching state indicator | LED, yellow |
| MTTFd | 1319 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
| PWIS conformity | VDMA 24364-C1/T100°C-W |
| Standard conformity - Standards | EN IEC 60947-5-2 |
| Protection class | II |
| Напряжение питания | 36 V |
| Напряжение питания | 500 V |
| UL approval | cULus ListedLoad Type: General PurposeCircuitry: Class 2 Power SourceEnclosure Type Rating: Type 1Supply/Switching Voltage: 36 V DCOutput Switching Current: 200 mA |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
| Рабочая температура | -40 ... 85 °C (-40 ... 185 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Connection type | cable |
| Материал | brass , white bronze coated |
| Sensing face | PBT , green |
| Degree of protection | IP65 / IP66 / IP67 / IP68 / IP69 |
| Cable - Wire end ferrules | yes |
| Cable - Cable diameter | 4.3 mm ± 0.15 mm |
| Cable - Bending radius | > 10 x cable diameter |
| Материал | PVC |
| Cable - Color | black |
| Cable - Number of cores | 3 |
| Cable - Core cross section | 0.34 mm2 |
| Cable - Length | 2 m |
| Mass | 112 g |
| Dimensions - Length | 35.5 mm |
| Dimensions - Diameter | 30 mm |
| Mounting | with nuts, M30 |
| Tightening torque | ≤ 30 Nm |
| Scope of delivery | 2 self locking nuts in scope of delivery |
