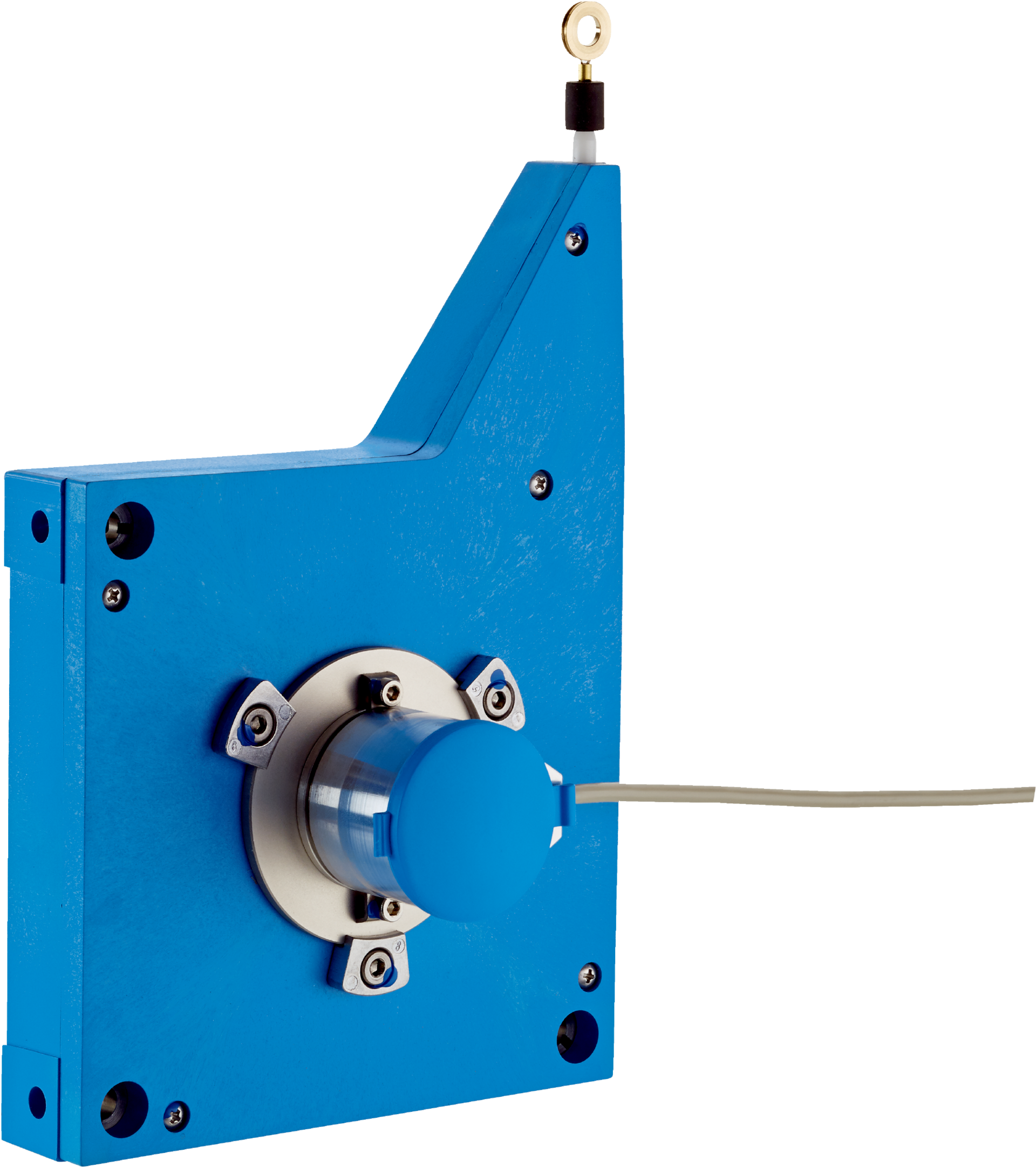

SICK AG BCG13-L1KM05PP
Wire draw encoders BCG13-L1KM05PP
Категории:
Технические характеристики
| Safety-related parameters (MTTF D (mean time to dangerous failure)) | 850 years (EN ISO 13849-1) 1) |
|---|---|
| Performance (Measurement range) | 0 m ... 5 m |
| Performance (Encoder) | Absolute encoders |
| Performance (Resolution (wire draw + encoder)) | 0.1 mm 1) 2) |
| Performance (Repeatability) | ≤ 0.2 mm 3) |
| Performance (Linearity) | ≤ ± 2 mm 3) |
| Performance (Hysteresis) | ≤ 0.4 mm 3) |
| Interfaces (Communication interface) | - / Voltage |
| Interfaces (Signal type) | Analog (voltage) |
| Electronics (Connection type) | Cable, radial, 1.5 m |
| Напряжение питания | 19 V DC ... 33 V DC |
| Electronics (Operating current) | ≤ 80 mA |
| Масса | 1.2 kg |
| Материал | Highly flexible stranded steel 1,4401 stainless steel V4A |
| Mechanics (Measuring wire diameter) | 0.55 mm |
| Масса | 1.2 g/m |
| Материал | Plastic, Noryl |
| Mechanics (Spring return force) | 4.5 N ... 7 N 1) |
| Mechanics (Length of wire pulled out per revolution) | 385 mm |
| Mechanics (Life of wire draw mechanism) | Typ. 1,000,000 cycles 2) 3) |
| Mechanics (Actual wire draw length) | 5.2 m |
| Mechanics (Wire acceleration) | 4 m/s² |
| Mechanics (Operating speed) | 3 m/s |
| Mechanics (Mounted encoder) | ACM36, ACM36-L1K0-K01, 6039752 |
| Mechanics (Mounted mechanic) | MRA-G130-105D3, 5322779 |
| Ambient data (EMC) | According to EN 61000-6-2 and EN 61000-6-4 |
| Степень защиты (IP) | IP50, mounted mechanic IP65, Encoder |
| Ambient data (Operating temperature range) | –30 °C ... +70 °C |
| Сертификация | ✔ |
| Сертификация | ✔ |
| Сертификация | ✔ |
| Сертификация | ✔ |
| Сертификация | ✔ |
| Classifications (ECLASS 5.1.4) | 27270502 |
| Classifications (ECLASS 6.0) | 27270590 |
| Classifications (ECLASS 7.0) | 27270590 |
| Classifications (ECLASS 8.0) | 27270590 |
| Classifications (ECLASS 9.0) | 27270590 |
| Classifications (ECLASS 10.0) | 27270613 |
| Classifications (ECLASS 11.0) | 27270503 |
| Classifications (ECLASS 12.0) | 27270503 |
| Classifications (ECLASS 13.0) | 27270503 |
| Classifications (ECLASS 14.0) | 27270503 |
| Classifications (ECLASS 15.0) | 27270503 |
| Classifications (ETIM 6.0) | EC001486 |
| Classifications (ETIM 7.0) | EC001486 |
| Classifications (ETIM 8.0) | EC001486 |
| Classifications (ETIM 9.0) | EC001486 |
| Classifications (ETIM 10.0) | EC001486 |
| Classifications (UNSPSC 091201.0) | 39121527 |
| Classifications (UNSPSC 100501.0) | 39121527 |
| Classifications (UNSPSC 111201.0) | 39121527 |
| Classifications (UNSPSC 120901.0) | 39121527 |
| Classifications (UNSPSC 131201.0) | 39121527 |
| Classifications (UNSPSC 140801.0) | 39121527 |
| Classifications (UNSPSC 151101.0) | 39121527 |
| Classifications (UNSPSC 160901.0) | 39121527 |
| Classifications (UNSPSC 171001.0) | 39121527 |
| Classifications (UNSPSC 180801.0) | 39121527 |
| Classifications (UNSPSC 190501.0) | 39121527 |
| Classifications (UNSPSC 200601.0) | 39121527 |
| Classifications (UNSPSC 210901.0) | 39121527 |
| Classifications (UNSPSC 220601.0) | 39121527 |
| Classifications (UNSPSC 230701.0) | 39121527 |
| Classifications (UNSPSC 240301.0) | 39121527 |
| Classifications (UNSPSC 250901.0) | 39121527 |
| Classifications (UNSPSC 260801.0) | 39121527 |
