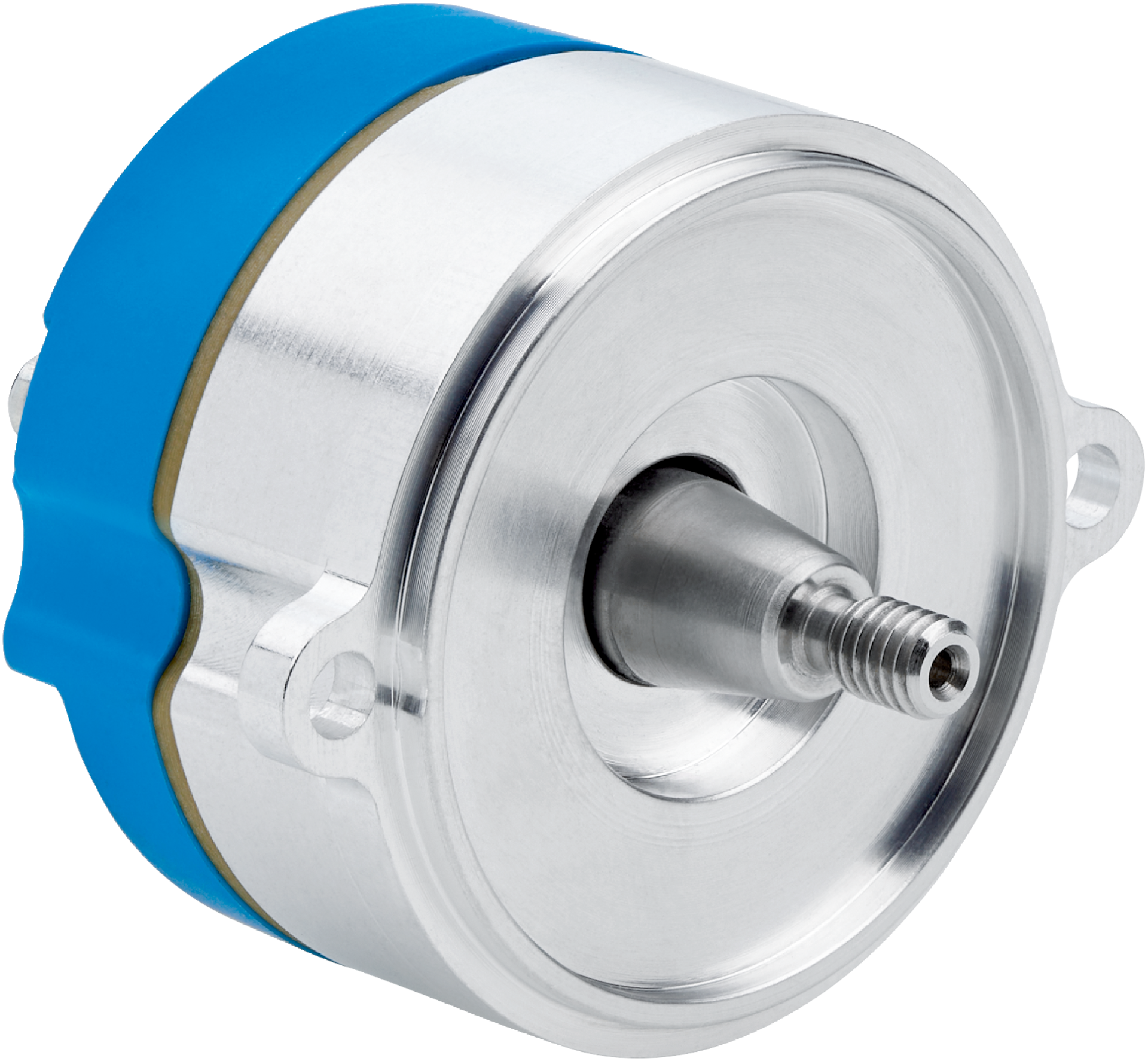

SICK AG ENS35-0KF0B024A
Motor feedback systems ENS35-0KF0B024A
Категории:
Технические характеристики
| Features (Special device) | ✔ |
|---|---|
| Features (Standard reference device) | ENS35-0KF0A024A, 1147115 |
| Features (Items supplied) | M3 mounting screws for encoder housing not included with delivery. |
| Safety-related parameters (MTTF D (mean time to dangerous failure)) | 240 years (EN ISO 13849) 1) |
| Performance (Position Resolution per revolution 24 bit System accuracy ± 280 ″, typical 1) 2) ± 120 ", typical, with calibration 2) Signal noise (σ) ± 1 ″ 3) Number of the absolute ascertainable revolutions 1 Available memory area 7,096 Byte Measurement principle Optical) | Position |
| Performance (Resolution per revolution) | 24 bit |
| Performance (System accuracy) | ± 280 ″, typical 1) |
| Performance (Signal noise (σ)) | ± 1 ″ 3) |
| Performance (Number of the absolute ascertainable revolutions) | 1 |
| Performance (Available memory area) | 7,096 Byte |
| Performance (Measurement principle) | Optical |
| Interfaces (Code sequence) | Increasing, when turning the shaft For clockwise rotation, looking in direction “A” (see dimensional drawing) |
| Interfaces (Communication interface) | HIPERFACE DSL® |
| Interfaces (Initialization time) | ≤ 500 ms 1) |
| Interfaces (Measurement external temperature resistance) | 32 bit value, without prefix (1 Ω) 0 ... 209.600 Ω 2) |
| Electronics (Connection type) | Male connector, 4-pin 1) |
| Напряжение питания | 7 V ... 12 V |
| Напряжение питания | Max. 180 ms 2) |
| Electronics (Current consumption) | ≤ 400 mW 3) |
| Mechanics (Shaft version) | Tapered shaft |
| Mechanics (Dimensions) | See dimensional drawing |
| Mechanics (Centering collar) | 0.7 mm |
| Масса | ≤ 50 g |
| Mechanics (Moment of inertia of the rotor) | 1 gcm² |
| Mechanics (Operating speed) | ≤ 12,000 min⁻¹ |
| Mechanics (Angular acceleration) | ≤ 250,000 rad/s² |
| Mechanics (Permissible movement static) | ± 0.4 mm, axial 1) |
| Mechanics (Permissible movement dynamic) | ± 0.025 mm, radial |
| Ambient data (Operating temperature range) | –40 °C ... +118 °C 1) |
| Ambient data (Storage temperature range) | –40 °C ... +125 °C, without package |
| Ambient data (Relative humidity/condensation) | 90 %, Condensation not permitted |
| Ambient data (Resistance to shocks) | 100 g, 6 ms (EN 60068-2-27) |
| Ambient data (Frequency range of resistance to vibrations) | 50 g, 10 Hz ... 2,000 Hz (EN 60068-2-6) |
| Ambient data (EMC) | According to EN 61000-6-2: 2016, EN 61000-6-4: 2006, IEC 6100-6-7: 2014 2) |
| Степень защиты (IP) | IP30, with mating connector inserted (IEC 60529-1) |
| Сертификация | ✔ |
| Сертификация | ✔ |
| Сертификация | ✔ |
| Сертификация | ✔ |
| Сертификация | ✔ |
| Classifications (ECLASS 5.1.4) | 27270502 |
| Classifications (ECLASS 6.0) | 27270590 |
| Classifications (ECLASS 7.0) | 27270501 |
| Classifications (ECLASS 8.0) | 27270501 |
| Classifications (ECLASS 9.0) | 27270501 |
| Classifications (ECLASS 10.0) | 27273805 |
| Classifications (ECLASS 11.0) | 27273901 |
| Classifications (ECLASS 12.0) | 27273901 |
| Classifications (ECLASS 13.0) | 27273901 |
| Classifications (ECLASS 14.0) | 27273901 |
| Classifications (ECLASS 15.0) | 27273901 |
| Classifications (ETIM 6.0) | EC001486 |
| Classifications (ETIM 7.0) | EC001486 |
| Classifications (ETIM 8.0) | EC001486 |
| Classifications (ETIM 9.0) | EC001486 |
| Classifications (ETIM 10.0) | EC001486 |
| Classifications (UNSPSC 091201.0) | 39121527 |
| Classifications (UNSPSC 100501.0) | 39121527 |
| Classifications (UNSPSC 111201.0) | 39121527 |
| Classifications (UNSPSC 120901.0) | 39121527 |
| Classifications (UNSPSC 131201.0) | 39121527 |
| Classifications (UNSPSC 140801.0) | 39121527 |
| Classifications (UNSPSC 151101.0) | 39121527 |
| Classifications (UNSPSC 160901.0) | 39121527 |
| Classifications (UNSPSC 171001.0) | 39121527 |
| Classifications (UNSPSC 180801.0) | 39121527 |
| Classifications (UNSPSC 190501.0) | 39121527 |
| Classifications (UNSPSC 200601.0) | 39121527 |
| Classifications (UNSPSC 210901.0) | 39121527 |
| Classifications (UNSPSC 220601.0) | 39121527 |
| Classifications (UNSPSC 230701.0) | 39121527 |
| Classifications (UNSPSC 240301.0) | 39121527 |
| Classifications (UNSPSC 250901.0) | 39121527 |
| Classifications (UNSPSC 260801.0) | 39121527 |
