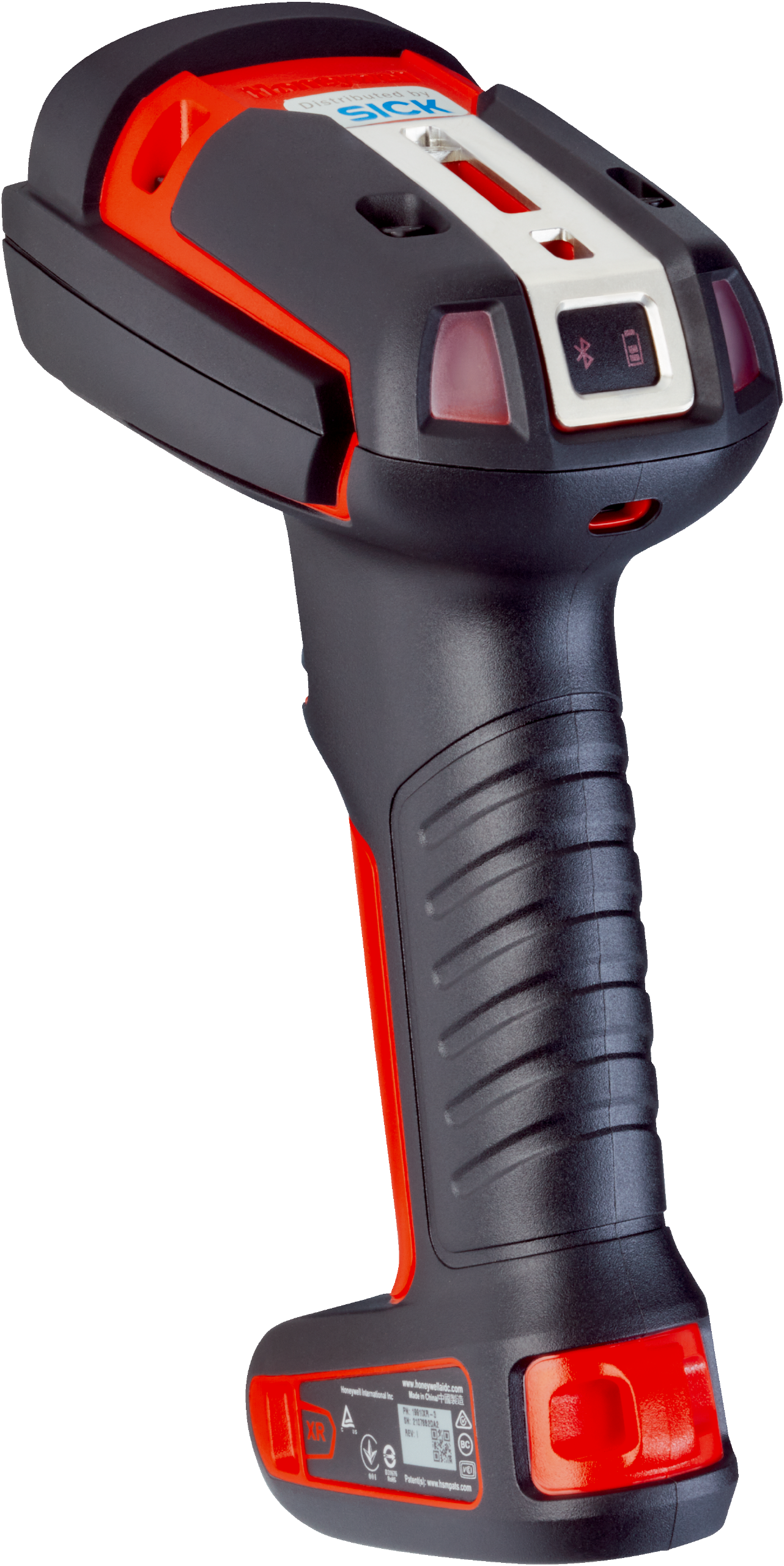

SICK AG HW1990ISR-3
Mobile handheld scanners HW1990ISR-3
Технические характеристики
| Features (Application) | Industrial application |
|---|---|
| Features (Version) | Standard Range |
| Features (Scanner design) | Cable connection variant |
| Features (Sensor resolution) | 1,280 px x 800 px |
| Features (Light source) | LED, Visible, Red, 625 nm |
| Features (Alignment aid) | Laser, Red, 655 nm |
| Features (Reading distance) | 0 mm ... 837 mm |
| Features (Code resolution) | ≥ 0.076 mm 1) ≥ 0.152 mm 2) |
| Напряжение питания | 4 V DC ... 5.5 V DC |
| Mechanics/electronics (Current consumption) | Operation at 5 V DC: 500 mA Standby: 100 mA |
| Материал | Plastic (UL 94 V-0) |
| Mechanics/electronics (Housing color) | Orange, gray |
| Степень защиты (IP) | IP65 IP67 |
| Масса | 320 g |
| Mechanics/electronics (Dimensions (L x W x H)) | 100 mm x 76 mm x 192 mm |
| Performance (Readable code structures) | 1D codes, 2D codes, Stacked, Digimarc® |
| Performance (Bar code types) | Code 39, Code 39 Trioptic, Code 32, Code 93, Code 11, Codabar, Code 128, GS1-128 / EAN 128, UPC / EAN / JAN (with addition), MSI/Plessey, UK/Plessey, IATA, Interleaved 2 of 5, Standard and Industrial 2 of 5, Matrix 2 of 5, Telepen, GS1 DataBar, Australian Post, China Post, German Post, US Planet, US Postnet, British Post, Intelligent Mail, Japan Post, Korean Post, Dutch KIX Post |
| Performance (2D code types) | Data Matrix, QR code, MicroQR-Code, Aztec, MaxiCode, Digimarc, DOT Code, CodaBlock A/F, GS1, Chinese Sensible Code, OCR symbologies |
| Performance (Stacked code types) | PDF417, MicroPDF417, Code 49, Code 16K, Composite, Codablock F |
| Performance (Code alignment) | Omni-directional |
| Performance (Horizontal motion tolerance) | Typ. 450 cm/s |
| Interfaces (Ethernet ✔ , TCP/IP Type of fieldbus integration Optional, over external connection module CDF600-2) | Ethernet |
| Interfaces (Ethernet) | ✔ , TCP/IP |
| Interfaces (Type of fieldbus integration) | Optional, over external connection module CDF600-2 |
| Interfaces (Serial ✔ , RS-232 TTL) | Serial |
| Interfaces (Serial) | ✔ , RS-232 TTL |
| Interfaces (PROFIBUS DP ✔ Type of fieldbus integration Optional over external fieldbus module CDF600-2) | PROFIBUS DP |
| Interfaces (PROFIBUS DP) | ✔ |
| Interfaces (PROFINET ✔ Type of fieldbus integration Optional over external fieldbus module CDF600-2 Function PROFINET Single Port, PROFINET Dual Port) | PROFINET |
| Interfaces (PROFINET) | ✔ |
| Interfaces (Function) | PROFINET Single Port, PROFINET Dual Port |
| Interfaces (EtherCAT® ✔ Type of fieldbus integration Optional over external fieldbus module CDF600) | EtherCAT® |
| Interfaces (EtherCAT®) | ✔ |
| Interfaces (USB ✔ Function Keyboard wedge, COM-Port emulation) | USB |
| Interfaces (USB) | ✔ |
| Interfaces (PS/2 ✔ Function Keyboard wedge) | PS/2 |
| Interfaces (PS/2) | ✔ |
| Interfaces (Optical indicators) | 3 LEDs (good read, charge of battery , radio connection status) |
| Interfaces (Acoustic indicators) | Beeper, can be switched off |
| Interfaces (Vibration) | Yes |
| Interfaces (Configuration software) | EZConfig Tool (≥ V.4.5.35) |
| Ambient data (Shock resistance) | 50 drop samples at –30 °C ... +50 °C from 2 m height on concrete 20 drop samples at 25 °C, 55% rel. air humidity onto concrete from a height of 2.4 m Onto concrete from a height of 3 m |
| Ambient data (Ambient operating temperature) | –30 °C ... +50 °C |
| Ambient data (Storage temperature) | –40 °C ... +70 °C |
| Ambient data (Relative humidity) | 95 %, Non-condensing |
| Ambient data (Ambient light immunity) | 100,000 lx |
| Ambient data (Bar code print contrast (PCS)) | ≥ 20 % |
| General notes (Note) | A connecting cable and possibly a power supply unit are still required for commissioning. |
| Classifications (ECLASS 5.1.4) | 27280101 |
| Classifications (ECLASS 6.0) | 27280101 |
| Classifications (ECLASS 7.0) | 27280101 |
| Classifications (ECLASS 8.0) | 27280101 |
| Classifications (ECLASS 9.0) | 27280101 |
| Classifications (ECLASS 10.0) | 27280101 |
| Classifications (ECLASS 11.0) | 27280101 |
| Classifications (ECLASS 12.0) | 27280101 |
| Classifications (ECLASS 13.0) | 27280101 |
| Classifications (ECLASS 14.0) | 27280101 |
| Classifications (ECLASS 15.0) | 27280101 |
| Classifications (ETIM 6.0) | EC002550 |
| Classifications (ETIM 7.0) | EC002550 |
| Classifications (ETIM 8.0) | EC002550 |
| Classifications (ETIM 9.0) | EC002550 |
| Classifications (ETIM 10.0) | EC002550 |
| Classifications (UNSPSC 091201.0) | 43211701 |
| Classifications (UNSPSC 100501.0) | 43211701 |
| Classifications (UNSPSC 111201.0) | 43211701 |
| Classifications (UNSPSC 120901.0) | 43211701 |
| Classifications (UNSPSC 131201.0) | 43211701 |
| Classifications (UNSPSC 140801.0) | 43211701 |
| Classifications (UNSPSC 151101.0) | 43211701 |
| Classifications (UNSPSC 160901.0) | 43211701 |
| Classifications (UNSPSC 171001.0) | 43211701 |
| Classifications (UNSPSC 180801.0) | 43211701 |
| Classifications (UNSPSC 190501.0) | 43211701 |
| Classifications (UNSPSC 200601.0) | 43211701 |
| Classifications (UNSPSC 210901.0) | 43211701 |
| Classifications (UNSPSC 220601.0) | 43211701 |
| Classifications (UNSPSC 230701.0) | 43211701 |
| Classifications (UNSPSC 240301.0) | 43211701 |
| Classifications (UNSPSC 250901.0) | 43211701 |
| Classifications (UNSPSC 260801.0) | 43211701 |
