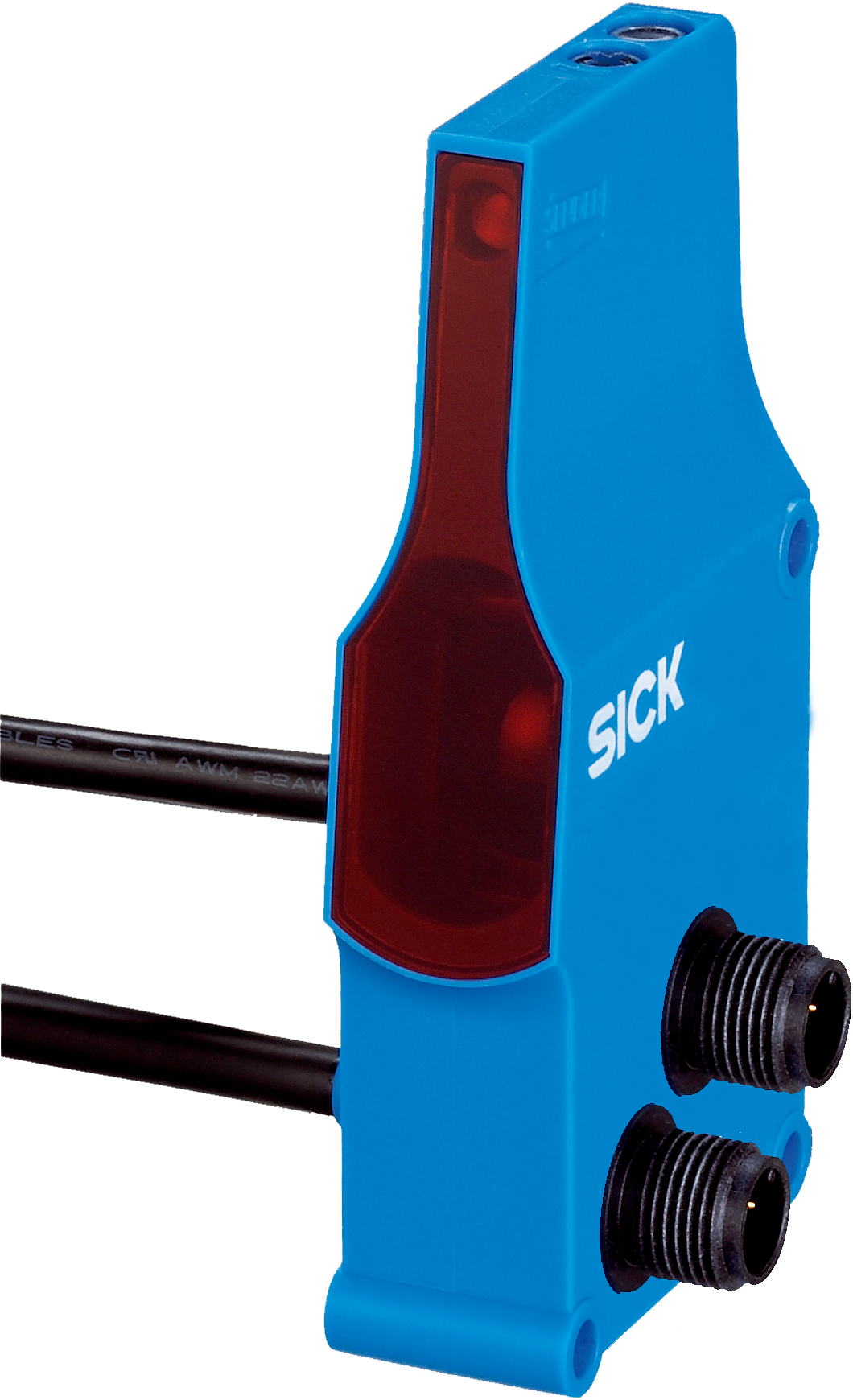

SICK AG IRX-P232C83S21
Фотоэлектрические датчики IRX-P232C83S21
Категории:
Технические характеристики
| Features (Actuator) | Electrical |
|---|---|
| Features (Max. number of sensors) | Approx. 30 1) Approx. 50 2) |
| Features (Logical principle of operation) | Single accumulation with sleep |
| Features (Type of Release) | Single release |
| Features (Dimensions (W x H x D)) | 20.6 mm x 99.2 mm x 48.9 mm |
| Features (Adjustment) | Potentiometer, 9 turns |
| Features (Special applications) | ZoneControl |
| Напряжение питания | 10 V DC ... 30 V DC 1) |
| Mechanics/electronics (Ripple) | < 5 V pp 2) |
| Mechanics/electronics (Current consumption) | 20 mA 3) |
| Mechanics/electronics (Switching output) | PNP |
| Напряжение питания | Approx. V S – 0.5 V / 0 V |
| Mechanics/electronics (Output current I max.) | ≤ 100 mA |
| Время отклика | 2 ms |
| Mechanics/electronics (Switching frequency) | 250 Hz |
| Mechanics/electronics (Connection type) | 2 x male connector, M12, 4-pin, A-coded |
| Mechanics/electronics (Connection type for daisy chain) | 1 x cable with female connector, M12, 4-pin, A-coded, 2 m; 1 x cable with female connector, M12, 4-pin, A-coded, 300 mm |
| Mechanics/electronics (Circuit protection) | A 4) C 5) D 6) |
| Mechanics/electronics (Protection class) | III |
| Масса | 175 g |
| Материал | Plastic, ABS |
| Степень защиты (IP) | IP67 |
| Mechanics/electronics (Shock and vibration resistance) | According to IEC 68 |
| Mechanics/electronics (Ambient operating temperature) | –40 °C ... +60 °C |
| Mechanics/electronics (Ambient temperature, storage) | –40 °C ... +75 °C |
| Mechanics/electronics (UL File No.) | NRKH.E189383 & NRKH7.E189383 |
| Mechanics/electronics (Mode of operation solenoid valve) | HIGH to Drive |
| Сертификация | ✔ |
| Сертификация | ✔ |
| Сертификация | ✔ |
| Classifications (ECLASS 5.1.4) | 27270903 |
| Classifications (ECLASS 6.0) | 27270903 |
| Classifications (ECLASS 7.0) | 27270903 |
| Classifications (ECLASS 8.0) | 27270903 |
| Classifications (ECLASS 9.0) | 27270903 |
| Classifications (ECLASS 10.0) | 27270903 |
| Classifications (ECLASS 11.0) | 27270903 |
| Classifications (ECLASS 12.0) | 27270903 |
| Classifications (ECLASS 13.0) | 27270903 |
| Classifications (ECLASS 14.0) | 27270903 |
| Classifications (ECLASS 15.0) | 27270903 |
| Classifications (ETIM 6.0) | EC002719 |
| Classifications (ETIM 7.0) | EC002719 |
| Classifications (ETIM 8.0) | EC002719 |
| Classifications (ETIM 9.0) | EC002719 |
| Classifications (ETIM 10.0) | EC002719 |
| Classifications (UNSPSC 091201.0) | 32151804 |
| Classifications (UNSPSC 100501.0) | 32151804 |
| Classifications (UNSPSC 111201.0) | 32151804 |
| Classifications (UNSPSC 120901.0) | 32151804 |
| Classifications (UNSPSC 131201.0) | 32151804 |
| Classifications (UNSPSC 140801.0) | 32151804 |
| Classifications (UNSPSC 151101.0) | 32151804 |
| Classifications (UNSPSC 160901.0) | 32151804 |
| Classifications (UNSPSC 171001.0) | 32151804 |
| Classifications (UNSPSC 180801.0) | 32151804 |
| Classifications (UNSPSC 190501.0) | 32151804 |
| Classifications (UNSPSC 200601.0) | 32151804 |
| Classifications (UNSPSC 210901.0) | 32151804 |
| Classifications (UNSPSC 220601.0) | 32151804 |
| Classifications (UNSPSC 230701.0) | 32151804 |
| Classifications (UNSPSC 240301.0) | 32151804 |
| Classifications (UNSPSC 250901.0) | 32151804 |
| Classifications (UNSPSC 260801.0) | 32151804 |
