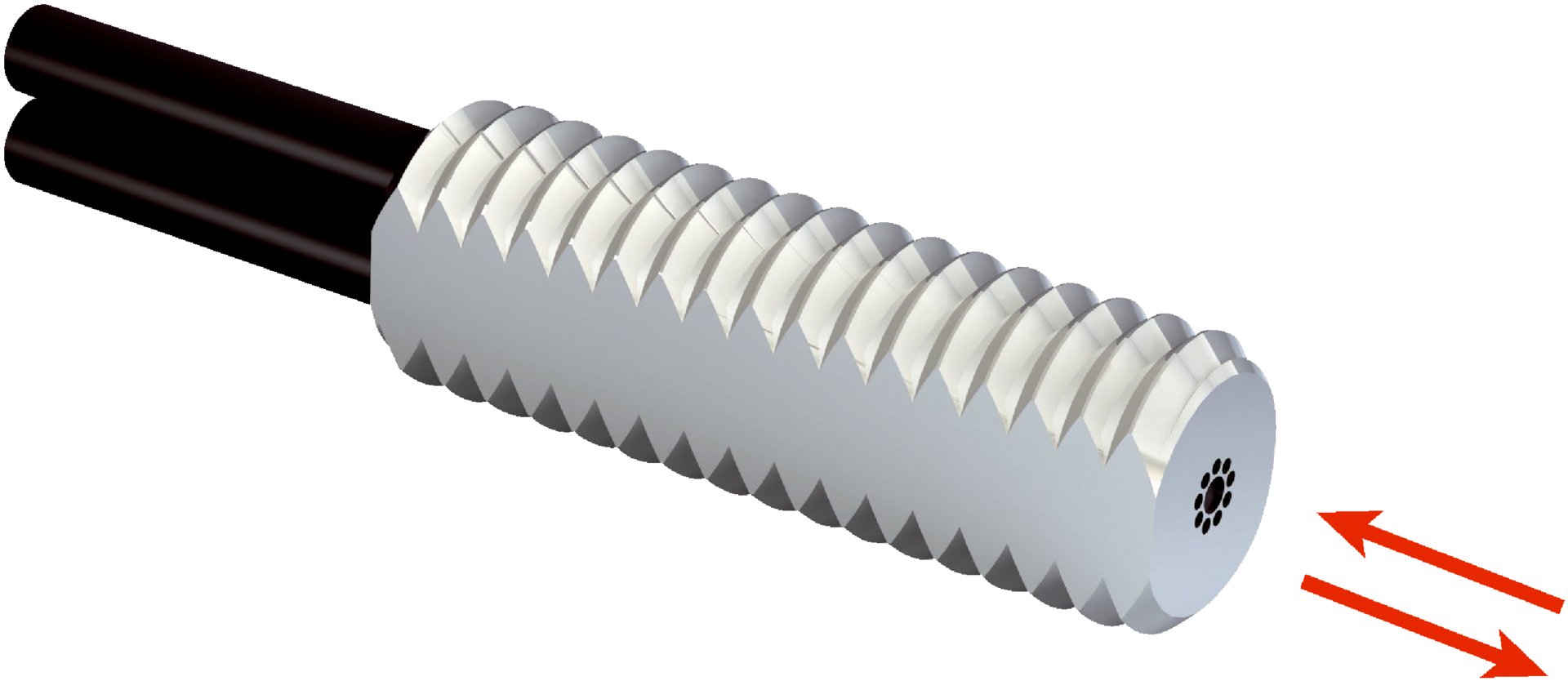

SICK AG LL3-DM02500
Fiber-optic sensors LL3-DM02500
Категории:
Технические характеристики
| Features (Device type) | Fiber-optic cables |
|---|---|
| Features (Functional principle) | Proximity system |
| Features (Fiber-optic head design) | Threaded sleeve |
| Features (Application) | Standard |
| Features (Special features) | Halogen-free |
| Features (Compatible fiber-optic amplifiers) | GLL70, WLL80, WLL180, GLL170(T), WLL24 Ex |
| Features (Sensing range max.) | 710 mm (Sensing range of WLL80 at 8 ms) |
| Features (Minimal object diameter) | 0.015 mm 1) |
| Features (Optical fiber head Angle of dispersion 60° Integrated lens No Compatibility tip adapters Yes) | Optical fiber head |
| Features (Angle of dispersion) | 60° |
| Features (Integrated lens) | No |
| Features (Compatibility tip adapters) | Yes |
| Features (Optical fiber Compatibility with infrared light No Optical fiber cable can be shortened ✔ Adapter end sleeves required Yes) | Optical fiber |
| Features (Compatibility with infrared light) | No |
| Features (Optical fiber cable can be shortened) | ✔ |
| Features (Adapter end sleeves required) | Yes |
| Features (Included with delivery) | Mounting, 2 x M4 hexagon nut, 2 x washer, adapter sleeves, BF-WLL160-13 (1.3 mm) adapter sleeves |
| Features (For fiber-optic) | LL3-DA06, LL3-DA09 |
| Mechanics (Optical fiber head Light emission Axial Thread diameter (housing) M4) | Optical fiber head |
| Mechanics (Light emission) | Axial |
| Mechanics (Thread diameter (housing)) | M4 |
| Mechanics (Optical fiber Fiber length 500 mm Bending radius 15 mm Dynamic flexibility (robotics) No Outside diameter, optical fiber cable connection 1.3 mm Fiber arrangement Coaxial Core structure S: Ø 0,5 mm, R: 9 x Ø 0,25 mm 1) Coaxial) | Optical fiber |
| Mechanics (Fiber length) | 500 mm |
| Mechanics (Bending radius) | 15 mm |
| Mechanics (Dynamic flexibility (robotics)) | No |
| Mechanics (Outside diameter, optical fiber cable connection) | 1.3 mm |
| Mechanics (Fiber arrangement) | Coaxial |
| Mechanics (Core structure) | S: Ø 0,5 mm, R: 9 x Ø 0,25 mm 1) Coaxial |
| Материал | Material |
| Mechanics (Optical fiber head) | Stainless steel |
| Mechanics (Sheath) | Polyethylen (PE) |
| Mechanics (Fibers) | Polymethylmethacrylat (PMMA) |
| Масса | 10 g |
| Ambient data (Ambient operating temperature) | –40 °C ... +70 °C |
| Sensing ranges with WLL80 (Operating mode 16 µs) | 45 mm |
| Sensing ranges with WLL80 (Operating mode 70 µs) | 170 mm |
| Sensing ranges with WLL80 (Operating mode 250 µs) | 265 mm |
| Sensing ranges with WLL80 (Operating mode 500 µs) | 320 mm |
| Sensing ranges with WLL80 (Operating mode 1 ms) | 380 mm |
| Sensing ranges with WLL80 (Operating mode 2 ms) | 505 mm |
| Sensing ranges with WLL80 (Operating mode 8 ms) | 710 mm |
| Sensing ranges with WLL80 (Note) | Sensing ranges related to fiber-optic sensors with type of light: visible red light |
| Sensing ranges with WLL180T (Operating mode 16 µs) | 40 mm |
| Sensing ranges with WLL180T (Operating mode 70 µs) | 130 mm |
| Sensing ranges with WLL180T (Operating mode 250 µs) | 200 mm |
| Sensing ranges with WLL180T (Operating mode 2 ms) | 350 mm |
| Sensing ranges with WLL180T (Operating mode 8 ms) | 600 mm |
| Sensing ranges with WLL180T (Note) | Sensing ranges related to fiber-optic sensors with type of light: visible red light |
| Sensing ranges with GLL170 (Operating mode 250 µs) | 80 mm |
| Sensing ranges with GLL170T (Operating mode 50 µs) | 80 mm |
| Sensing ranges with GLL170T (Operating mode 250 µs) | 140 mm |
| Sensing ranges with KTL180 (Operating mode 16 µs) | 2 mm |
| Sensing ranges with KTL180 (Operating mode 200 µs) | 2 mm |
| Sensing ranges with KTL180 (When using LL3-DA06) | 16 mm |
| Sensing ranges with KTL180 (When using LL3-DA09) | 6 mm |
| Classifications (ECLASS 5.1.4) | 27270905 |
| Classifications (ECLASS 6.0) | 27270905 |
| Classifications (ECLASS 7.0) | 27270905 |
| Classifications (ECLASS 8.0) | 27270905 |
| Classifications (ECLASS 9.0) | 27270905 |
| Classifications (ECLASS 10.0) | 27270905 |
| Classifications (ECLASS 11.0) | 27270905 |
| Classifications (ECLASS 12.0) | 27270905 |
| Classifications (ECLASS 13.0) | 27270905 |
| Classifications (ECLASS 14.0) | 27270905 |
| Classifications (ECLASS 15.0) | 27270905 |
| Classifications (ETIM 6.0) | EC002651 |
| Classifications (ETIM 7.0) | EC002651 |
| Classifications (ETIM 8.0) | EC002651 |
| Classifications (ETIM 9.0) | EC002651 |
| Classifications (ETIM 10.0) | EC002651 |
| Classifications (UNSPSC 091201.0) | 39121528 |
| Classifications (UNSPSC 100501.0) | 39121528 |
| Classifications (UNSPSC 111201.0) | 39121528 |
| Classifications (UNSPSC 120901.0) | 39121528 |
| Classifications (UNSPSC 131201.0) | 39121528 |
| Classifications (UNSPSC 140801.0) | 39121528 |
| Classifications (UNSPSC 151101.0) | 39121528 |
| Classifications (UNSPSC 160901.0) | 39121528 |
| Classifications (UNSPSC 171001.0) | 39121528 |
| Classifications (UNSPSC 180801.0) | 39121528 |
| Classifications (UNSPSC 190501.0) | 39121528 |
| Classifications (UNSPSC 200601.0) | 39121528 |
| Classifications (UNSPSC 210901.0) | 39121528 |
| Classifications (UNSPSC 220601.0) | 39121528 |
| Classifications (UNSPSC 230701.0) | 39121528 |
| Classifications (UNSPSC 240301.0) | 39121528 |
| Classifications (UNSPSC 250901.0) | 39121528 |
| Classifications (UNSPSC 260801.0) | 39121528 |
