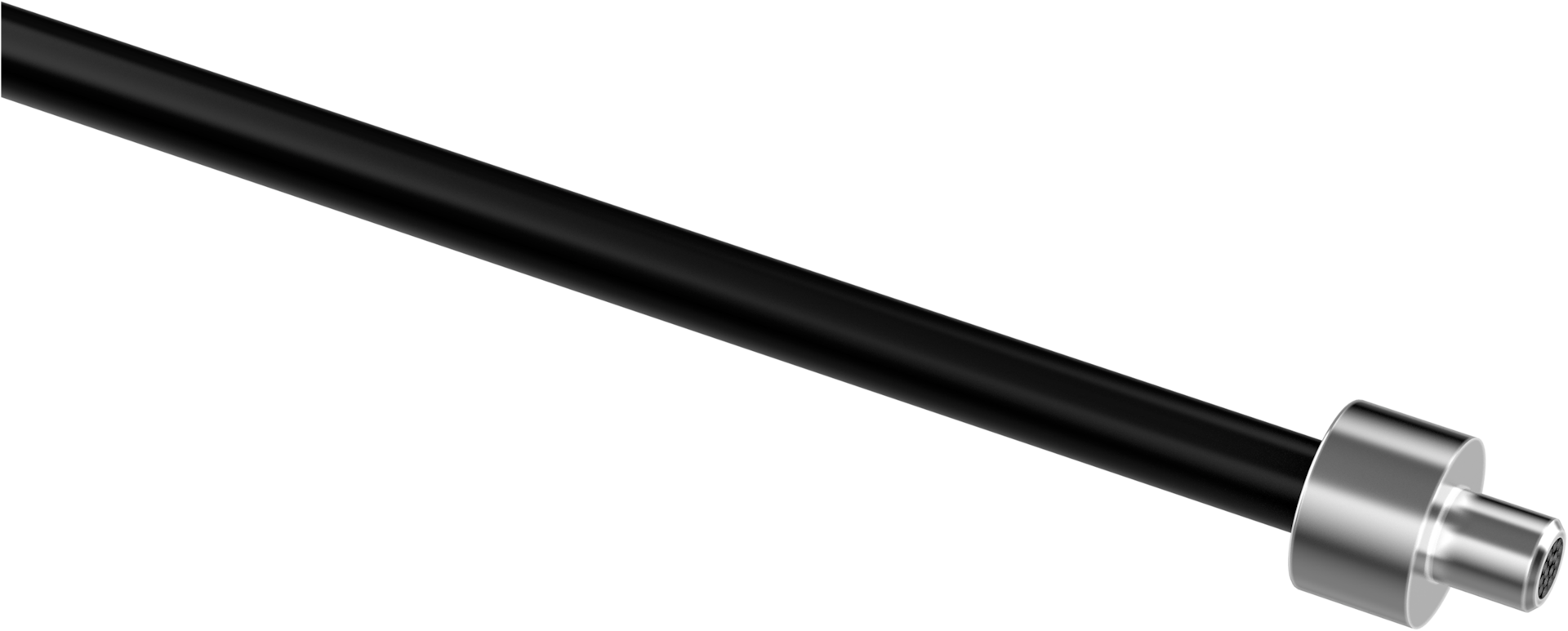

SICK AG LLSE-A2000111030F3S03
Fiber-optic sensors LLSE-A2000111030F3S03
Категории:
Технические характеристики
| Features (Device type) | Fiber-optic cables |
|---|---|
| Features (Functional principle) | Through-beam system, consisting of a sender and a receiver |
| Features (Fiber-optic head design) | Smooth sleeve custom shape |
| Features (Application) | Standard |
| Features (Compatible fiber-optic amplifiers) | GLL70, WLL80, WLL180, GLL170(T), WLL24 Ex |
| Features (Sensing range max.) | Depending on the fiber optic amplifier used |
| Features (Optical fiber head Angle of dispersion 60° Integrated lens No Compatibility tip adapters No) | Optical fiber head |
| Features (Angle of dispersion) | 60° |
| Features (Integrated lens) | No |
| Features (Compatibility tip adapters) | No |
| Features (Optical fiber Compatibility with infrared light No Optical fiber cable can be shortened ✔ Adapter end sleeves required No) | Optical fiber |
| Features (Compatibility with infrared light) | No |
| Features (Optical fiber cable can be shortened) | ✔ |
| Features (Adapter end sleeves required) | No |
| Features (Items supplied) | 1 x fiber cutter (LLAC-FC) |
| Mechanics (Optical fiber head Light emission Axial) | Optical fiber head |
| Mechanics (Light emission) | Axial |
| Mechanics (Optical fiber Fiber length 3,000 mm Bending radius 5 mm Dynamic flexibility (robotics) No Outside diameter, optical fiber cable connection 2.2 mm Fiber arrangement Multi-fiber Core structure 16 x Ø 0,255 mm Multi-fiber) | Optical fiber |
| Mechanics (Fiber length) | 3,000 mm |
| Mechanics (Bending radius) | 5 mm |
| Mechanics (Dynamic flexibility (robotics)) | No |
| Mechanics (Outside diameter, optical fiber cable connection) | 2.2 mm |
| Mechanics (Fiber arrangement) | Multi-fiber |
| Mechanics (Core structure) | 16 x Ø 0,255 mm Multi-fiber |
| Материал | Material |
| Mechanics (Optical fiber head) | Stainless steel |
| Mechanics (Sheath) | Polyethylen (PE) |
| Mechanics (Fibers) | PMMA |
| Ambient data (Ambient operating temperature) | –40 °C ... +60 °C |
| Сертификация | ✔ |
