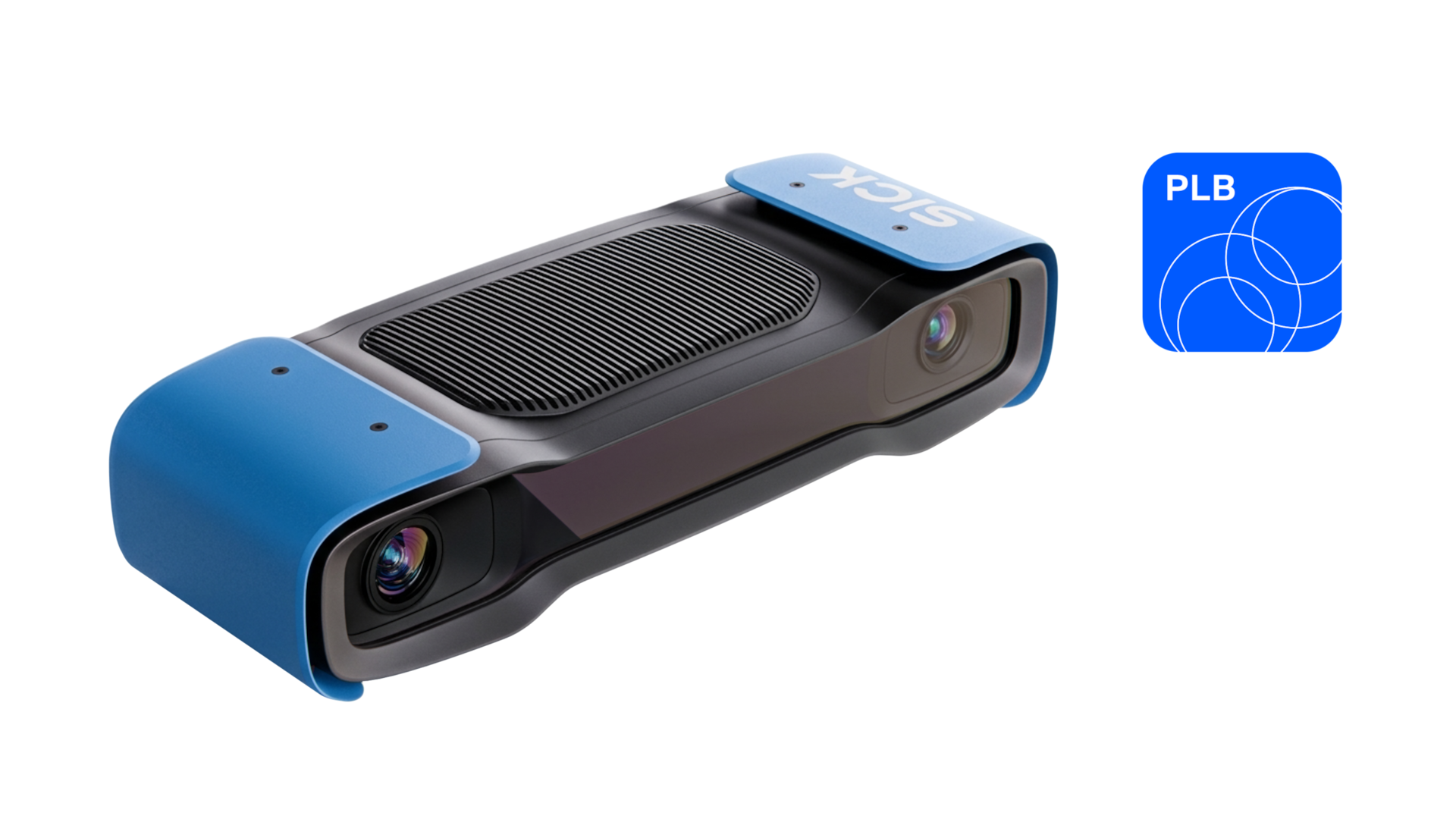

SICK AG PLB-51C0100
Robot guidance systems PLB-51C0100
Технические характеристики
| Features (Product version) | PLB-537 |
|---|---|
| Features (Field of view) | Large |
| Features (Classification) | Pro |
| Features (Tasks) | Position determination |
| Features (Applications) | Robot guidance |
| Features (Camera type) | 3D snapshot |
| Features (Example volume of view (L x W x H)) | See technical drawing 'Detection volume and field of view' for min/max FoV |
| Features (Image resolution) | See technical drawing 'Detection volume and field of view' for min/max resolution |
| Features (Light source LED white, red or blue) | Light source |
| Features (LED class) | Risk group 2 |
| Features (3D CAD format) | IGES, STEP |
| Features (Localization principle) | CAD-model, geometrical shape and edge localization |
| Features (Technology) | 3D snapshot, image analysis |
| Mechanics/electronics (Connection type) | Plug connector, M12, 5-pin |
| Напряжение питания | 24 V DC, ± 20 % |
| Mechanics/electronics (Current consumption) | 5 A |
| Mechanics/electronics (Dimensions (L x W x H)) | 347 mm x 133 mm x 70 mm |
| Масса | 2,700 g |
| Степень защиты (IP) | IP65 |
| Performance (Part localization time) | 0.5 s ... 10 s, typical |
| Performance (Part size) | Depends on part geometry and application |
| Performance (Part characteristics) | Simple and complex part shapes |
| Performance (2D colour sensor resolution) | 2 MP (1408 px x 1408 px) |
| Performance (3D sensor resolution) | 5 MP (2816 px x 2816 px) |
| Interfaces (Ethernet ✔ (2) , camera <--> PC, PC<--> robot Data transmission rate 10 Gbit/s (camera), 10/100 Mbit/s (robot) Protocol TCP/IP (camera) Electrical connection RJ45) | Ethernet |
| Interfaces (Ethernet) | ✔ (2) , camera <--> PC, PC<--> robot |
| Interfaces (Data transmission rate) | 10 Gbit/s (camera), 10/100 Mbit/s (robot) |
| Interfaces (Protocol) | TCP/IP (camera) |
| Interfaces (Electrical connection) | RJ45 |
| Рабочая температура | 0 °C ... +45 °C, Non-condensing |
| Ambient data (Shock load) | 15 g / 11 ms 1) |
| Ambient data (Vibration load) | 10-150 Hz / 5 g 2) |
| General notes (Items supplied) | Zivid 3 XL250 camera PLB Application Software |
| General notes (Factory calibrated) | ✔ |
| Сертификация | ✔ |
| Classifications (ECLASS 5.1.4) | 0 |
| Classifications (ECLASS 6.0) | 0 |
| Classifications (ECLASS 7.0) | 0 |
| Classifications (ECLASS 8.0) | 0 |
| Classifications (ECLASS 9.0) | 0 |
| Classifications (ECLASS 10.0) | 0 |
| Classifications (ECLASS 11.0) | 27381591 |
| Classifications (ECLASS 12.0) | 27381591 |
| Classifications (ECLASS 13.0) | 27381591 |
| Classifications (ECLASS 14.0) | 27381591 |
| Classifications (ECLASS 15.0) | 27381591 |
| Classifications (ETIM 7.0) | EC003554 |
| Classifications (ETIM 8.0) | EC003554 |
| Classifications (ETIM 9.0) | EC003554 |
| Classifications (ETIM 10.0) | EC003554 |
| Classifications (UNSPSC 091201.0) | 23153200 |
| Classifications (UNSPSC 100501.0) | 23153200 |
| Classifications (UNSPSC 111201.0) | 23153200 |
| Classifications (UNSPSC 120901.0) | 23153200 |
| Classifications (UNSPSC 131201.0) | 23153200 |
| Classifications (UNSPSC 140801.0) | 23153200 |
| Classifications (UNSPSC 151101.0) | 23153200 |
| Classifications (UNSPSC 160901.0) | 23153200 |
| Classifications (UNSPSC 171001.0) | 23153200 |
| Classifications (UNSPSC 180801.0) | 23153200 |
| Classifications (UNSPSC 190501.0) | 23153200 |
| Classifications (UNSPSC 200601.0) | 23153200 |
| Classifications (UNSPSC 210901.0) | 23153200 |
| Classifications (UNSPSC 220601.0) | 23153200 |
| Classifications (UNSPSC 230701.0) | 23153200 |
| Classifications (UNSPSC 240301.0) | 23153200 |
| Classifications (UNSPSC 250901.0) | 23153200 |
| Classifications (UNSPSC 260801.0) | 23153200 |
