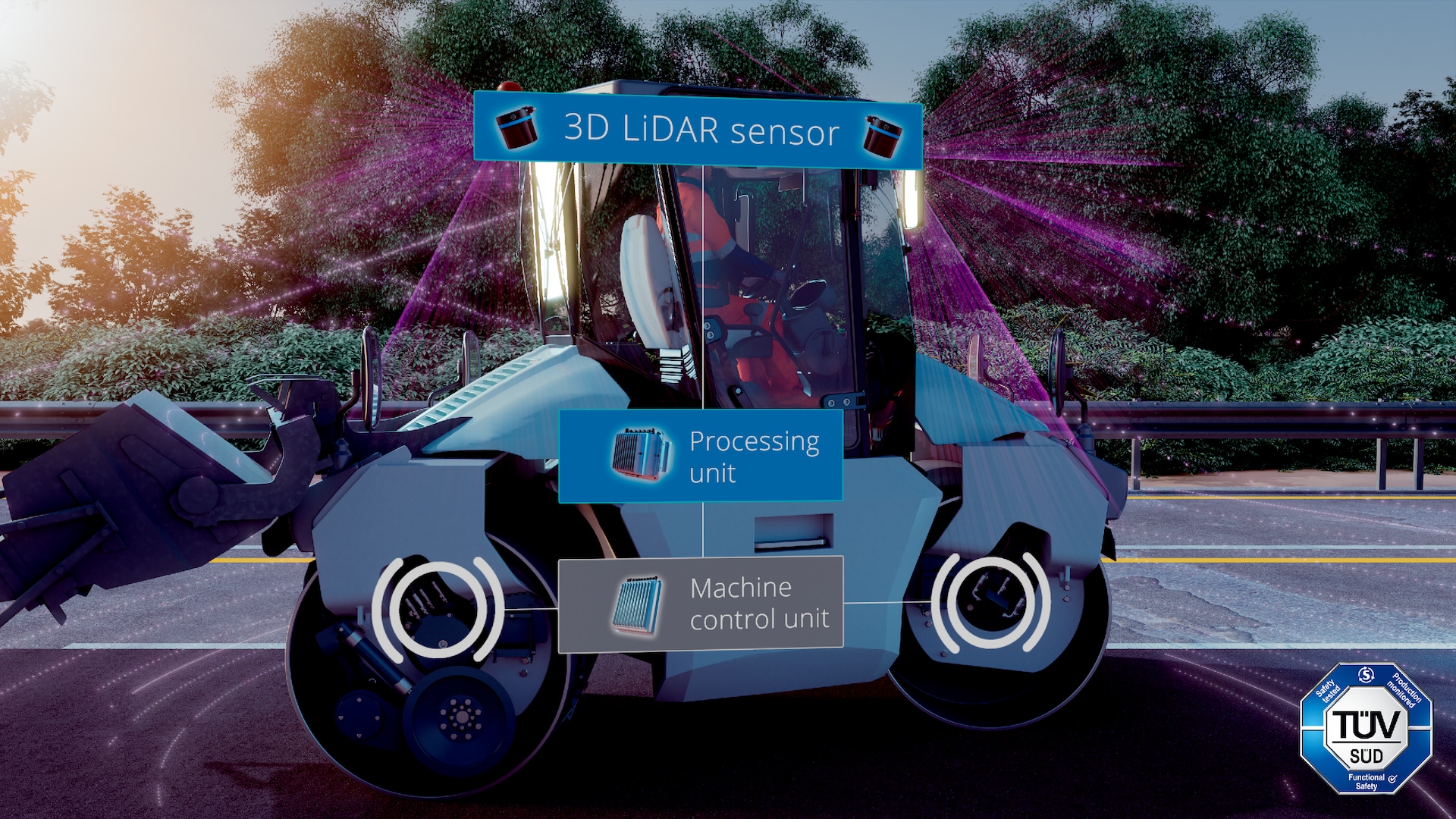

SICK AG SAFE-BRAKE-ASSIST
Safety systems Safe Brake Assist
Категории:
Технические характеристики
| Features (Scanning rate/output signal frequency) | 20 Hz |
|---|---|
| Features (Aperture angle) | Horizontal: ≤ 180° in the application / 360° (max.) vertical: 65° (+22.5° to –42.5°) |
| Features (Angular resolution) | Horizontal: 0.125° (NAV plane) & 1° vertical: 2.5° (between a NAV plane and another plane) & 5° |
| Features (Scanning range for 9% remission @ 100 kLux (safety-related)) | 0.5 m ... 4.5 m (distance relative to the front of the machine) |
| Features (Scanning range for 9% remission @ 10 kLux (safety-related)) | 0.5 m ... 4.0 m (distance relative to the front of the machine) |
| Features (Working range (sensor)) | 0.5 m ... 60 m |
| Features (Areas of application) | Outdoor area |
| Features (Vehicles) | Construction machinery, Agricultural machinery |
| Features (Laser class) | 1 (EN 60825-1:2014, IEC 60825-1:2014) |
| Features (Light source) | Infrared (wavelength: 850 nm) |
| Масса | 3.1 kg, APU: 2.4 kg; multiScan: 0.7 kg; no connecting cables |
| Напряжение питания | 8 V DC ... 17 V DC Adaptation to 24 V DC possible (DC-DC converter) |
| Mechanics/electronics (EMC) | ISO 7637-1 & ISO 7637-2 ISO 16750-2 (voltage peak) ISO 13766-2 |
| Mechanics/electronics (Power consumption) | ≤ 80 W, Idle: ~36 W |
| Степень защиты (IP) | IP65 (Industrial PC) IP69K (3D LiDAR sensors) |
| Performance (Functions) | Output of safe distance signal via CAN bus Object position in the Cartesian coordinate system |
| Performance (Monitored area) | Rear of vehicle, front of vehicle with dynamically calculated travel path of the machine |
| Время отклика | < 300 ms 1) |
| Performance (Detection capability) | Worst-case object according to IEC 62998: Kneeling person (diameter: 190 mm, height: 1,139 mm, remission factor: 6%) For more details, see the operating instructions |
| Interfaces (CAN (APU) 1x CAN 2.0 A/B (M12 male connector) Data transmission rate 250 kbit/sBaud rate (standard)) | CAN (APU) |
| Interfaces (CAN (APU)) | 1x CAN 2.0 A/B (M12 male connector) |
| Interfaces (Data transmission rate) | 250 kbit/sBaud rate (standard) |
| Interfaces (Ethernet (APU) 1x GbE 1000 Base-TX, 4 x GbE PoE For service: 1 x GbE port (M12 male connector, X-coded)) | Ethernet (APU) |
| Interfaces (Ethernet (APU)) | 1x GbE 1000 Base-TX, 4 x GbE PoE For service: 1 x GbE port (M12 male connector, X-coded) |
| Ambient data (Ambient operating temperature) | –30 °C ... +50 °C Accessories are required for operation during maximum solar heating |
| Ambient data (Ambient temperature, storage) | –40 °C ... +85 °C |
| Ambient data (Ambient light immunity) | 100,000 lx |
| Ambient data (Shock resistance (DIN EN 60068-2-27)) | 30 g 11 ms 1) |
| General notes (Items supplied) | The components of the safety system are ordered via their individual part numbers. Proper use and functional scope is only assured if assembled and commissioned according to the operating instructions. The safety distance signal of the system needs to be integrated into the overall control system of the particular machine. 2 x multiScan 136 (3D LiDAR sensor, variant for this safety system) 1 x APU Application Processing Unit (industrial PC for data processing) 2 x DC-DC voltage converter (voltage converter for on-board power) 2 x Ethernet cable (data cable - sensors to IPC) |
| Сертификация | ✔ |
| Сертификация | ✔ |
| Classifications (ECLASS 5.1.4) | 27279090 |
| Classifications (ECLASS 6.0) | 27279090 |
| Classifications (ECLASS 7.0) | 27279090 |
| Classifications (ECLASS 8.0) | 27279090 |
| Classifications (ECLASS 9.0) | 27279090 |
| Classifications (ECLASS 10.0) | 27279090 |
| Classifications (ECLASS 11.0) | 27279090 |
| Classifications (ECLASS 12.0) | 27279090 |
| Classifications (ECLASS 13.0) | 27279090 |
| Classifications (ECLASS 14.0) | 27279090 |
| Classifications (ECLASS 15.0) | 27279090 |
| Classifications (ETIM 6.0) | EC002467 |
| Classifications (ETIM 7.0) | EC002467 |
| Classifications (ETIM 8.0) | EC002467 |
| Classifications (ETIM 9.0) | EC002467 |
| Classifications (ETIM 10.0) | EC002467 |
| Classifications (UNSPSC 091201.0) | 32151705 |
| Classifications (UNSPSC 100501.0) | 32151705 |
| Classifications (UNSPSC 111201.0) | 32151705 |
| Classifications (UNSPSC 120901.0) | 32151705 |
| Classifications (UNSPSC 131201.0) | 32151705 |
| Classifications (UNSPSC 140801.0) | 32151705 |
| Classifications (UNSPSC 151101.0) | 32151705 |
| Classifications (UNSPSC 160901.0) | 32151705 |
| Classifications (UNSPSC 171001.0) | 32151705 |
| Classifications (UNSPSC 180801.0) | 32151705 |
| Classifications (UNSPSC 190501.0) | 32151705 |
| Classifications (UNSPSC 200601.0) | 32151705 |
| Classifications (UNSPSC 210901.0) | 32151705 |
| Classifications (UNSPSC 220601.0) | 32151705 |
| Classifications (UNSPSC 230701.0) | 32151705 |
| Classifications (UNSPSC 240301.0) | 32151705 |
| Classifications (UNSPSC 250901.0) | 32151705 |
| Classifications (UNSPSC 260801.0) | 32151705 |
