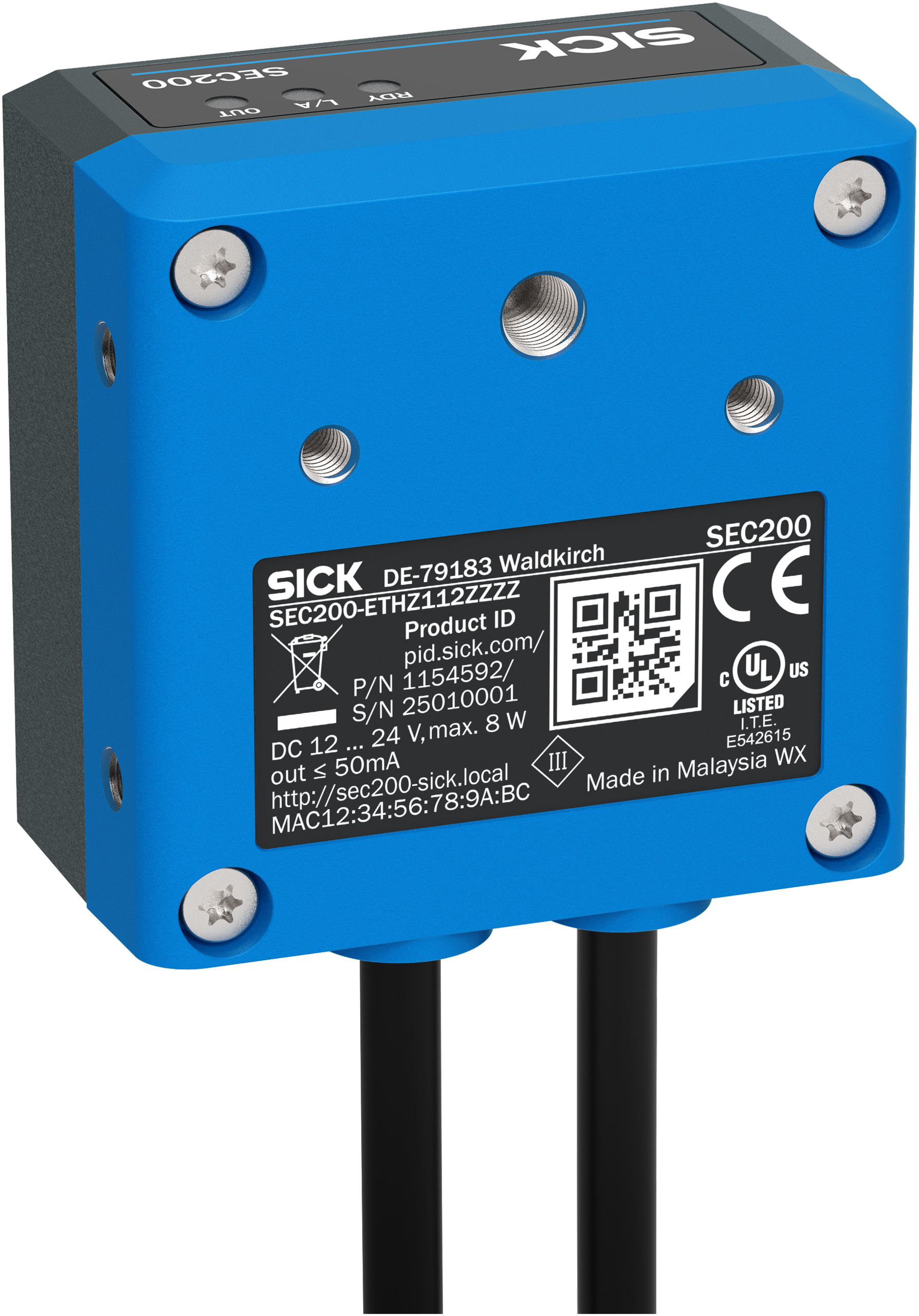

SICK AG SEC200-ETHZ112ZZZZ
Image-based code readers SEC200-ETHZ112ZZZZ
Технические характеристики
| Features (Technology) | Image-based code reading |
|---|---|
| Features (Sensor) | CMOS monochrome |
| Features (Shutter technology) | Global-Shutter |
| Features (Sensor resolution) | 1,080 px x 1,280 px (1.3 MP) |
| Features (Field of view (H x V)) | 36° x 31° |
| Features (Memory) | Internal memory for storing up to 1,000 images or via FTP upload |
| Features (Illumination) | LED, white LED Class 1 (IEC 62471:2006) |
| Features (Lens) | Integrated |
| Features (Alignment aid) | Linear green light spot (LED), Risk Group 1 according to IEC 62471:2006 |
| Features (Code reading performance Readable code structures 1D codes, 2D codes Bar code types Code 39, Code 128, Code 93, UPC / EAN / JAN (with addition), Code 25, Codabar, postal codes 2D code types QR code, Data Matrix Code resolution ≥ 0.2 mm Working distance 100 mm ... 300 mm No. of codes per scan 1 ... 25) | Code reading performance |
| Features (Readable code structures) | 1D codes, 2D codes |
| Features (Bar code types) | Code 39, Code 128, Code 93, UPC / EAN / JAN (with addition), Code 25, Codabar, postal codes |
| Features (2D code types) | QR code, Data Matrix |
| Features (Code resolution) | ≥ 0.2 mm |
| Features (Working distance) | 100 mm ... 300 mm |
| Features (No. of codes per scan) | 1 ... 25 |
| Features (Evaluation time/Decoding speed Exposure time 50 µs ... 33,000 µs Scan/frame rate ≤ 60 fps Transport speed ≤ 1.5 m/s) | Evaluation time/Decoding speed |
| Features (Exposure time) | 50 µs ... 33,000 µs |
| Features (Scan/frame rate) | ≤ 60 fps |
| Features (Transport speed) | ≤ 1.5 m/s |
| Features (Image capture Image format JPEG Trigger Digital input or software trigger via TCP/IP) | Image capture |
| Features (Image format) | JPEG |
| Features (Trigger) | Digital input or software trigger via TCP/IP |
| Interfaces (Ethernet ✔ , TCP/IP Remark DHCP/AutoIP/static (Standard hostname: sec200-sick.local), NTP, HTTP, HTTPS, mDNS Data transmission rate 100 Mbit/s, 100Base-TX) | Ethernet |
| Interfaces (Ethernet) | ✔ , TCP/IP |
| Interfaces (Remark) | DHCP/AutoIP/static (Standard hostname: sec200-sick.local), NTP, HTTP, HTTPS, mDNS |
| Interfaces (Data transmission rate) | 100 Mbit/s, 100Base-TX |
| Interfaces (REST API ✔ Remark REST API for configuration) | REST API |
| Interfaces (REST API) | ✔ |
| Interfaces (Optical indicators) | 3 status LEDs (Three status LEDs on the top of the device) 1 Feedback LED (One green feedback LED for code presence detection in the field of view) |
| Interfaces (Acoustic indicators) | 1 beeper |
| Interfaces (Configuration software) | Web server integrated |
| Напряжение питания | 12 V DC ... 24 V DC 1) |
| Electronics (Power consumption) | Typ. 5 W Max. 8 W |
| Electronics (Digital input, level) | U V ≥ 18 V Active: U IN Inactive: U IN U V |
| Electronics (Digital output, level) | Push-pull: PNP/NPN Active: U OUT Inactive: U OUT Maximum output current: 50 mA |
| Electronics (Protection class) | III |
| Electronics (Electrical safety) | EN 62368-1 |
| Напряжение питания | Connection type |
| Напряжение питания | Connector M12, 5-pin, A-coded (PUR), 300 mm |
| Electronics (Ethernet interface) | M12 female connector, 4-pin, D-coded (PUR), 200 mm |
| Напряжение питания | Pinouts for Supply voltage & I/O |
| Electronics (-- 1) | + (L+) |
| Electronics (-- 2) | In 1 |
| Electronics (-- 3) | - (M) |
| Electronics (-- 4) | Q 1 |
| Electronics (-- 5) | Q 2 |
| Electronics (Pinouts for Ethernet interface -- 1 TD + -- 2 RD + -- 3 TD - -- 4 RD -) | Pinouts for Ethernet interface |
| Mechanics (Dimensions (W x H x D)) | 56 mm x 56 mm x 30.5 mm (without connection) |
| Материал | Aluminum, plastic |
| Материал | Glass |
| Масса | 180 g |
| Mechanics (Mounting) | Six threads for M4 screws One ¼‘‘ - 20 UNC thread for photo tripod |
| Рабочая температура | 0 °C ... +50 °C |
| Ambient data (Ambient temperature, storage) | –20 °C ... +60 °C |
| Ambient data (Permissible relative humidity) | ≤ 90 % |
| Степень защиты (IP) | IP65 |
| Ambient data (Shock resistance) | 150 m/s² EN 60068-2-27 |
| Ambient data (Vibration resistance) | 50 m/s² EN 60068-2-6, EN 60068-2-64 |
| Ambient data (Electromagnetic compatibility (EMC)) | Emission according to EN 61000-6-3 Immunity according to EN 61000-6-2 |
| Сертификация | ✔ |
| Сертификация | ✔ |
| Сертификация | ✔ |
| Сертификация | ✔ |
| Сертификация | ✔ |
| Сертификация | ✔ |
| Сертификация | ✔ |
| Сертификация | ✔ |
| Сертификация | ✔ |
| Classifications (ECLASS 5.1.4) | 27280103 |
| Classifications (ECLASS 6.0) | 27280103 |
| Classifications (ECLASS 7.0) | 27280103 |
| Classifications (ECLASS 8.0) | 27280103 |
| Classifications (ECLASS 9.0) | 27280103 |
| Classifications (ECLASS 10.0) | 27280103 |
| Classifications (ECLASS 11.0) | 27280103 |
| Classifications (ECLASS 12.0) | 27280103 |
| Classifications (ECLASS 13.0) | 27280103 |
| Classifications (ECLASS 14.0) | 27280103 |
| Classifications (ECLASS 15.0) | 27280103 |
| Classifications (ETIM 6.0) | EC002999 |
| Classifications (ETIM 7.0) | EC002999 |
| Classifications (ETIM 8.0) | EC002999 |
| Classifications (ETIM 9.0) | EC002999 |
| Classifications (ETIM 10.0) | EC002999 |
| Classifications (UNSPSC 091201.0) | 43211701 |
| Classifications (UNSPSC 100501.0) | 43211701 |
| Classifications (UNSPSC 111201.0) | 43211701 |
| Classifications (UNSPSC 120901.0) | 43211701 |
| Classifications (UNSPSC 131201.0) | 43211701 |
| Classifications (UNSPSC 140801.0) | 43211701 |
| Classifications (UNSPSC 151101.0) | 43211701 |
| Classifications (UNSPSC 160901.0) | 43211701 |
| Classifications (UNSPSC 171001.0) | 43211701 |
| Classifications (UNSPSC 180801.0) | 43211701 |
| Classifications (UNSPSC 190501.0) | 43211701 |
| Classifications (UNSPSC 200601.0) | 43211701 |
| Classifications (UNSPSC 210901.0) | 43211701 |
| Classifications (UNSPSC 220601.0) | 43211701 |
| Classifications (UNSPSC 230701.0) | 43211701 |
| Classifications (UNSPSC 240301.0) | 43211701 |
| Classifications (UNSPSC 250901.0) | 43211701 |
| Classifications (UNSPSC 260801.0) | 43211701 |
