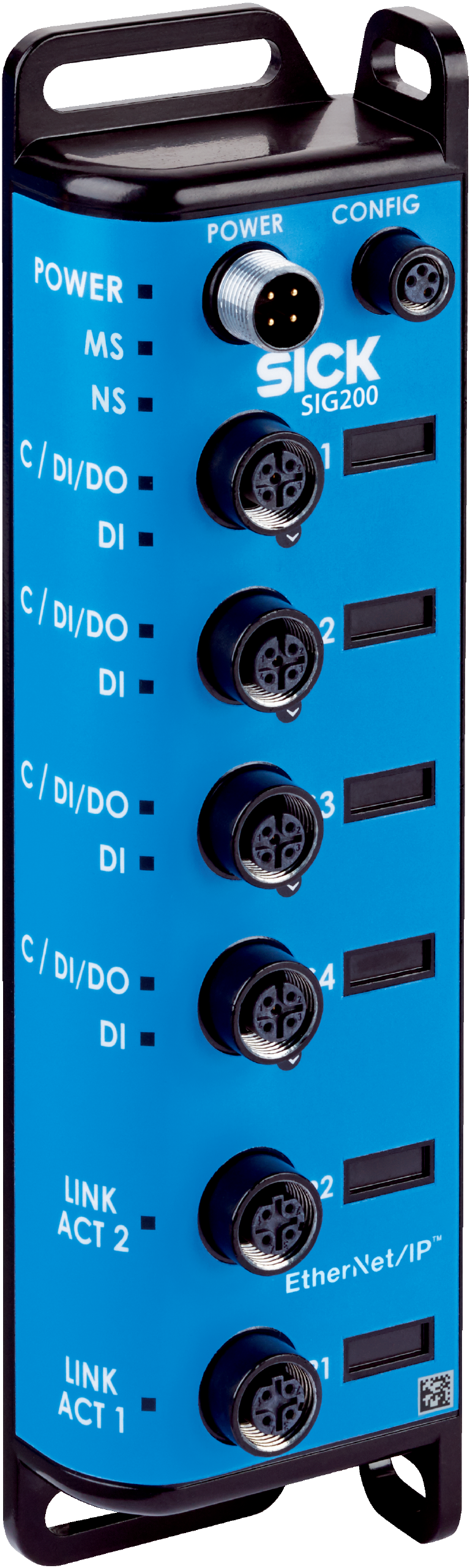

SICK AG SIG200-0A0512200
Network devices SIG200-0A0512200
Технические характеристики
| Features (Product category) | IO-Link Master |
|---|---|
| Features (Supported products) | IO-Link Devices Binary actuators Binary switching sensors |
| Features (Further functions) | Web server integrated USB connection for easy configuration of the SIG200 Sensor Integration Gateway with SOPAS ET, the engineering tool from SICK Logic editor is available for easy configuration of logic functions |
| Features (Items supplied) | SIG200-0A0512200, 4x blind plugs (M12) on port S2, S3, S4, P2, 1x blind plug (M8) on port CONFIG, Marking labels, quickstart |
| Mechanics/electronics (Connections IO-Link 4 x M12, 5-pin female connector, A-coded Power 1 x M12, 4-pin plug, A-coded CONFIG 1 x M8, 4-pin female connector, USB 2.0 (USB-A) Ethernet 2 x M12, 4-pin female connector, D-coded) | Connections |
| Mechanics/electronics (IO-Link) | 4 x M12, 5-pin female connector, A-coded |
| Mechanics/electronics (Power) | 1 x M12, 4-pin plug, A-coded |
| Mechanics/electronics (CONFIG) | 1 x M8, 4-pin female connector, USB 2.0 (USB-A) |
| Mechanics/electronics (Ethernet) | 2 x M12, 4-pin female connector, D-coded |
| Напряжение питания | Power voltage supply |
| Напряжение питания | 10 V DC ... 30 V DC 1) |
| Mechanics/electronics (Current consumption) | ≤ 175 mA, At supply voltage 24 V DC 2) ≤ 3,000 mA 3) |
| Mechanics/electronics (Optical indicators) | 4 LED green (To the IO-Link ports, Pin4 (C/DI/DO)) 4 LED yellow (To the IO-Link ports, Pin2 (DI)) 2 LED green (To the Ethernet ports) 1 LED green (For the Power Port) 2 LED dual-color (For module status communication) 1 LED green (For network status communication) |
| Напряжение питания | Input/output characteristics |
| Напряжение питания | ≤ 500 mA, ≤ 200 mA (V H ≥ V US - 3 V, Type 3 IEC 61131-2, Type 1 IEC 61131-2, Type 3 IEC 61131-2, Type 1 IEC 61131-2) 4) 4) |
| Степень защиты (IP) | IP67 |
| Mechanics/electronics (Protection class) | III |
| Материал | Zinc |
| Mechanics/electronics (Housing color) | Light blue/Black |
| Масса | 520 g |
| Mechanics/electronics (Dimensions (L x W x H)) | 213.9 mm x 57 mm x 38.3 mm |
| Mechanics/electronics (UL File No.) | E497722 |
| Interfaces (Communication interface IO-Link, USB, Ethernet, EtherNet/IP™, REST API) | Communication interface |
| Interfaces (Communication interface) | IO-Link, USB, Ethernet, EtherNet/IP™, REST API |
| Interfaces (Logic editor) | ✔ |
| Interfaces (Web server) | ✔ |
| Interfaces (IO-Link Master Function The SIG200 Sensor Integration Gateway is an IO-Link master with 4 configurable ports to which IO-Link device as well as binary switching sensors and actuators can be connected. The gateway data is made available to a PLC or cloud application via the REST API. SIG200 can also be operated as a standalone system by directly configuring simple logic functions across several connected devices via the SOPAS ET user interface. IO-Link version V1.1, V1.0 Port Class A Number of IO-Link ports 4 Transmission type COM1, COM2, COM3) | IO-Link Master |
| Interfaces (Function) | The SIG200 Sensor Integration Gateway is an IO-Link master with 4 configurable ports to which IO-Link device as well as binary switching sensors and actuators can be connected. The gateway data is made available to a PLC or cloud application via the REST API. SIG200 can also be operated as a standalone system by directly configuring simple logic functions across several connected devices via the SOPAS ET user interface. |
| Interfaces (IO-Link version) | V1.1, V1.0 |
| Interfaces (Port Class) | A |
| Interfaces (Number of IO-Link ports) | 4 |
| Interfaces (Transmission type) | COM1, COM2, COM3 |
| Interfaces (Operator interfaces) | SOPAS ET, the engineering tool for configuration via USB, Additionally, the SIG200 can be configured via the integrated webserver. Default IP adress: 192.168.0.1 |
| Interfaces (MAC address) | See product label |
| Interfaces (Number of inputs) | Max. 8 x PNP, type 1 or 4 x IO-Link |
| Interfaces (Number of outputs) | Max. 4 x PNP |
| Interfaces (Max. Output frequency) | 50 Hz |
| Interfaces (Inputs/outputs S1-S4 4 configurable ports Pin4 can be used in one of the available port modes: IO-Link, digital input or digital output. An additional digital input signal can be connected using Pin2. (SOPAS ET can be downloaded for free from www.sick.com) LINK/ACT 1 & 2 Two Ethernet ports are provided for the network connection (SOPAS ET can be downloaded for free from www.sick.com) CONFIG Port for configuration via USB with SOPAS ET) | Inputs/outputs |
| Interfaces (S1-S4) | 4 configurable ports Pin4 can be used in one of the available port modes: IO-Link, digital input or digital output. An additional digital input signal can be connected using Pin2. (SOPAS ET can be downloaded for free from www.sick.com) |
| Interfaces (LINK/ACT 1 & 2) | Two Ethernet ports are provided for the network connection (SOPAS ET can be downloaded for free from www.sick.com) |
| Interfaces (CONFIG) | Port for configuration via USB with SOPAS ET |
| Interfaces (Initialization time after switch on) | 70s (plus additional time for IODD installation) |
| Ambient data (Ambient operating temperature) | –40 °C ... +55 °C 1) |
| Ambient data (Ambient temperature, storage) | –40 °C ... +75 °C 1) |
| Ambient data (Electromagnetic compatibility (EMC)) | EN 61000-6-2:2005-08 EN 61000-6-3:2007-01 |
| Ambient data (Shock load) | EN 60068-2-6 |
