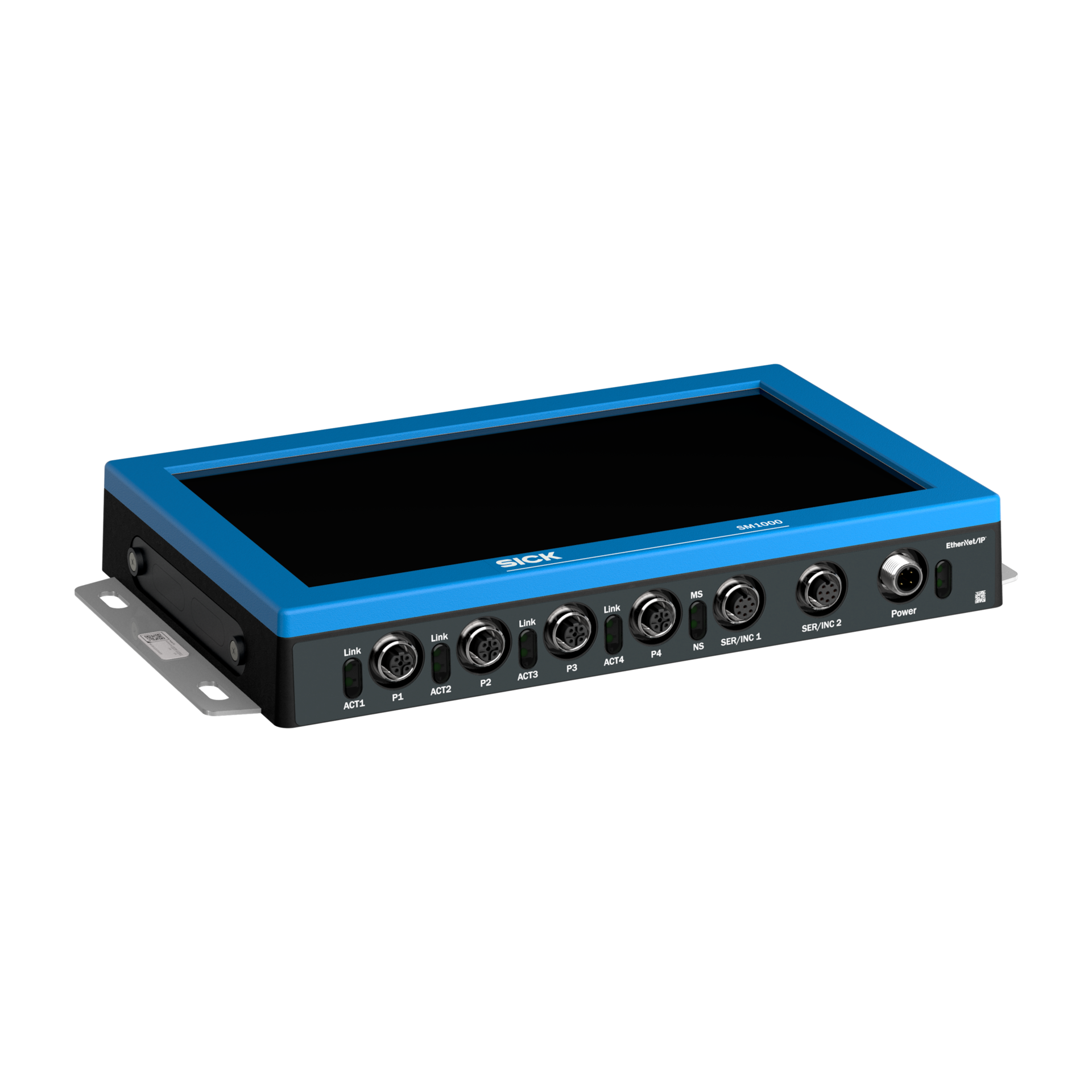

SICK AG SM1000-E222100
Edge computing devices SM1000-E222100
Технические характеристики
| Features (Product segment) | Edge computing devices |
|---|---|
| Features (Product) | SM1000 |
| Features (Product category) | Programmable devices, IO-Link Master |
| Features (Supported products) | IO-Link Devices Binary switching sensors Binary actuators |
| Features (Further functions) | Web server integrated IIoT interface available (dual talk) |
| Features (Processor) | TI SITARA AM6421 |
| Features (Random Access Memory) | 512 MB LPDDR4 |
| Features (Flash memory) | 5 GB |
| Features (Optical indicators) | 8 LED yellow (IO activity pin 2 and 5) 4 LED green (IO activity pin 4) 4 LED green (Ethernet bus link) 1 LED green (Fieldbus device status) 1 LED red (Fieldbus device status) 1 LED green (Power supply) |
| Features (Scope of delivery) | Blind plug (11 x M12) |
| Features (Application development kit) | SICK AppStudio Can be programmed within the SICK AppSpace environment |
| Features (Toolkit) | SICK algorithm API |
| Communication interface (IO-Link ✔ Remark V1.1.3 Number of ports 4 Port Class A Data transmission rate COM1, COM2, COM3 Additional features Data Storage) | IO-Link |
| Communication interface (IO-Link) | ✔ |
| Communication interface (Remark) | V1.1.3 |
| Communication interface (Number of ports) | 4 |
| Communication interface (Port Class) | A |
| Communication interface (Data transmission rate) | COM1, COM2, COM3 |
| Communication interface (Additional features) | Data Storage |
| Communication interface (Ethernet ✔ Number of ports 4 Data transmission rate 10/100 MBit/s Specification Data output, EtherNet/IP, EtherCAT, REST) | Ethernet |
| Communication interface (Ethernet) | ✔ |
| Communication interface (Specification) | Data output, EtherNet/IP, EtherCAT, REST |
| Communication interface (USB-C ✔ Number of ports 1 Specification Configuration, firmware updates) | USB-C |
| Communication interface (USB-C) | ✔ |
| Communication interface (Serial ✔ Number of ports 2 Additional features Also configurable as an encoder interface: HTL or TTL Specification RS-232, RS-485) | Serial |
| Communication interface (Serial) | ✔ |
| Communication interface (REST API ✔ Specification JSON integration for IO-Link version (V1.0.0) Factory setting Static: P1 port: 192.168.0.1; P2 port: 192.168.1.1; P3 port: 192.168.2.1; P4 port: 192.168.3.1) | REST API |
| Communication interface (REST API) | ✔ |
| Communication interface (Factory setting) | Static: P1 port: 192.168.0.1; P2 port: 192.168.1.1; P3 port: 192.168.2.1; P4 port: 192.168.3.1 |
| Communication interface (MQTT ✔ Specification JSON integration for IO-Link version (V1.0.0)) | MQTT |
| Communication interface (MQTT) | ✔ |
| Communication interface (SD card slot) | 1x microSD slot 4 GB or more Class 4 (4 MB/s) or higher |
| Communication interface (Operator interfaces) | Touch display, Web server integrated, SOPAS (via USB or network) |
| Напряжение питания | 20 V DC ... 30 V DC 1) 11.5 V DC ... 30 V DC 2) |
| Electronics (Power supply IN (PWR1) U S current consumption ≤ 180 mA (at 24 V) U A current consumption ≤ 20 mA (at 24 V) Max. electrical current capacity 2 A) | Power supply IN (PWR1) |
| Electronics (U S current consumption) | ≤ 180 mA (at 24 V) |
| Electronics (U A current consumption) | ≤ 20 mA (at 24 V) |
| Electronics (Max. electrical current capacity) | 2 A |
| Напряжение питания | Voltage supply |
| Electronics (Total current (S1 ... S4)) | 2 A |
| Напряжение питания | 500 mA |
| Electronics (Output current port class A (DO) (pin 2)) | 200 mA |
| Electronics (Output current port class A (DO) (pin 4)) | 200 mA |
| Electronics (Output current port class A (DO) (pin 5)) | 200 mA |
| Electronics (Current carrying capacity per port max.) | 500 mA |
| Electronics (SER/INC port Pin X max. supply 1 A 0.5 A) | SER/INC port |
| Electronics (Pin X max. supply) | 1 A |
| Electronics (Digital inputs Number 12, configurable Input characteristics EN 61131-2 type 1 Type PNP Filter time 0 ms ... 15 ms Delay time at signal change 2 ms ... 5 ms Circuit protection Short-circuit protected) | Digital inputs |
| Electronics (Number) | 12, configurable |
| Electronics (Input characteristics) | EN 61131-2 type 1 |
| Electronics (Type) | PNP |
| Electronics (Filter time) | 0 ms ... 15 ms |
| Electronics (Delay time at signal change) | 2 ms ... 5 ms |
| Electronics (Circuit protection) | Short-circuit protected |
| Electronics (Digital outputs Number 12, configurable Type PNP NPN Push-Pull Switching frequency ≤ 50 Hz Circuit protection Short-circuit protected) | Digital outputs |
| Electronics (Switching frequency) | ≤ 50 Hz |
| Степень защиты (IP) | IP54 (In fastened condition) |
| Electronics (Protection class) | III |
| Mechanics (Display Size 10.1 ″ Resolution 1,024 dpi x 600 dpi Brightness 400 cd/m² Service life of backlight 50,000 h Viewing angle 80° (right) 80° (left) 80° (top) 80° (bottom) Color 8-bit LVDS (16.7 million colors) Touch display Projective capacitative multi-touch TFT) | Display |
| Mechanics (Size) | 10.1 ″ |
| Mechanics (Resolution) | 1,024 dpi x 600 dpi |
| Mechanics (Brightness) | 400 cd/m² |
| Mechanics (Service life of backlight) | 50,000 h |
| Mechanics (Viewing angle) | 80° (right) |
| Mechanics (Color) | 8-bit LVDS (16.7 million colors) |
| Mechanics (Touch display) | Projective capacitative multi-touch TFT |
| Mechanics (Connections IO-Link 4 x M12, 5-pin socket, A-coded Ethernet 4 x M12, 4-pin socket, D-coded Serial/INC 2 x M12, 8-pin socket, A-coded Power supply 1 x M12, 4-pin plug, A-coded USB-C 1 x USB-C 2.0) | Connections |
| Mechanics (IO-Link) | 4 x M12, 5-pin socket, A-coded |
| Mechanics (Ethernet) | 4 x M12, 4-pin socket, D-coded |
| Mechanics (Serial/INC) | 2 x M12, 8-pin socket, A-coded |
| Mechanics (Power supply) | 1 x M12, 4-pin plug, A-coded |
| Mechanics (USB-C) | 1 x USB-C 2.0 |
| Материал | Polyamide (ELEMELT PA514) |
| Mechanics (Housing color) | Black |
| Масса | 1,940 g |
| Mechanics (Dimensions (L x W x H)) | 292.5 mm x 162.1 mm x 39 mm |
| Mechanics (Mounting system type) | Screw-on, 4 hole mounting |
| Ambient data (Ambient operating temperature) | –20 °C ... +50 °C 1) |
| Ambient data (Ambient temperature, storage) | –30 °C ... +70 °C |
| Ambient data (Electromagnetic compatibility (EMC)) | EN 61000-6-2:2016 EN 61000-6-4:2020 |
| Ambient data (Shock load) | EN 60068-2-27 |
| Ambient data (Permissible relative humidity) | 0% ... 95%, non-condensing |
| General notes (Note) | Silicone-free. Not free of paint wetting impairment substances. |
| General notes (Operating system) | Linux |
| Сертификация | ✔ |
| Сертификация | ✔ |
| Сертификация | ✔ |
| Сертификация | ✔ |
| Сертификация | ✔ |
| Classifications (ECLASS 5.1.4) | 27279202 |
| Classifications (ECLASS 6.0) | 27279202 |
| Classifications (ECLASS 7.0) | 27279202 |
| Classifications (ECLASS 8.0) | 27279202 |
| Classifications (ECLASS 9.0) | 27273701 |
| Classifications (ECLASS 10.0) | 27273701 |
| Classifications (ECLASS 11.0) | 27273701 |
| Classifications (ECLASS 12.0) | 27273701 |
| Classifications (ECLASS 13.0) | 27273701 |
| Classifications (ECLASS 14.0) | 27273701 |
| Classifications (ECLASS 15.0) | 27273701 |
| Classifications (ETIM 6.0) | EC002024 |
| Classifications (ETIM 7.0) | EC002024 |
| Classifications (ETIM 8.0) | EC002024 |
| Classifications (ETIM 9.0) | EC002024 |
| Classifications (ETIM 10.0) | EC002024 |
| Classifications (UNSPSC 091201.0) | 41111900 |
| Classifications (UNSPSC 100501.0) | 41111900 |
| Classifications (UNSPSC 111201.0) | 41111900 |
| Classifications (UNSPSC 120901.0) | 41111900 |
| Classifications (UNSPSC 131201.0) | 41111900 |
| Classifications (UNSPSC 140801.0) | 41111900 |
| Classifications (UNSPSC 151101.0) | 41111900 |
| Classifications (UNSPSC 160901.0) | 41111900 |
| Classifications (UNSPSC 171001.0) | 41111900 |
| Classifications (UNSPSC 180801.0) | 41111900 |
| Classifications (UNSPSC 190501.0) | 41111900 |
| Classifications (UNSPSC 200601.0) | 41111900 |
| Classifications (UNSPSC 210901.0) | 41111900 |
| Classifications (UNSPSC 220601.0) | 41111900 |
| Classifications (UNSPSC 230701.0) | 41111900 |
| Classifications (UNSPSC 240301.0) | 41111900 |
| Classifications (UNSPSC 250901.0) | 41111900 |
| Classifications (UNSPSC 260801.0) | 41111900 |
