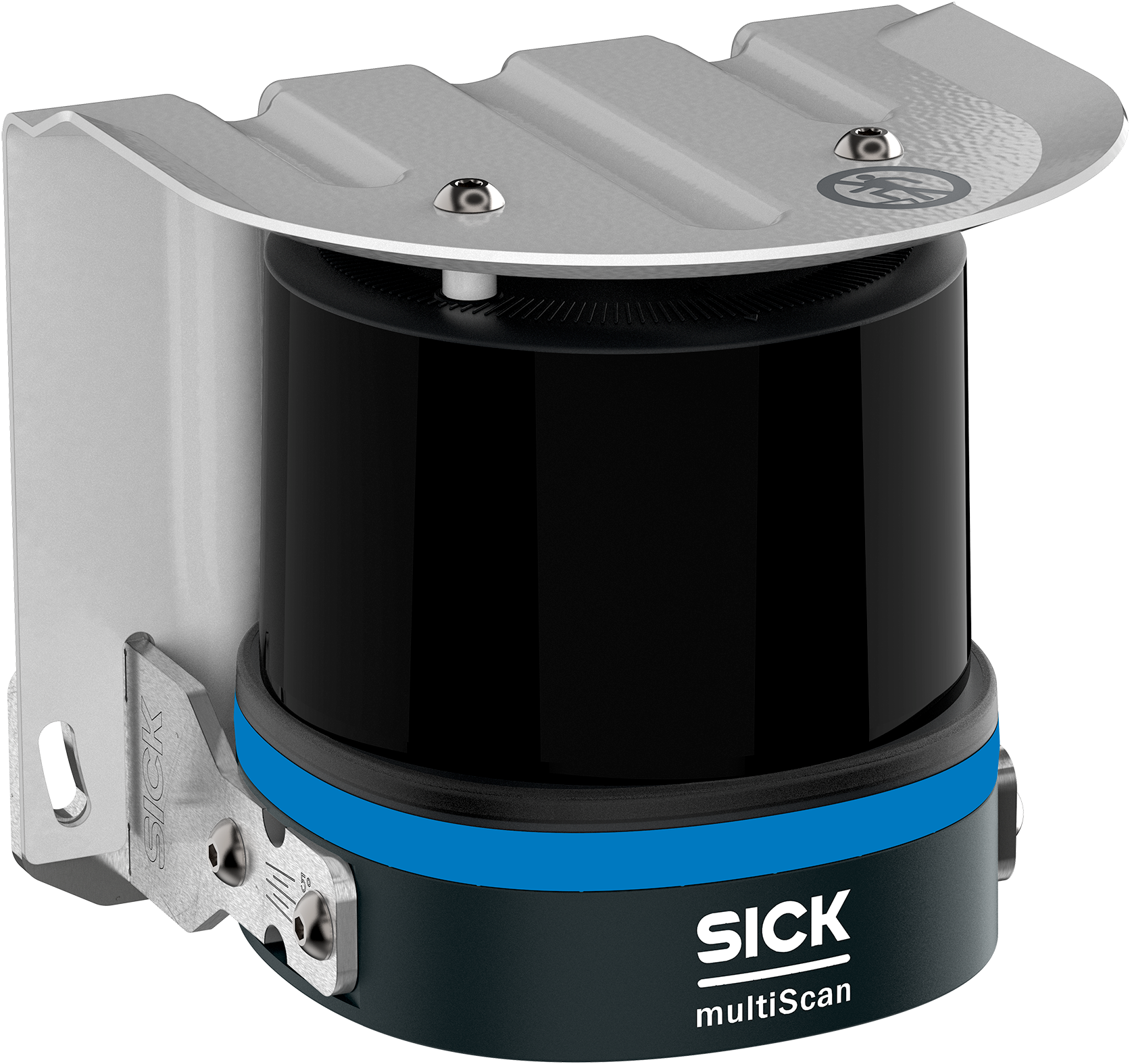

SICK AG TOP-WEATHER-HOOD-(250°)
Device protection and care Top weather hood (250°)
Категории:
Технические характеристики
| Features (Product segment) | Device protection and care |
|---|---|
| Features (Product) | Protective caps and hoods |
| Features (Description) | Weather protection (min. 250° aperture angle) to keep out precipitation and sunlight (compatible with: bottom weather hood (part no.: 2149386), Simple bracket (part no.: 2128226)) |
| Features (Items supplied) | Weather hood, 2 x oval-head screws with M5 x 16 hexagon socket (material: A2-70, standard: ISO 7380-1) |
| Материал | Aluminum (AW-5754) powder-coated RAL7035, Screws: A2 stainless steel |
| Features (Packing unit) | 1 |
| Features (Dimensions (W x H x L)) | 135 mm x 115 mm x 117.5 mm |
| Масса | 130 g |
| Features (Vibration resistance Sine resonance scan 10 Hz ... 1,000 Hz 1) Sine test 10 Hz ... 500 Hz, 5 g, 10 frequency cycles 1) Noise test 10 Hz ... 250 Hz, 4.24 g RMS, 5 h 2)) | Vibration resistance |
| Features (Sine resonance scan) | 10 Hz ... 1,000 Hz 1) |
| Features (Sine test) | 10 Hz ... 500 Hz, 5 g, 10 frequency cycles 1) |
| Features (Noise test) | 10 Hz ... 250 Hz, 4.24 g RMS, 5 h 2) |
| Features (Shock resistance) | 50 g, 11 ms, ± 3 single shocks/axis 3) 25 g, 6 ms, ± 1,000 continuous shocks/axis 3) 50 g, 3 ms, ± 5,000 continuous shocks/axis 3) |
| Classifications (ECLASS 5.1.4) | 27371290 |
| Classifications (ECLASS 6.0) | 27379218 |
| Classifications (ECLASS 7.0) | 27379218 |
| Classifications (ECLASS 8.0) | 27379218 |
| Classifications (ECLASS 9.0) | 27379218 |
| Classifications (ECLASS 10.0) | 27371207 |
| Classifications (ECLASS 11.0) | 27371207 |
| Classifications (ECLASS 12.0) | 27371207 |
| Classifications (ECLASS 13.0) | 27371207 |
| Classifications (ECLASS 14.0) | 27371207 |
| Classifications (ECLASS 15.0) | 27371207 |
| Classifications (ETIM 6.0) | EC001855 |
| Classifications (ETIM 7.0) | EC001855 |
| Classifications (ETIM 8.0) | EC001855 |
| Classifications (ETIM 9.0) | EC001855 |
| Classifications (ETIM 10.0) | EC001855 |
| Classifications (UNSPSC 091201.0) | 32131000 |
| Classifications (UNSPSC 100501.0) | 32131000 |
| Classifications (UNSPSC 111201.0) | 32131000 |
| Classifications (UNSPSC 120901.0) | 32131000 |
| Classifications (UNSPSC 131201.0) | 32131023 |
| Classifications (UNSPSC 140801.0) | 32131023 |
| Classifications (UNSPSC 151101.0) | 32131023 |
| Classifications (UNSPSC 160901.0) | 32131023 |
| Classifications (UNSPSC 171001.0) | 32131023 |
| Classifications (UNSPSC 180801.0) | 32131023 |
| Classifications (UNSPSC 190501.0) | 32131023 |
| Classifications (UNSPSC 200601.0) | 32131023 |
| Classifications (UNSPSC 210901.0) | 32131023 |
| Classifications (UNSPSC 220601.0) | 32131023 |
| Classifications (UNSPSC 230701.0) | 32131023 |
| Classifications (UNSPSC 240301.0) | 32131023 |
| Classifications (UNSPSC 250901.0) | 32131023 |
| Classifications (UNSPSC 260801.0) | 32131023 |
