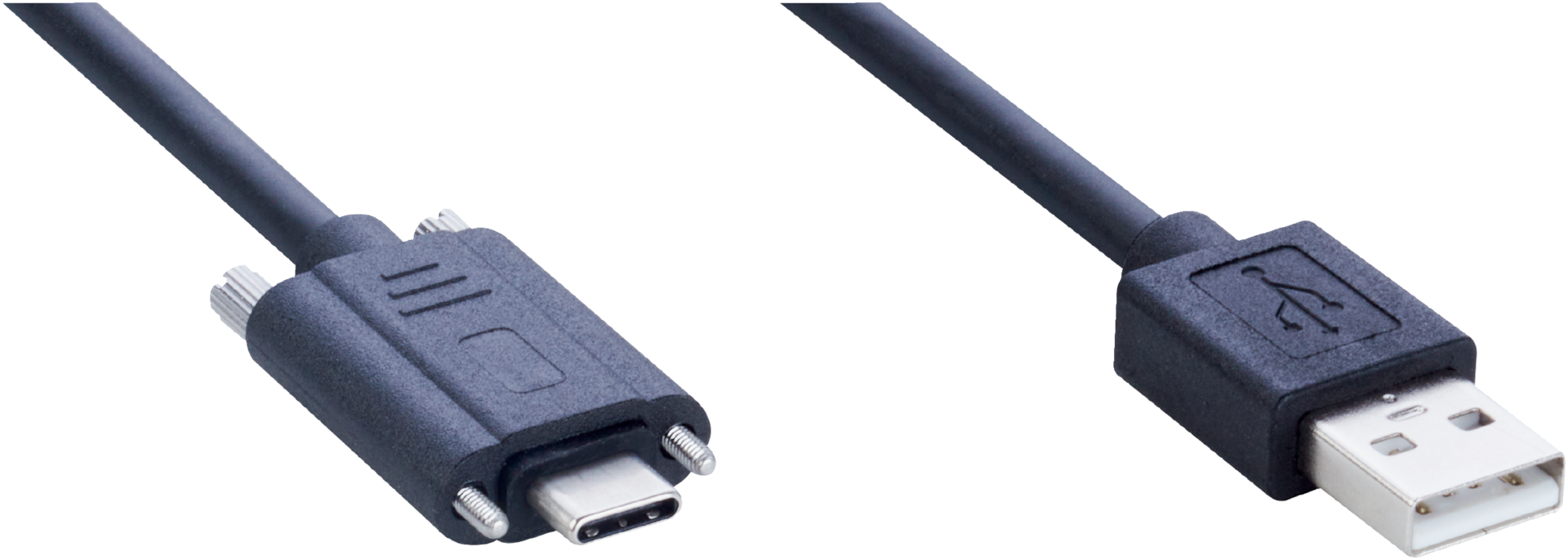

SICK AG YMUSA4-025UT1MUSX4
Connectors and cables YMUSA4-025UT1MUSX4
Категории:
Технические характеристики
| Technical specifications (Connection type head A) | Male connector, USB-A, 4-pin, straight |
|---|---|
| Technical specifications (Connection type head B) | Male connector, USB-C®, 4-pin, straight |
| Technical specifications (Locking plug connector) | Screw connection |
| Материал | TPU |
| Technical specifications (Connector color) | Black |
| Материал | Silicone |
| Technical specifications (Tightening torque) | 0.12 Nm |
| Technical specifications (Cable) | 2.5 m, 4-wire, PUR, halogen-free |
| Материал | PUR, halogen-free |
| Technical specifications (Jacket color) | Black |
| Technical specifications (Cable diameter) | 4.5 mm |
| Technical specifications (Conductor cross section) | 2 x 0.08 mm² + 2 x 0.20 mm² |
| Technical specifications (Shielding) | Shielded |
| Technical specifications (Bending radius Flexible use > 8 x cable diameter Stationary position > 4 x cable diameter) | Bending radius |
| Technical specifications (Flexible use) | > 8 x cable diameter |
| Technical specifications (Stationary position) | > 4 x cable diameter |
| Technical specifications (Bending cycles) | 5,000,000 |
| Напряжение питания | 300 V DC |
| Напряжение питания | Reference voltage |
| Technical specifications (Current loading) | 0.9 A |
| Technical specifications (Traversing speed) | 2 m/s |
| Technical specifications (Travelling distance) | 1 m |
| Technical specifications (Signal type) | Sensor/actuator cable |
| Степень защиты (IP) | IP65 |
| Technical specifications (Operating temperature Flexible use –10 °C ... +80 °C Stationary position –20 °C ... +80 °C Drag chain operation +10 °C ... +80 °C Head –20 °C ... +80 °C) | Operating temperature |
| Technical specifications (Drag chain operation) | +10 °C ... +80 °C |
| Technical specifications (Head) | –20 °C ... +80 °C |
| Technical specifications (Contamination rating) | 2 |
| Technical specifications (Insulation resistance) | > 10 MΩ |
| Напряжение питания | II |
| Technical specifications (Specific insulation resistance) | < 3 Ω |
| Сертификация | ✔ |
| Сертификация | ✔ |
| Сертификация | ✔ |
| Classifications (ECLASS 5.1.4) | 27069090 |
| Classifications (ECLASS 6.0) | 27069090 |
| Classifications (ECLASS 7.0) | 27069090 |
| Classifications (ECLASS 8.0) | 27069090 |
| Classifications (ECLASS 9.0) | 27069090 |
| Classifications (ECLASS 10.0) | 27069090 |
| Classifications (ECLASS 11.0) | 27069090 |
| Classifications (ECLASS 12.0) | 27069090 |
| Classifications (ECLASS 13.0) | 27069090 |
| Classifications (ECLASS 14.0) | 27069090 |
| Classifications (ECLASS 15.0) | 27069090 |
| Classifications (ETIM 6.0) | EC002584 |
| Classifications (ETIM 7.0) | EC002584 |
| Classifications (ETIM 8.0) | EC002584 |
| Classifications (ETIM 9.0) | EC002584 |
| Classifications (ETIM 10.0) | EC002584 |
| Classifications (UNSPSC 091201.0) | 39121421 |
| Classifications (UNSPSC 100501.0) | 39121421 |
| Classifications (UNSPSC 111201.0) | 39121421 |
| Classifications (UNSPSC 120901.0) | 39121421 |
| Classifications (UNSPSC 131201.0) | 39121421 |
| Classifications (UNSPSC 140801.0) | 39121421 |
| Classifications (UNSPSC 151101.0) | 39121421 |
| Classifications (UNSPSC 160901.0) | 39121421 |
| Classifications (UNSPSC 171001.0) | 39121421 |
| Classifications (UNSPSC 180801.0) | 39121421 |
| Classifications (UNSPSC 190501.0) | 39121421 |
| Classifications (UNSPSC 200601.0) | 39121421 |
| Classifications (UNSPSC 210901.0) | 39121421 |
| Classifications (UNSPSC 220601.0) | 39121421 |
| Classifications (UNSPSC 230701.0) | 39121421 |
| Classifications (UNSPSC 240301.0) | 39121421 |
| Classifications (UNSPSC 250901.0) | 39121421 |
| Classifications (UNSPSC 260801.0) | 39121421 |
