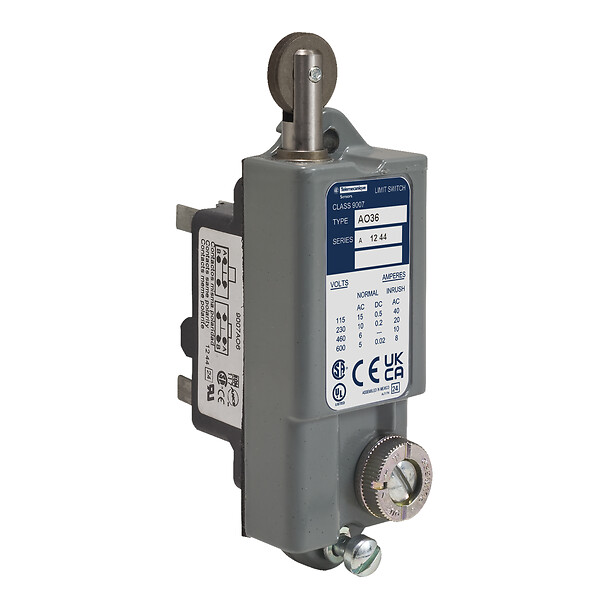

Telemecanique Sensors 9007AO36
Limit switch 9007AW, 600 VAC, 15 A, option version, AO version
Технические характеристики
| Range of product | 9007 |
|---|---|
| Series name | Heavy duty |
| Product or component type | Limit switch |
| Device short name | 9007AW |
| Product specific application | Precision |
| Body type | Plug-in |
| Mounting mode | Open type |
| Operator profile | Plunger head |
| Материал | Metal |
| Материал | Cast zinc |
| Материал | Cast zinc |
| Fixing mode | By the body |
| Movement of operating head | Linear |
| Type of operator | Spring return roller plunger steel with micrometer adjustment |
| Switch actuation | By 30° cam |
| Type of approach | Traverse approach, 2 directions |
| Electrical connection | 1-2 cables for screw-clamp terminals (AWG 22...AWG 12) |
| Contacts type and composition | NC-NO, switch function: SPDT-DB |
| Contact form | Form Z |
| Contact operation | Snap action |
| Материал | Silver contacts |
| Positive opening | Without |
| Terminals description ISO n°1 | (1-2)NC(3-4)NO |
| Repeat accuracy | +/- 0.001 in |
| NEMA degree of protection | NEMA 1 conforming to Nema type 250 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Protective treatment | Epoxy powder coat |
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 6.096 CENTIMETER |
| Package 1 width | 13.208 CENTIMETER |
| Package 1 length | 7.112 CENTIMETER |
| Масса | 0.2631 KILOGRAM |
| Package 2 height | 3 CENTIMETER |
| Package 2 width | 6 CENTIMETER |
| Package 2 length | 7 CENTIMETER |
| Масса | 0.0771 KILOGRAM |
| Indivisible sale quantity | 1 |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
