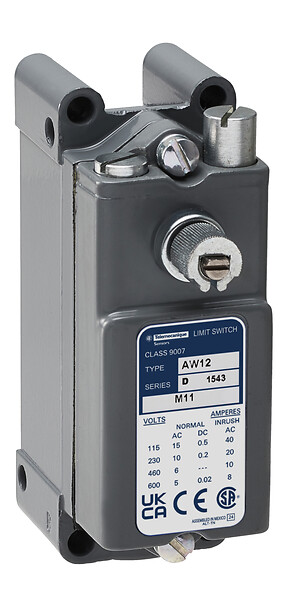

Telemecanique Sensors 9007AW12M11
Limit switch 9007AW, 600 VAC, 15 A, option version, AW version
Технические характеристики
| Range of product | 9007 |
|---|---|
| Series name | Heavy duty |
| Product or component type | Limit switch |
| Device short name | 9007AW |
| Body type | Standard |
| Operator profile | Rotary head |
| Материал | Metal |
| Материал | Cast zinc |
| Материал | Cast zinc |
| Movement of operating head | Rotary |
| Type of operator | Spring return lever arm, momentary to be ordered separately |
| Switch actuation | CCW |
| Electrical connection | 1-2 cables for screw-clamp terminals (AWG 22...AWG 12) |
| Cable entry | Conduit entry, cable outer diameter: 20-20 mm |
| Contacts type and composition | NC-NO, switch function: SPDT-DB |
| Contact form | Form Z |
| Contact operation | Snap action |
| Материал | Silver contacts |
| Positive opening | Without |
| Terminals description ISO n°1 | (1-2)NC(3-4)NO |
| Сертификация | CECSA LR25490 class 3211 03UL listed file E42259 CCN NKCR |
| NEMA degree of protection | NEMA 1/2/4/12/13 conforming to Nema type 250 |
| Mounting location | Frontrear |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Protective treatment | Epoxy powder coat |
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 45.161 CENTIMETER |
| Package 1 width | 17.78 CENTIMETER |
| Package 1 length | 114.709 CENTIMETER |
| Масса | 0.567 KILOGRAM |
| Indivisible sale quantity | 1 |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
