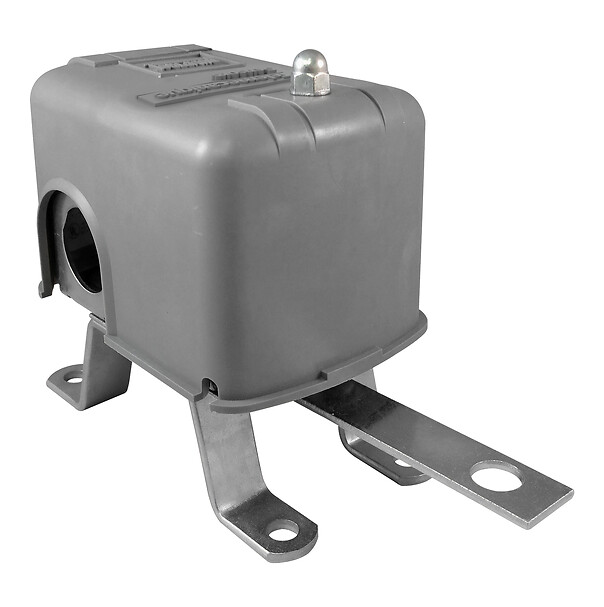

Telemecanique Sensors 9036DG2CR
Float switch, 9036D, Pumptrol, open tank, NEMA 1, pedestal mounted, 2NO DPST-DB, 575 VAC
Технические характеристики
| Range of product | Pumptrol |
|---|---|
| Product or component type | Float switch |
| Device application | Open tank general purpose |
| Device short name | 9036D |
| Product specific application | Liquid level control |
| Electrical circuit type | Power circuit |
| Quantity per set | Set of 1 |
| Type of packing | Individual |
| Product destination | For open tank or sump |
| Device mounting | Pedestal |
| Contacts type and composition | 2 NO, snap action, DPST-DB, Form XX |
| Controlled fluid | Fresh water at specific gravity of 0.85 in or higher, sea water at specific gravity of 0.85 in or higher, hydraulic oil at specific gravity of 0.85 in or higher, corrosive fluid at specific gravity of 0.85 in or higher |
| Electrical connection | Screw-clamp terminals, clamping capacity: 10 AWG |
| Contact operation | Contacts open on liquid rise |
| Float movement | Variable adjustable |
| Float position | Any |
| Float rod angle | Vertical |
| Local signalling | Without |
| Материал | Polypropylene or equivalent |
| Operating position | Vertical position only |
| Terminal block type | 4 terminals |
| Operating rate | 60 CYCLE_PER_MINUTE |
| Terminals description ISO n°1 | Line-load-load-line |
| Factory modification | Compensating spring |
| Kit composition | Float switchrod and float are to be choosen in accessories |
| Standards | CEUL 508 |
| NEMA degree of protection | NEMA 1 conforming to UL 50 |
| Сертификация | CSAUL listed |
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 29.032 CENTIMETER |
| Package 1 width | 11.43 CENTIMETER |
| Масса | 544.311 GRAM |
| Package 1 length | 73.742 CENTIMETER |
| Indivisible sale quantity | 1 |
