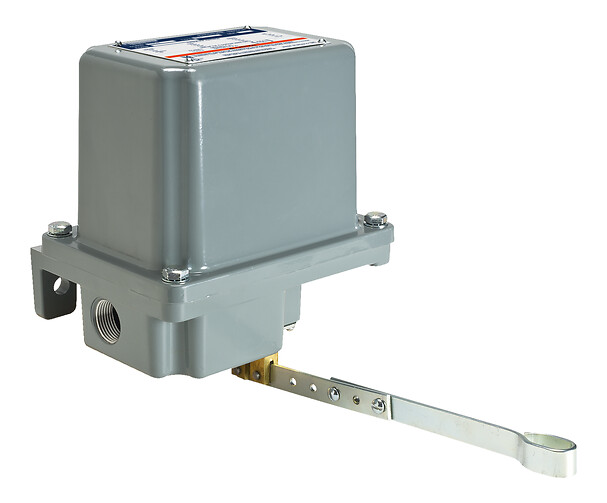

Telemecanique Sensors 9036GR1H
Float switch, 9036G, Pumptrol, open tank, pedestal mounted, NEMA 7/9, NO/NC DPST, 575 VAC
Технические характеристики
| Range of product | Pumptrol |
|---|---|
| Product or component type | Float switch |
| Device application | Open tank heavy duty |
| Device short name | 9036G |
| Product specific application | Liquid level control |
| Electrical circuit type | Power circuit |
| Quantity per set | Set of 1 |
| Type of packing | Individual |
| Product destination | For open tank or sump |
| Device mounting | Pedestal |
| Contacts type and composition | NC-NO, snap action, DPST-DB, Form Zb |
| Controlled fluid | Fresh water at specific gravity of 0.85 in or higher, sea water at specific gravity of 0.85 in or higher, hydraulic oil at specific gravity of 0.85 in or higher, corrosive fluid at specific gravity of 0.85 in or higher |
| Electrical connection | Screw-clamp terminals, clamping capacity: 10 AWG |
| Contact operation | Contacts close on liquid rise |
| Float movement | Variable adjustable |
| Float position | Any |
| Float rod angle | Vertical |
| Local signalling | Without |
| Материал | Cast aluminium |
| Operating position | Vertical position only |
| Terminal block type | 4 terminals |
| Operating rate | 60 CYCLE_PER_MINUTE |
| Terminals description ISO n°1 | Line-load-load-line |
| Factory modification | Without |
| Kit composition | Float switchrod and float are to be choosen in accessories |
| Standards | CEUL 508 |
| NEMA degree of protection | NEMA 7/9 conforming to UL 698 |
| Сертификация | CSAUL listed HazLoc |
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 67.742 CENTIMETER |
| Package 1 width | 26.67 CENTIMETER |
| Масса | 8.618 KILOGRAM |
| Package 1 length | 172.064 CENTIMETER |
| Indivisible sale quantity | 1 |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
