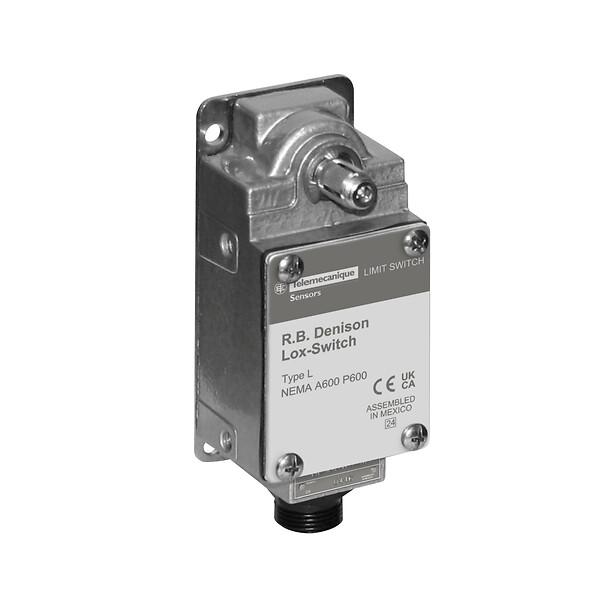

Telemecanique Sensors BL100WS2M1
Limit switch L100, 600 VAC, 10 A, Type L, option version
Категории:
Технические характеристики
| Range of product | L100/300 |
|---|---|
| Series name | Severe duty mill |
| Product or component type | Limit switch |
| Product specific application | Mill switch |
| Device short name | L100L300 |
| Body type | Fixed |
| Head type | Rotary head |
| Base plate style | Style 2 |
| Материал | Cast aluminium |
| Fixing mode | By the body |
| Type of operator | spring return without operating lever |
| Function available | Not applicable |
| Switch actuation | CWfrom left |
| Type of approach | Lateral approach |
| Electrical connection | Screw-clamp terminals AWG 22...AWG 12 |
| Cable entry | 1 entry for 1/2" - 14 NPT conforming to ANSI B1.20.1 |
| CW operation contacts | 1 NC + 1 NO |
| CCW operation contacts | 1 NC + 1 NO |
| Contacts style | A |
| Switch function | DPDT-DB |
| Contact form | Form Zb |
| Материал | 90/10 AgCdO on copper backing stationary contact, silver on steel backing moveable contact |
| Contacts usage | Not applicable |
| Contact operation | Snap action |
| Positive opening | Without |
| Repeat accuracy | +/- 0.03 % |
| Contact code designation | A600, AC (Ue = 600 V) Ie = 5 A conforming to NEMA rating designation, A600, AC (Ue = 480 V) Ie = 6.25 A conforming to NEMA rating designation, A600, AC (Ue = 240 V) Ie = 12.5 A conforming to NEMA rating designation, A600, AC (Ue = 120 V) Ie = 20 A conforming to NEMA rating designation, P600, DC (Ue = 600 V) Ie = 0.2 A conforming to NEMA rating designation, P600, DC (Ue = 250 V) Ie = 1 A conforming to NEMA rating designation, P600, DC (Ue = 120 V) Ie = 5 A conforming to NEMA rating designation |
| Terminals description ISO n°1 | (1-2) left side contact(3-4) right side contact |
| Shock resistance | 30 gn for 9 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 10 gn (f= 10-55 Hz) conforming to IEC 60068-2-6 |
| NEMA degree of protection | NEMA 1 conforming to Nema type 250, NEMA 2 conforming to Nema type 250, NEMA 4 conforming to Nema type 250, NEMA 12 conforming to Nema type 250, NEMA 13 conforming to Nema type 250 |
| IP degree of protection | IP67 conforming to IEC 60529 |
| Electrical shock protection class | Class 0 conforming to IEC 61140 |
| Protective treatment | Corrosion resistant gray paint |
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 6.096 CENTIMETER |
| Package 1 width | 7.112 CENTIMETER |
| Package 1 length | 15.494 CENTIMETER |
| Масса | 680.389 GRAM |
| Indivisible sale quantity | 1 |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
