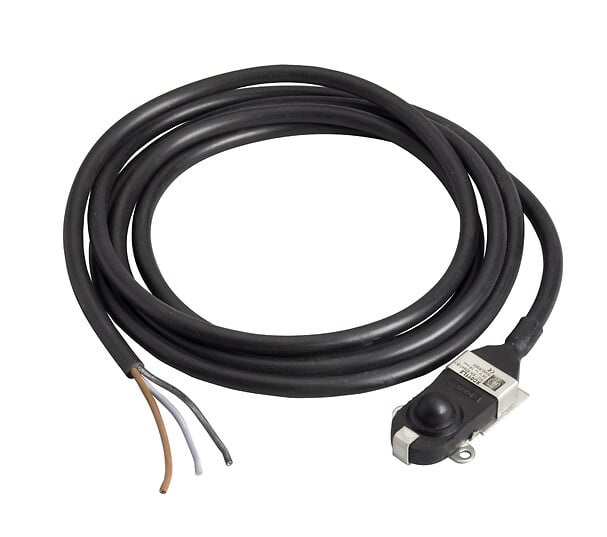

Telemecanique Sensors XC011L2
Miniature snap switch XC01, domed encased plunger, 2 m cable
Категории:
Технические характеристики
| Range of product | OsiSense XC |
|---|---|
| Series name | Special format |
| Product or component type | Microswitch |
| Device short name | XC0 |
| Detector design | Sealed |
| Head type | Plunger head |
| Fixing mode | By the body with steel, zinc passivated fixing supports |
| Movement of operating head | Linear |
| Type of operator | Domed plunger |
| Switch actuation | On end |
| Type of approach | Vertical approach |
| Electrical connection | A05 VVF cable |
| Cable composition | 3 x 0.75 mm² |
| Contact operation | Snap action |
| Материал | Silver contacts |
| Cable outer diameter | 7.6 MILLIMETER |
| IP degree of protection | IP66 |
| Marking | CE |
| Standards | IEC 60947-5-1 |
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 2.5 CENTIMETER |
| Package 1 width | 13.5 CENTIMETER |
| Package 1 length | 14 CENTIMETER |
| Масса | 0.167 KILOGRAM |
| Unit type of package 2 | S03 |
| Number of units in package 2 | 15 |
| Package 2 height | 30 CENTIMETER |
| Package 2 width | 30 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Масса | 3.074 KILOGRAM |
| Indivisible sale quantity | 1 |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
